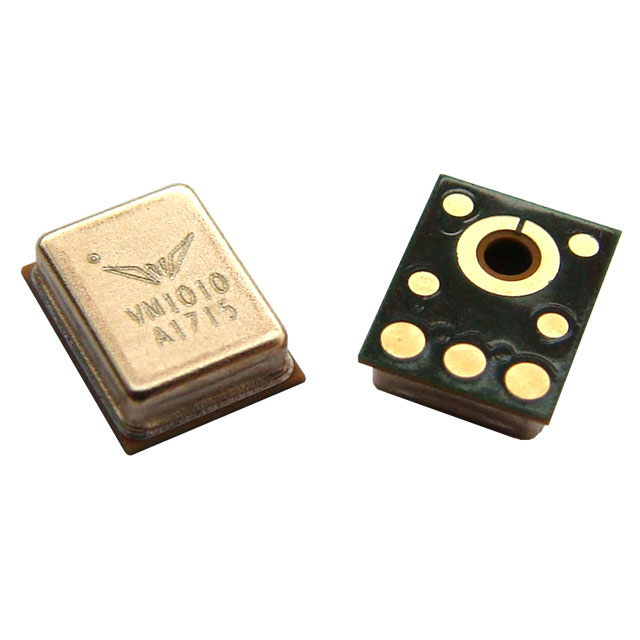

PMM-3738-VM1010-R
$1.94
MEMS Microphones PIEZO ZeroPower -38 DB 1.8 VDC
IN STOCK - SHIPS IMMEDIATELY
ADD TO CART or call us at 800-993-9047 for immediate assistance
ADD TO CART or call us at 800-993-9047 for immediate assistance
MEMS Microphones PIEZO ZeroPower -38 DB 1.8 VDC
Additional Information
| Category | Audio ProductsMicrophones |
|---|---|
| Brand | PUI Audio |
| Manufacturer | PUI Audio, Inc. |
| Series | Vesper |
| Packaging | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Type | Piezo MEMS |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10 kHz |
| Sensitivity | -38dB ±3dB @ 94dB SPL |
| S/N Ratio | 60dB |
| Impedance | 700 Ohms |
| Voltage - Rated | 1.8 V |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 110 µA |
| Port Location | Bottom |
| Ratings | IP50 – Dust Protection |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
| Full Description | PMM-3738-VM1010-R |
