OVM7692-RYAA – 0.3MP CMOS Image Sensor with Processor – OmniVision

Elevate your embedded vision applications with the OVM7692-RYAA CMOS image sensor from OmniVision. This highly integrated CameraCubeChip™ solution combines a 640×480 resolution sensor with an on-die image processor, delivering optimized performance for space-constrained designs. Experience reliable image capture with low-light sensitivity and simplified integration – backed by PCX’s industry-leading stock availability and technical support.

Key Features

• Resolution: 640H x 480V (0.3MP) active pixel array
• Technology: OmniPixel^®3-HS™ for enhanced low-light performance
• Frame Rate: Up to 30 frames per second
• Pixel Size: 1.75µm x 1.75µm
• Supply Voltage: 2.8V operation
• Integrated Processor: On-chip image processing eliminates external components

Technical Specifications

This image sensor IC features a compact 25-pin chip-scale package (25-CSP) measuring just 2.5mm x 2.5mm. The built-in processor handles key functions including automatic exposure control, white balance, and defect correction. Operating across an industrial temperature range of -30°C to 70°C (TJ), it provides robust performance in challenging environments. The sensor utilizes a rolling shutter mechanism optimized for consumer and industrial applications requiring minimal power and footprint.

Typical Applications

• Mobile device front-facing cameras
• IoT and smart home security modules
• Medical endoscopy and portable diagnostics
• Drone and robotics vision systems
• Automotive cabin monitoring

About OmniVision

OmniVision Technologies Inc. is a global leader in advanced digital imaging solutions, renowned for pioneering small-pixel technologies and integrated camera modules. With over two decades of innovation, OmniVision consistently delivers high-performance sensors for automotive, medical, and consumer markets.

The company’s CameraCubeChip™ platform integrates lens, sensor, and processor into single-chip solutions, setting industry standards for miniaturization and power efficiency. OmniVision maintains rigorous quality controls and holds key patents in pixel design and image processing, ensuring reliable performance in mission-critical applications.

About CMOS Image Sensors

CMOS image sensors convert light into electronic signals using complementary metal-oxide-semiconductor technology. Unlike older CCD sensors, they offer lower power consumption, integrated functionality, and cost-effective manufacturing. Modern CMOS sensors feature pixel-level amplification and advanced noise reduction.

These components are fundamental in devices requiring visual data capture – from smartphones to industrial machine vision systems. Integrated processors like those in the OVM7692-RYAA simplify system design by handling complex image pipeline tasks on-chip, reducing development time and BOM costs for compact electronics.

Packaging Options

Available in Tape & Reel (TR) for automated assembly or Cut Tape (CT) for prototyping needs. Contact PCX for reel quantities and custom packaging requirements.

Frequently Asked Questions

Question: Does this sensor support MIPI output?
Answer: Yes, the OVM7692-RYAA features a MIPI CSI-2 serial output interface compatible with most modern processors.

Question: What lens options are compatible?
Answer: It’s designed for fixed-focus lenses with 30°-65° FOV. PCX provides optical design support for integration.

Question: Is the IR filter included?
Answer: Yes, the CameraCubeChip™ includes an integrated IR cutoff filter for accurate color reproduction.

Question: Can it operate below 2.8V?
Answer: No, 2.8V ±5% is required. A power management IC is recommended for voltage regulation.

Question: Are evaluation kits available?
Answer: PCX provides development boards – contact our technical support team for details.

Question: How does OmniPixel3-HS™ improve performance?
Answer: It increases sensitivity by 20% over previous generations while reducing pixel crosstalk, enhancing image clarity in low-light conditions.

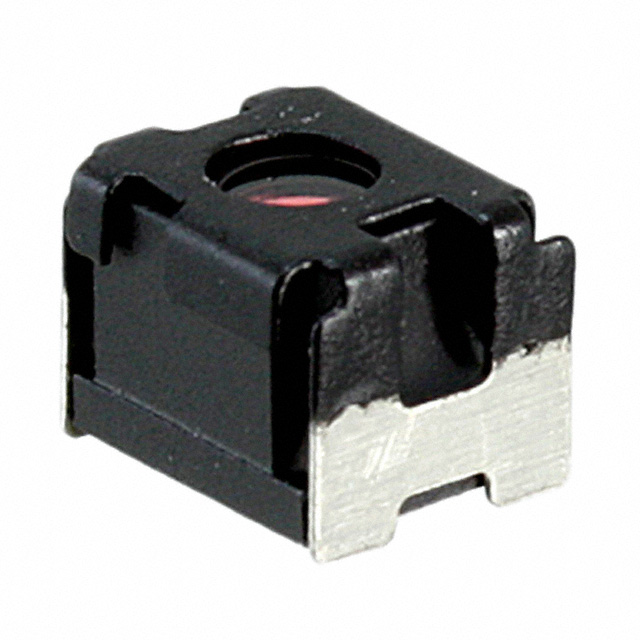

Note: Product images are representational. Refer to the OmniVision OVM7692-RYAA datasheet for exact specifications.
