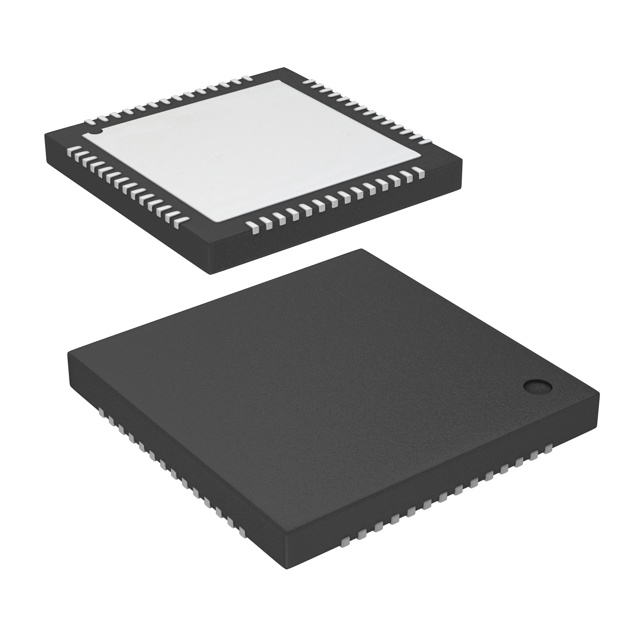

CY7C68013A-56LTXC
$8.86
Mcu, 8Bit, 48Mhz, Qfn-56; Product Range:Ez-Usb Family Fx2Lp Series Microcontrollers; Device Core:8051; Operating Frequency Max:48Mhz; Program Memory Size:-; No. Of Pins:56Pins; Ic Case/Package:Qfn; No. Of I/O S:24I/O S Rohs Compliant: Yes |Infineon CY7C68013A-56LTXC
ADD TO CART or call us at 800-993-9047 for immediate assistance
CY7C68013A-56LTXC – 8-bit USB 2.0 Microcontroller – Infineon Technologies
The CY7C68013A-56LTXC from Infineon Technologies is a high-performance USB microcontroller designed for seamless peripheral connectivity. Featuring an enhanced 8051 core and integrated USB 2.0 transceiver, this IC delivers flexible data transfer solutions while reducing development complexity. PCX ensures genuine Infineon components with reliable stock and expedited shipping.
Key Features
Core Processor: Enhanced 8051 at 48MHz clock speed
USB Compliance: Full-Speed/High-Speed USB 2.0 (480Mbps)
Memory: 16KB integrated RAM (ROMless architecture)
Voltage Range: 3.0V–3.6V (low-power operation)
I/O Capability: 24 programmable GPIO pins
Communication Interfaces: I2C, USART, and USB
Package: Compact 56-QFN (8x8mm) surface-mount design
Technical Details
Part of the EZ-USB FX
Additional Information
| Category | Integrated Circuits (ICs)EmbeddedApplication Specific Microcontrollers |
|---|---|
| Brand | Infineon Technologies |
| Manufacturer | Infineon Technologies |
| Series | EZ-USB FX2LP™ |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Applications | USB Microcontroller |
| Core Processor | 8051 |
| Program Memory Type | ROMless |
| Controller Series | CY7C680xx |
| RAM Size | 16K x 8 |
| Interface | I2C, USB, USART |
| Number of I/O | 24 |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-QFN (8×8) |
| Base Product Number | CY7C68013 |
| Full Description | CY7C68013A-56LTXC |
