Psoc, Arm Cortex-A9, 766Mhz, Bga-400; Product Range:Zynq Family 7000 Series Microprocessors; Cpu Speed:766Mhz; Core Architecture:Arm Cortex-A9; Mpu Case Style:Bga; No. Of Pins:400Pins; Msl:-; Ic Case/Package:Bga Rohs Compliant: Yes |Amd XC7Z020-2CLG400I

XC7Z020-2CLG400I – AMD Zynq®-7000 SoC with Dual ARM® Cortex®-A9 & Artix™-7 FPGA

Accelerate your embedded designs with the AMD XC7Z020-2CLG400I System-on-Chip (SoC). This versatile IC integrates a high-performance dual-core ARM Cortex-A9 processor with a feature-rich Artix-7 FPGA fabric, delivering exceptional processing flexibility and I/O capabilities for complex applications. Engineered for reliability and backed by PCX’s industry-leading shipping speeds and technical support.

Key Features

• Processing Power: Dual ARM® Cortex®-A9 MPCore™ CPUs @ 766MHz with CoreSight™
• FPGA Resources: Artix™-7 FPGA with 85K Logic Cells & 256KB RAM
• Robust Connectivity: Ethernet, USB OTG, CANbus, UART, SPI, I2C, SDIO & more
• Industrial Durability: Operates at -40°C to 100°C junction temperature
• High I/O Density: 130 programmable I/O pins

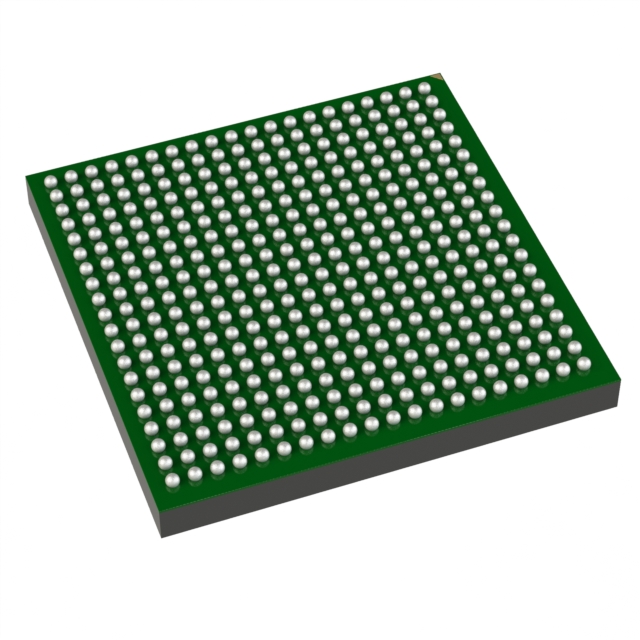

• Efficient Packaging: 400-CSPBGA (17x17mm) for space-constrained designs

Technical Details

This active-status IC combines MCU and FPGA architectures in AMD’s Zynq®-7000 series. The dual-core ARM processor handles real-time processing while the Artix-7 FPGA enables hardware customization. It includes DMA controllers for efficient data movement and supports extensive peripheral interfaces including EBI/EMI. Supplied in protective trays to ensure integrity during transit.

Typical Applications

• Industrial automation controllers & motor drives
• Embedded vision systems & medical imaging
• Communications infrastructure & network processing
• Automotive ADAS & infotainment systems
• Aerospace & defense embedded computing

About AMD

AMD (Advanced Micro Devices) is a global leader in high-performance computing and semiconductor innovation. With decades of industry expertise, AMD drives technological advancements in embedded systems, data centers, and adaptive computing solutions. Their rigorous quality control and architectural breakthroughs make them a trusted partner for mission-critical applications worldwide.

AMD’s Zynq® platform redefines embedded processing by unifying software programmability with hardware optimization. This synergy delivers unmatched scalability and power efficiency, cementing AMD’s reputation for delivering future-proof solutions across automotive, industrial, and communications markets.

About System-on-Chip (SoC) ICs

System-on-Chip technology integrates processors, memory, peripherals, and programmable logic into a single silicon die. This consolidation reduces system complexity, lowers power consumption, and accelerates development cycles compared to discrete component designs. SoCs enable sophisticated functionality in compact footprints, making them indispensable for modern electronics.

In embedded applications, SoCs provide the computational foundation for intelligent edge devices. Their hybrid architectures balance real-time processing with customizable hardware acceleration, allowing designers to optimize performance for specific tasks like sensor fusion, AI inference, or high-speed data acquisition while maintaining reliability in harsh environments.

Packaging Options

Available in protective factory trays for automated assembly processes. Contact PCX for reeled packaging alternatives or volume handling solutions.

Frequently Asked Questions

Q: Does this SoC support Linux operating systems?
A: Yes, the ARM Cortex-A9 cores are fully compatible with Linux distributions and other RTOS options.

Q: What voltage does the XC7Z020-2CLG400I operate at?
A: This device uses multiple voltage rails; consult the datasheet for specific requirements (typically 1.0V core).

Q: How does the FPGA integrate with the processor cores?
A: ARM cores and FPGA fabric share high-bandwidth AXI interconnects for low-latency data exchange.

Q: Can I use this for automotive temperature environments?
A: Absolutely. Its -40°C to 100°C operating range suits automotive, industrial, and outdoor applications.

Q: Where can I find development tools for this IC?
A: AMD provides Vivado® Design Suite for FPGA programming and SDK for ARM development. PCX offers technical guidance.

Q: Is the 256KB RAM sufficient for complex applications?
A: This represents on-chip memory; external DDR memory interfaces can be implemented via the FPGA or EBI controllers.

Disclaimer: Product images are representational only. Refer to official datasheets for exact specifications.
Download Full Datasheet

Order Today for Fast Delivery!

Leverage PCX’s guaranteed-stock advantage and same-day shipping – design with confidence using authentic AMD components. Contact our support team for technical assistance or volume pricing!
