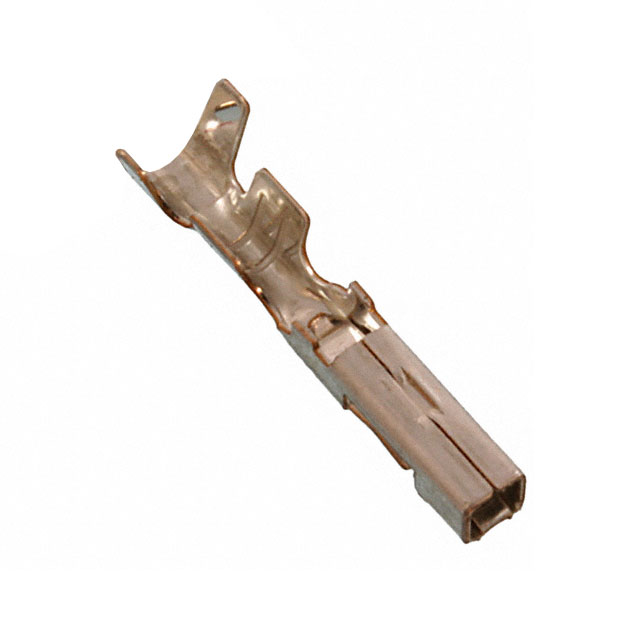

SYF-001T-P0.6 – Socket Contact for RCY Connectors – Crimp Termination, Tin Plated

This JST SYF-001T-P0.6 rectangular connector socket delivers reliable electrical connectivity for wire-to-board applications. Designed for efficient crimp termination and featuring tin plating for corrosion resistance, it ensures secure signal transmission in compact electronic assemblies. PCX guarantees authentic JST components with same-day shipping and dedicated technical support.

Key Features

• Manufacturer: JST (Japan Solderless Terminals)
• Contact Type: Socket (Female)
• Termination: Crimp style for 22-28 AWG wires
• Contact Finish: Tin plating for enhanced conductivity
• Series Compatibility: RCY rectangular connectors
• Packaging: Tape & Reel (TR) or Cut Tape (CT)

Technical Specifications

Part of JST’s RCY series contacts, this socket (SYF-001T-P0.6) enables secure wire connections in rectangular housings. The crimp termination accommodates 22-28 AWG wire gauges, while the tin finish ensures low contact resistance and oxidation protection. As an active-status component, it meets JST’s industry-standard performance requirements for consistent mating cycles.

Typical Applications

• Industrial control systems and PLCs
• Power supply units and distribution boards
• Automotive electronics modules
• Consumer appliance wiring harnesses
• LED lighting assemblies

About JST

JST (Japan Solderless Terminals) is a globally recognized leader in connector manufacturing with over 60 years of innovation. The company specializes in high-reliability interconnects for demanding industries including automotive, industrial automation, and consumer electronics. JST maintains rigorous quality certifications like ISO/TS 16949, ensuring consistent performance across all production batches.

Through continuous R&D investment, JST develops compact, high-efficiency solutions that meet evolving market needs. Their RCY series contacts exemplify this commitment, offering engineers durable connectivity with precise mechanical tolerances. PCX exclusively partners with JST to provide authentic components with full traceability.

About Rectangular Connector Contacts

Rectangular connector contacts form the core electrical interface in wire-to-board and board-to-board systems. These precision components ensure stable signal/power transmission by maintaining consistent mating force and conductivity across thousands of cycles. Socket contacts (female terminals) like the SYF-001T-P0.6 prevent short circuits by enclosing male pins while resisting vibration-induced disconnections.

Proper contact selection directly impacts system reliability—factors like current rating, plating material, and termination method must align with application requirements. Crimp-style contacts offer field-repairable connections with excellent strain relief, making them ideal for harness assembly. For mission-critical electronics, industry-standard components from manufacturers like JST prevent compatibility issues and reduce design risks.

Packaging Options

Available in Tape & Reel (TR) for automated assembly or Cut Tape (CT) for prototyping/low-volume needs. Specify packaging preference at checkout.

Frequently Asked Questions

Q: What crimping tool is recommended for SYF-001T-P0.6 contacts?
A: Use JST-approved crimpers like YRS-1209 for consistent, reliable terminations that meet spec.

Q: Is this contact compatible with non-JST housings?
A: No—designed exclusively for JST RCY series connectors to ensure proper retention and electrical safety.

Q: What temperature range does tin plating support?
A: Tin finishes typically operate from -40°C to +105°C, suitable for most industrial environments.

Q: Can I use 30 AWG wire with these contacts?
A: No—22-28 AWG is required. Smaller wires risk poor crimp retention and intermittent connections.

Q: Why choose crimp contacts over solder alternatives?
A: Crimping provides superior mechanical strength, faster assembly, and avoids thermal stress on components.

Q: Does PCX provide datasheets for this part?
A: Yes—download the official JST RCY series datasheet from our product page [link to PCXCo.com datasheet].

Note: Product images are representational. Refer to datasheets for exact dimensions.
