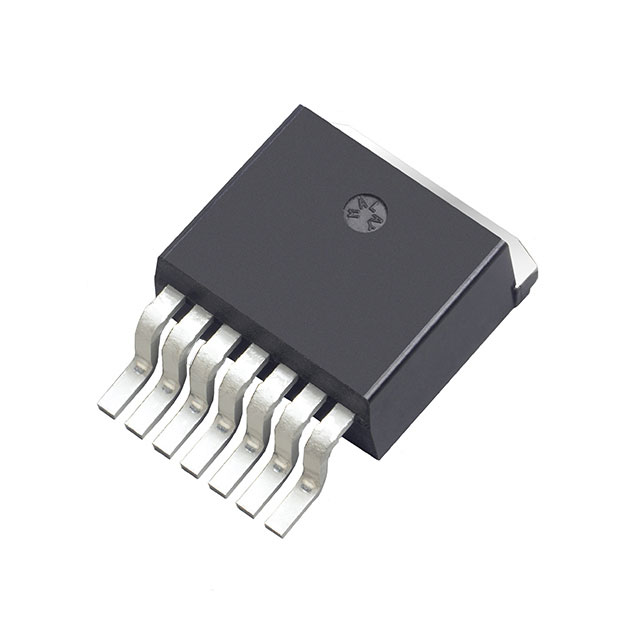

NVBG070N120M3S – 1200V Automotive Grade SiC MOSFET – onsemi
The NVBG070N120M3S from onsemi is a high-performance N-Channel Silicon Carbide (SiC) MOSFET engineered for demanding power conversion applications. Combining ultra-low switching losses with robust thermal characteristics, this AEC-Q101 qualified component delivers enhanced efficiency and reliability in automotive and industrial systems. PCX supplies this cutting-edge MOSFET with guaranteed stock availability and expedited shipping.
Key Features
Technology: Silicon Carbide (SiC) FET for superior thermal performance
Voltage Rating: 1200V Drain-to-Source (Vdss)
Current Capacity: 36A Continuous Drain Current (Id) @ 25°C
Low Resistance: 87mΩ Max Rds(on) @ 15A, 18V
Temperature Range: -55°C to +175°C (TJ) operation
Automotive Certified: AEC-Q101 qualified for harsh environments
Technical Specifications
This N-Channel MOSFET features an optimized gate charge (Qg) of 57nC @ 18V and input capacitance (Ciss) of 1230pF @ 800V, enabling high-frequency switching up to 172W power dissipation. The surface-mount D2PAK-7 package (TO-263-8) ensures efficient thermal management with drive voltages up to +22V/-10V. Its 4.4V max Vgs(th) provides stable threshold characteristics.
Typical Applications
Electric vehicle (EV) onboard chargers and DC-DC converters
Industrial motor drives and solar inverters
High-voltage power supplies and UPS systems
Renewable energy infrastructure
Automotive battery management systems
About onsemi
onsemi (Nasdaq: ON) is a global leader in intelligent power and sensing technologies, delivering innovative solutions for
Additional Information
| Category | Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs |
|---|---|
| Brand | onsemi |
| Mfr | onsemi |
| Packaging | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Rds On (Max) @ Id, Vgs | 87mOhm @ 15A, 18V |
| Vgs(th) (Max) @ Id | 4.4V @ 7mA |
| Gate Charge (Qg) (Max) @ Vgs | 57 nC @ 18 V |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1230 pF @ 800 V |
| Power Dissipation (Max) | 172W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Full Description | NVBG070N120M3S |
