Flash Memory, 2Gbit, -40 To 85Deg C; Flash Memory Type:Serial Nor; Memory Configuration:512M X 4Bit; Interfaces:Spi; Ic Case/Package:Tbga; No. Of Pins:24Pins; Clock Frequency Max:166Mhz; Access Time:-; Supply Voltage Min:1.7V Rohs Compliant: Yes |Micron MT25QU02GCBB8E12-0SIT

MT25QU02GCBB8E12-0SIT – 2Gbit SPI NOR Flash Memory – Micron Technology

This Micron MT25QU02GCBB8E12-0SIT Serial NOR Flash memory delivers high-density, non-volatile storage with low-power operation for embedded systems. Engineered for reliable performance in industrial environments, it features quad I/O support for accelerated data transfer and wide temperature tolerance. PCX guarantees authentic components with express shipping and dedicated technical support.

Key Features

• Capacity: 2Gbit (256M x 8 organization)
• Interface: SPI with Quad I/O support
• Speed: 133MHz clock frequency
• Voltage Range: Ultra-low 1.7V–2V operation
• Write Performance: 8ms (word) / 2.8ms (page)
• Robust Design: Industrial-grade –40°C to +85°C operating temperature
• Package: Surface-mount 24-TBGA (6x8mm)
• Compliance: RoHS certified

Technical Details

Organized as 256M x 8, this NOR flash utilizes Micron’s advanced 65nm floating-gate technology for reliable data retention. The SPI-Quad interface enables flexible communication with host controllers via single, dual, or quad data lines. The 24-TBGA package (6x8mm) offers compact footprint suitability for space-constrained designs. Extended write endurance and 20-year data retention ensure long-term reliability.

Typical Applications

• Industrial automation controllers
• Automotive telematics and infotainment
• IoT edge devices and sensors
• Network routers/switches firmware storage
• Medical monitoring equipment

About Micron Technology

Micron Technology is a global leader in advanced memory and storage solutions, serving industries from automotive to cloud computing. With over 40 years of innovation, Micron’s rigorous quality controls and cutting-edge semiconductor manufacturing processes set industry benchmarks for performance and reliability.

Their NOR flash portfolio combines low-power operation with high-speed access, making Micron the preferred choice for mission-critical embedded systems. Continuous R&D investment ensures compatibility with evolving industrial standards while maintaining backward design compatibility.

About Serial NOR Flash Memory

Serial NOR flash provides non-volatile storage with execute-in-place (XIP) capability, allowing microprocessors to run code directly from memory without RAM loading. This architecture simplifies designs while delivering instant-on functionality critical for real-time systems.

SPI-interface NOR flash dominates embedded applications due to its minimal pin count, scalability, and cost efficiency. Quad I/O variants like this Micron device quadruple throughput over standard SPI, bridging the gap between parallel interfaces and serial convenience. These memories serve as boot devices, firmware repositories, and configuration storage in virtually all modern electronics.

Packaging

Available in industry-standard trays for automated assembly. Contact PCX for reel packaging options and custom kitting requirements.

Frequently Asked Questions

Q: Does this support Quad SPI mode?
A: Yes, it features Quad I/O (QSPI) for 4x data transfer rates versus standard SPI.

Q: What is the typical write endurance?
A: Minimum 100,000 program/erase cycles per sector with 20-year data retention.

Q: Is it compatible with 3.3V systems?
A: No, this is a 1.8V nominal device (1.7V–2V range). Use level shifters for 3.3V interfaces.

Q: Can it operate in automotive environments?
A: While industrial-grade (-40°C to +85°C), it’s not AEC-Q100 certified. Consult Micron’s automotive-grade equivalents.

Q: How does NOR flash compare to NAND?
A: NOR offers faster random access and XIP capability ideal for code storage, while NAND provides higher density for data.

Q: Is the datasheet available?
A: Yes: Download Micron MT25QU02GCBB8E12-0SIT Datasheet

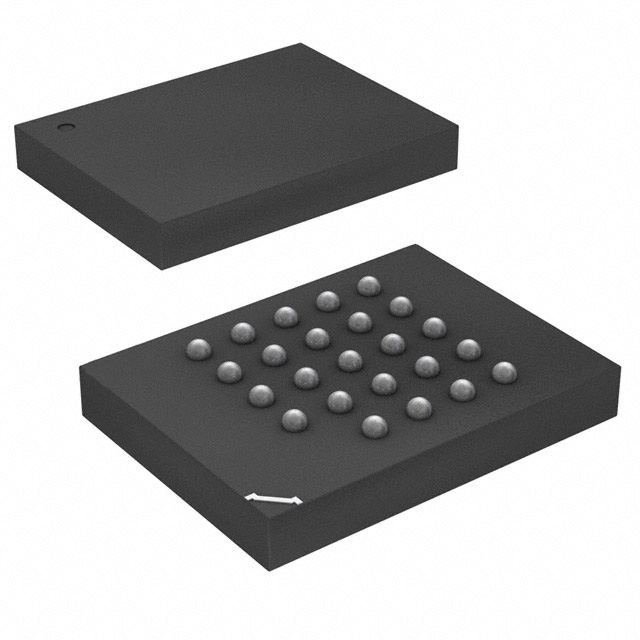

Note: Product images are representational. Refer to datasheet for exact dimensions.
