MP3V5050GC6U

Pressure Sensor, 50Kpa, Sop; Pressure Type:Gauge; Sensitivity, V/P:54Mv/Kpa; Operating Pressure Min:0Kpa; Operating Pressure Max:50Kpa; Supply Voltage Min:2.7V; Supply Voltage Max:3.3V; Sensor Case Style:Sop; No. Of Pins:8Pins; Rohs Compliant: Yes |Nxp MP3V5050GC6U

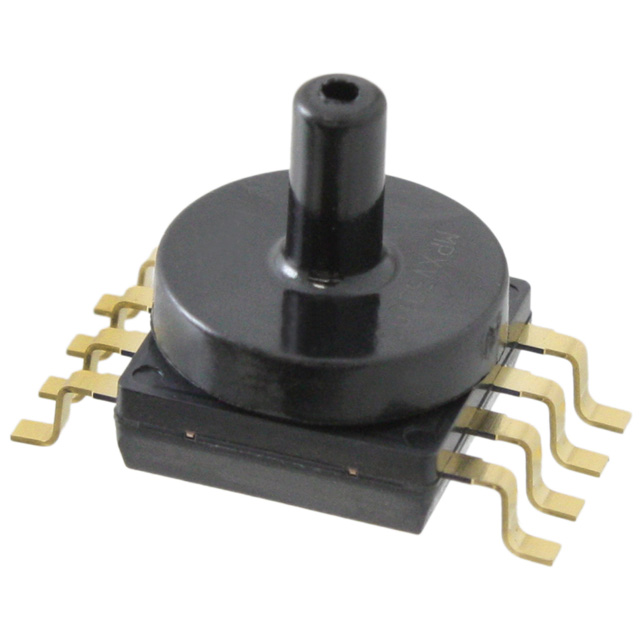

MP3V5050GC6U – 50 kPa Gauge Pressure Sensor – Analog Output – NXP Semiconductors

The MP3V5050GC6U from NXP Semiconductors is a high-precision board-mount pressure sensor delivering reliable gauge pressure measurement for industrial and embedded systems. Designed for demanding environments, this surface-mount device features temperature compensation, analog voltage output, and robust performance across a wide operating range. Trust PCX for genuine NXP components with guaranteed stock and rapid dispatch.

Key Features

Pressure Range: 0 to 50 kPa (7.25 PSI) operating / 200 kPa (29 PSI) max
Analog Output: 0.06V to 2.82V linear signal
High Accuracy: ±2.5% full-scale span
Low Voltage Operation: 2.7V–3.3V supply
Temperature Compensated: Stable performance from -40°C to +125°C
Barbed Port: 3.17mm male tube connector for secure tubing attachment

Technical Specifications

Manufacturer Series: MP3V5050
Pressure Type: Vented Gauge
Output Type: Analog Voltage
Interface: Gull Wing surface-mount terminals
Package: 8-SMD with top port (SOP-8)
Compliance: RoHS certified
Status: Active production

Typical Applications

Medical ventilators and respiratory equipment
HVAC system pressure monitoring
Industrial process control systems
Portable instrumentation devices
Automotive manifold pressure sensing

About NXP Semiconductors
NXP Semiconductors is a global leader in secure connectivity solutions for embedded applications, renowned for innovation in automotive, industrial, and IoT markets. With decades of semiconductor expertise, NXP consistently delivers high-reliability components engineered to meet stringent industry standards.

The company’s pressure sensor portfolio combines precision MEMS technology with advanced signal conditioning, ensuring accurate environmental sensing in critical systems. NXP’s commitment to quality control and long-term product support makes their components a trusted choice for design engineers worldwide.

About Pressure Sensors
Pressure sensors convert physical force into measurable electrical signals, enabling critical monitoring and control functions across industries. Gauge pressure sensors, like the MP3V5050 series, measure pressure relative to atmospheric conditions, making them ideal for applications involving fluid/gas flow, altitude detection, and environmental systems.

Modern board-mount sensors integrate amplification and temperature compensation directly into compact packages, simplifying design while improving accuracy. These components are fundamental to automation, safety systems, and portable devices where real-time pressure feedback ensures operational efficiency and user safety.

Packaging Options
Available in manufacturer Tube packaging for automated assembly processes. Contact PCX for reeled options or custom quantities.

FAQs
Q: What tubing size does the barbed port accept?
A: The 3.17mm (0.13″) barbed port accommodates standard 1/8″ ID tubing.

Q: Is calibration required before use?
A: No – the sensor is factory-calibrated and temperature compensated for plug-and-play operation.

Q: Can this measure negative pressure?
A: As a vented gauge sensor, it detects positive pressure only. For vacuum sensing, consider absolute pressure variants.

Q: What’s the response time of this sensor?
A: Typical step response is <1.0 ms per NXP’s datasheet (available at PCXCo.com).

Q: Does PCX provide technical support for integration?
A: Yes – our engineering team offers datasheet guidance and application assistance for all NXP components.

Q: Is the output ratiometric to supply voltage?
A: Yes – output scales linearly with input voltage within the 2.7V–3.3V operating range.
