EN5365QI

EN5365QI – 6A Non-Isolated PoL DC-DC Converter Module – Altera Enpirion® 5300 Series
The EN5365QI from Altera (now Intel® Programmable Solutions Group) is a high-efficiency, non-isolated Point-of-Load (PoL) power module designed to deliver precise voltage regulation for space-constrained commercial electronics. Engineered for reliability and performance, this compact solution simplifies power design while offering integrated protection features—ensuring stable operation in demanding IT environments. PCX supplies this module with guaranteed stock for rapid shipment and dedicated technical support.

Key Features

High Current Output: Delivers up to 6A continuous current
Wide Input Range: 2.375V to 5.5V input voltage
Adjustable Output: 0.75V to 3.3V output (user-configurable)
Exceptional Efficiency: Up to 93% power conversion efficiency
Robust Protections: OCP, OTP, OVP, SCP, UVLO, and remote On/Off control
Compact Footprint: Surface-mount 58-PowerQFN package (12.0mm x 10.0mm)

Technical Specifications
This single-output DC-DC converter operates across a -40°C to 85°C temperature range, making it suitable for commercial-grade applications. Its non-isolated design minimizes component count while the Enpirion® 5300 architecture ensures low noise and high transient response. The module integrates power MOSFETs, inductors, and controllers into a unified 58-QFN package, simplifying PCB layout. Control is managed via an active-high enable pin with remote on/off capability.

Typical Applications

FPGA and ASIC power delivery in embedded systems
Server/Data storage equipment
Networking routers and switches
Telecommunications infrastructure
Industrial computing modules

About Altera (Intel® PSG)
Altera, now part of Intel’s Programmable Solutions Group, is a global leader in high-performance programmable logic devices and power management ICs. The Enpirion® series exemplifies their commitment to integrating complex power topologies into ultra-compact, reliable modules. With decades of innovation in semiconductor technology, Altera solutions are trusted for critical applications requiring precision and efficiency.
Their expertise in power architecture minimizes design risks while optimizing thermal performance and EMI characteristics. Altera’s rigorous testing and quality control ensure compliance with industry standards, making their components a benchmark for stability in commercial electronics.

About Board-Mount DC-DC Converters
Non-isolated Point-of-Load (PoL) converters like the EN5365QI deliver localized voltage transformation directly to high-current ICs (e.g., processors, FPGAs). By placing regulation near the load, they minimize voltage drop and noise—critical for maintaining signal integrity in high-speed digital systems. These modules replace discrete power designs, reducing development time and BOM complexity.
Modern PoL solutions prioritize energy efficiency and miniaturization without compromising output stability. Their integrated protections safeguard downstream components from electrical faults, making them indispensable in servers, communication hardware, and embedded platforms where power density and reliability are paramount.

Packaging Options
Available in Tape & Reel (TR) for automated assembly or Cut Tape (CT) for prototyping needs. Contact PCX for reel quantities or custom packaging requests.

Frequently Asked Questions
Q: Is this part still usable despite being marked obsolete?
A: Yes, PCX maintains stock of obsolete components for legacy system support. Availability is guaranteed for immediate shipment.

Q: What protections does the OCP/OTP/OVP feature provide?
A: Over-Current (OCP), Over-Temperature (OTP), and Over-Voltage (OVP) Protection automatically shut down the module during fault conditions to prevent damage.

Q: Can the output voltage be adjusted below 0.75V?
A: No, 0.75V is the minimum configurable output. Refer to the datasheet for resistor programming details.

Q: Is an external inductor required?
A: No, the EN5365QI is a fully integrated module with internal magnetics.

Q: What does “Non-Isolated” mean for this converter?
A: Input and output share a common ground, making it suitable for applications where galvanic isolation isn’t required (e.g., single-board systems).

Q: Where can I find design guidelines for this PoL module?
A: Download the full datasheet from PCXCo.com for layout recommendations, thermal management, and application circuits.

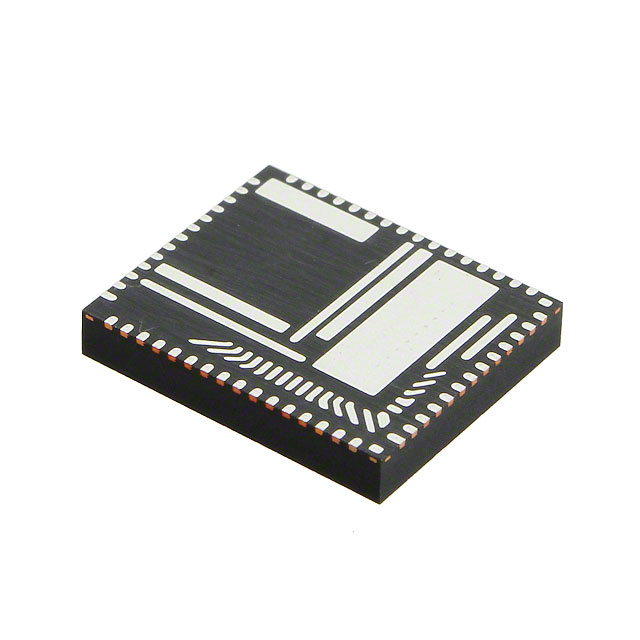

Note: Product image is representational. Refer to datasheet for exact specifications.
