EN25QH64A-104HIP – Serial NOR Flash – ESMT

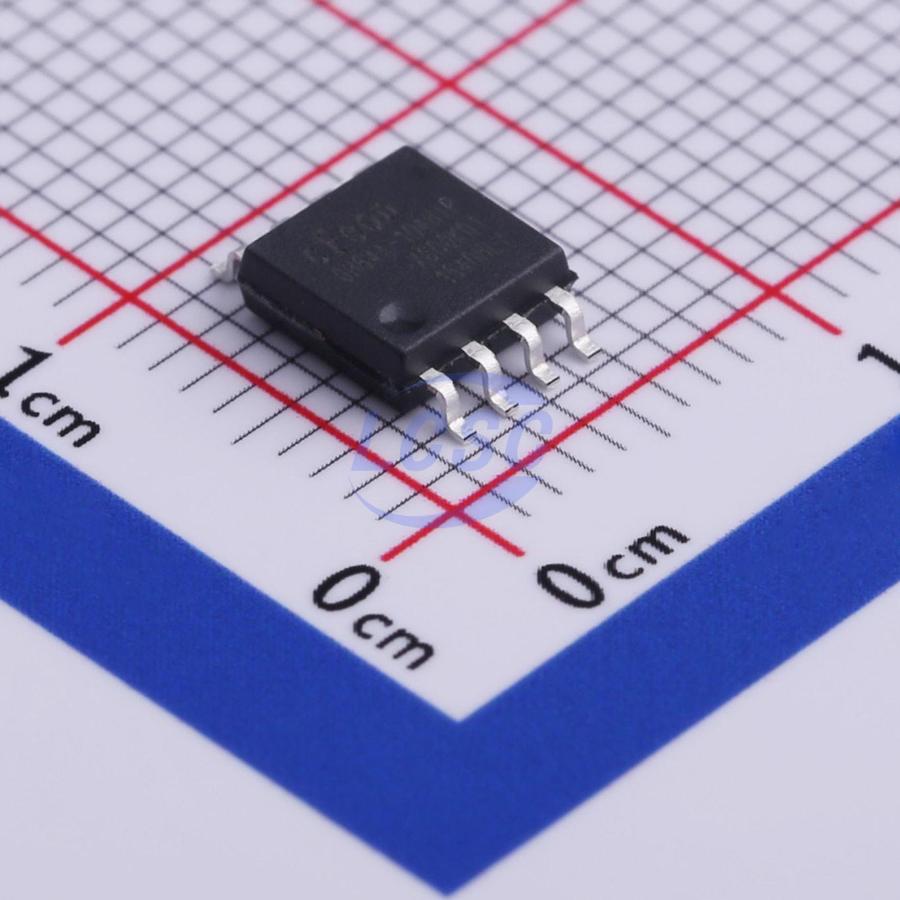

The ESMT EN25QH64A-104HIP is a 64Mbit (8M x 8) serial NOR Flash memory with a Quad SPI interface, operating at up to 104MHz over a 2.7V-3.6V supply in an 8-pin SOP (200 mil) package. Available now for RFQ.

The ESMT EN25QH64A-104HIP is a 64 Megabit (8,192K-byte) serial NOR Flash memory device from Elite Semiconductor Microelectronics Technology Inc. (ESMT). Part of the EN25QH family, it provides 8M x 8 organization across 32,768 pages of 256 bytes each and supports Standard SPI, Dual SPI, and Quad SPI operation with serial clock frequencies up to 104MHz. This makes it well suited for code-shadowing, boot, and non-volatile data storage in space-constrained, cost-sensitive embedded designs.

The “-104HIP” ordering option designates the 104MHz fast-read speed grade (H) in an 8-pin 200 mil SOP package, with an industrial temperature range (I) and a Pb-free, RoHS / Halogen-Free / REACH-compliant packaging content (P).

Key Features

• 64 Mbit (8 MByte / 8M x 8) serial NOR Flash density
• Standard SPI, Dual SPI, and Quad SPI interface support (SPI Mode 0 and Mode 3)
• Fast read SPI clock frequency up to 104 MHz
• Single supply voltage range of 2.7V to 3.6V
• Memory organized as 32,768 pages of 256 bytes; programmable 1 to 256 bytes per Page Program operation
• Uniform 4-Kbyte sector architecture (2,048 sectors); 32-Kbyte and 64-Kbyte block erase
• Minimum 100,000 program/erase cycles per sector/block endurance
• 20-year data retention
• 8-pin SOP (200 mil body width) package, RoHS / Halogen-Free / REACH-compliant, Pb-free
• Industrial operating temperature range (-40 C to +85 C)

Applications

• Networking and telecom equipment (boot and configuration storage)
• Industrial control and automation systems
• Consumer electronics and IoT devices
• Set-top boxes, routers, and embedded code storage
• Firmware / FPGA configuration and non-volatile data logging

Why Source EN25QH64A-104HIP from Pacific Component Xchange

The EN25QH64A-104HIP can be subject to allocation and limited availability through standard supply channels, making it a part that engineering and procurement teams often struggle to source on short lead time. Pacific Component Xchange is an independent distributor specializing in hard-to-find, allocated, and obsolete memory, and we offer competitive RFQ-based pricing on volume orders.

Every order is backed by our authenticity and quality-assurance process, with inspection and traceability to help mitigate counterfeit risk on scarce devices. We ship globally to manufacturing and engineering teams that need reliable access to legacy and low-availability components. Request a quote (RFQ) today for current pricing and lead time on the EN25QH64A-104HIP.
