DA14531MOD-00F01002
$4.01
Bluetooth Low Energy Module Class II 1.8V to 3.6V 1Mbps T/R
ADD TO CART or call us at 800-993-9047 for immediate assistance

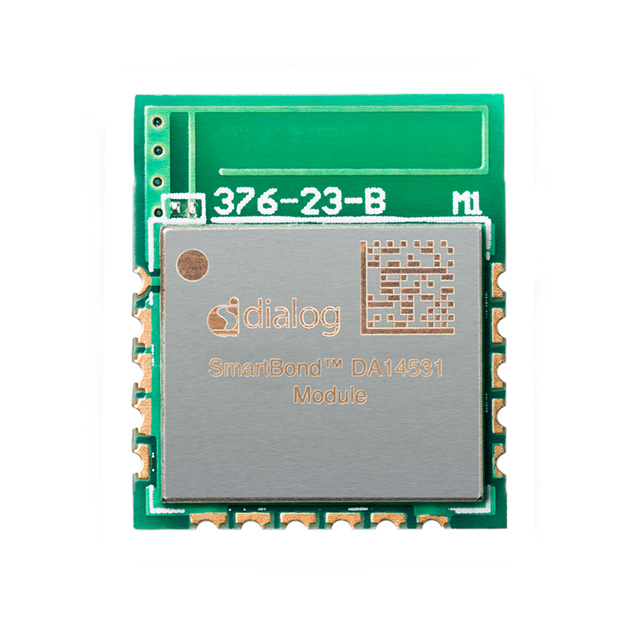

**DA14531MOD-00F01002 – Bluetooth 5.1 Low Energy Module with Integrated Antenna – Renesas Electronics**
The DA14531MOD-00F01002 from Renesas Electronics is a complete Bluetooth® Low Energy (BLE) module engineered for ultra-low-power IoT and connected devices. Featuring an integrated trace antenna and pre-certified RF design, this surface-mount module simplifies wireless implementation while minimizing development time. PCX delivers genuine Renesas components with reliable inventory and expedited shipping to accelerate your prototyping and production.
**Key Features**
– **Bluetooth 5.1 Compliance:** Supports 1Mbps data rate with improved coexistence and location services.
– **Ultra-Low Power:** Only 2mA (RX) / 4mA (TX) current consumption; operates from **1.8V–3.3V**.
– **Integrated Antenna:** Onboard trace antenna eliminates external RF components.
– **Robust Connectivity:** -93dBm sensitivity and 2.2dBm output power for reliable links.
– **Rich Interfaces:** GPIO, I²C, SPI, UART, and ADC for sensor/peripheral integration
Additional Information
| Category | RF and WirelessRF Transceiver Modules and Modems |
|---|---|
| Brand | Renesas Electronics |
| Mfr | Renesas Electronics Corporation |
| Series | SmartBond™ |
| Packaging | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| DigiKey Programmable | Verified |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.1 |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Power - Output | 2.2dBm |
| Sensitivity | -93dBm |
| Serial Interfaces | ADC, GPIO, I2C, SPI, UART |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | DA14531 |
| Memory Size | 128kB Flash, 144kB ROM, 48kB RAM |
| Voltage - Supply | 1.8V ~ 3.3V |
| Current - Receiving | 2mA |
| Current - Transmitting | 4mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-SMD Module |
| Base Product Number | DA14531 |
| Full Description | DA14531MOD-00F01002 |
