CYBLE-022001-00 – Flash Memory – Infineon Technologies

Ble Module, V.4.1, 2.4Ghz, Single Mode; Bluetooth Version:Bluetooth 4.1; Supply Voltage Min:1.8V; Supply Voltage Max:5.5V; Signal Range Max:100M; Data Rate:1Mbps; Bluetooth Class:Class 2; Receive Sensitivity:-87Dbm; Operating Rohs Compliant: Yes |Infineon CYBLE-022001-00

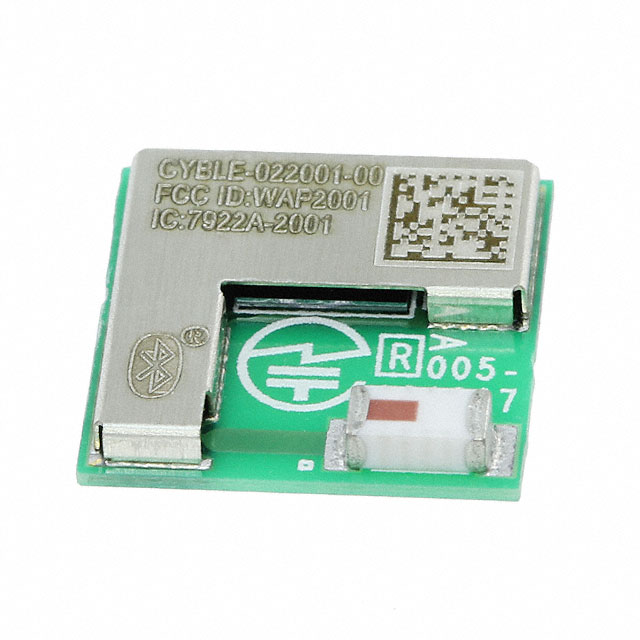

CYBLE-022001-00 – Bluetooth 4.1 RF Transceiver Module with 128kB Flash – Infineon Technologies

This EZ-BLE™ PRoC™ RF transceiver module from Infineon Technologies delivers robust Bluetooth v4.1 connectivity in a compact surface-mount package. Ideal for IoT and embedded wireless designs, it features integrated memory, low power consumption, and industrial-grade temperature tolerance. PCX ensures authentic Infineon components with same-day shipping and technical support.

Key Features

Bluetooth v4.1 Protocol at 2.4GHz frequency
128kB Flash + 16kB SRAM for data storage and processing
Ultra-Low Power: 15.6mA transmitting / 16.4mA receiving
Wide Voltage Range: 1.8V–4.5V operation
Integrated Chip Antenna saves board space
Industrial Temperature Range: -40°C to 85°C

Technical Details
Housed in a 21-SMD module, this RF transceiver achieves 1Mbps data rates with 3dBm output power and -91dBm sensitivity. It supports I²C, SPI, and UART interfaces for seamless microcontroller integration. The obsolete-status component remains available through PCX’s inventory for legacy designs and prototyping needs.

Typical Applications

Wearable health monitors and fitness trackers
Smart home automation controllers
Industrial sensor networks
Battery-powered IoT edge devices
Wireless remote controls

About Infineon Technologies
Infineon Technologies is a global semiconductor leader with 50+ years of innovation in power systems, security, and IoT solutions. Their components are renowned for automotive-grade reliability and industrial durability, serving sectors from renewable energy to medical technology.

Infineon’s EZ-BLE™ PRoC™ series exemplifies their expertise in integrated wireless systems, combining radio performance with programmable flexibility. Rigorous testing ensures compliance with international standards, making their modules trusted solutions for mission-critical applications worldwide.

About RF Transceiver Modules
RF transceiver modules integrate radio transmitters, receivers, antennas, and protocol stacks into single packages, dramatically simplifying wireless implementation. These components handle complex RF signaling, modulation, and compliance testing – reducing development risks and accelerating product launches.

Bluetooth modules like this Infineon solution enable short-range device networking with minimal power consumption. They’re fundamental for creating interconnected smart devices in consumer electronics, industrial automation, and healthcare systems where reliability and compact form factors are essential.

Packaging Options
Available in Tape & Reel (TR), Cut Tape (CT), and Digi-Reel® formats for prototyping or volume production.

FAQs
Question: Is this module Bluetooth Low Energy
