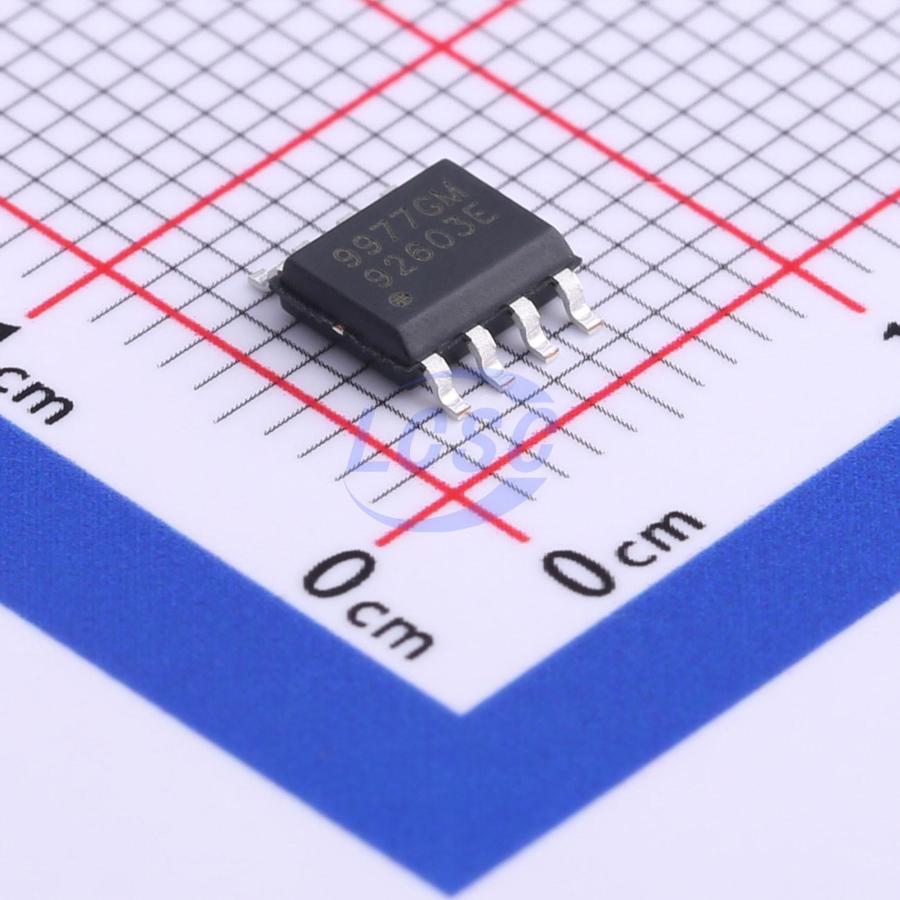

AP9977GM – Dual N-Channel Power MOSFET – APEC (Advanced Power Electronics)

The AP9977GM is a dual N-channel enhancement-mode power MOSFET from Advanced Power Electronics Corp. (APEC), rated 60V and 3.3A in a compact SO-8 package. Available now on an RFQ basis from Pacific Component Xchange.

The AP9977GM from Advanced Power Electronics Corp. (APEC) is a dual N-channel enhancement-mode power MOSFET housed in a RoHS-compliant, halogen-free SO-8 surface-mount package. It pairs two independent N-channel MOSFETs in a single small-outline footprint, making it well suited for low-voltage DC/DC conversion and general load-switching applications where board space is at a premium.

Designed with low on-resistance, fast switching performance, and a simple gate-drive requirement, the AP9977GM delivers a cost-effective, ruggedized solution for power-management designs. Pacific Component Xchange stocks and sources this hard-to-find part on a request-for-quote basis for buyers who cannot secure it through authorized distribution.

Key Features

• Dual N-channel enhancement-mode power MOSFET (two devices per package)
• Drain-source breakdown voltage (BV_DSS): 60V
• Continuous drain current (I_D): 3.3A at T_A=25°C (2.7A at T_A=70°C)
• Static drain-source on-resistance R_DS(ON): 100mΩ max at V_GS=10V, I_D=3A (125mΩ max at V_GS=4.5V, I_D=2A)
• Pulsed drain current (I_DM): 20A
• Gate-source voltage rating (V_GS): ±25V
• Gate threshold voltage V_GS(th): 1V to 3V
• Total gate charge Q_g: 6nC typical
• Input capacitance C_iss: 510pF typical
• Total power dissipation: 2W at T_A=25°C
• Operating junction temperature range: -55°C to +150°C
• RoHS-compliant, halogen-free SO-8 (SOIC-8) package

Applications

• Low-voltage DC/DC conversion
• General-purpose load switching
• Battery-powered and portable equipment
• Power management for consumer electronics
• Motor and relay drive circuits

Why Source AP9977GM from Pacific Component Xchange

The AP9977GM is an RFQ-only part with little to no authorized-distributor availability. As an independent distributor specializing in hard-to-find and obsolete power-management ICs and discrete components, Pacific Component Xchange helps engineers and procurement teams secure scarce devices like the AP9977GM when traditional channels come up empty. Every order is backed by our authenticity and quality-assurance commitment, with global shipping to keep your production lines moving. Request a quote today and our sourcing specialists will respond promptly with availability, lead time, and pricing.
