AP2531GY-HF – Complementary Dual N+P Channel MOSFET – APEC (Anpec)

The AP2531GY-HF from APEC (Advanced Power Electronics Corp.) is a complementary dual N-channel + P-channel MOSFET rated at 16V in a compact SOT-26 surface-mount package. This is a hard-to-find / obsolete part available by RFQ.

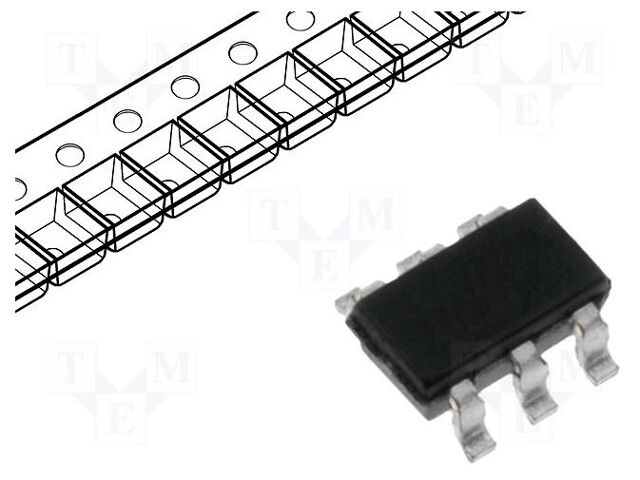

The AP2531GY-HF is a complementary dual MOSFET from APEC (Advanced Power Electronics Corp.), integrating one N-channel and one P-channel enhancement-mode power MOSFET in a single space-saving SOT-26 (SOT-23-6) surface-mount package. The complementary pairing makes this device well suited to compact load-switching, level-shifting, and small motor or power-management circuits where board area is at a premium. The “-HF” suffix denotes a Pb-free (halogen-free / lead-free plating) RoHS-compliant device.

The AP2531GY-HF is characterized by low on-resistance and low gate-charge drive, enabling efficient switching with minimal conduction loss. Because this part is now obsolete with little to no authorized-distributor stock, Pacific Component Xchange offers it on a Request-For-Quote basis to support legacy designs and end-of-life production runs.

Key Features

• Complementary configuration: one N-channel and one P-channel MOSFET in a single package
• Drain-Source voltage: +16V (N-channel) / -16V (P-channel)
• Continuous drain current: 3.5A (N-channel) / -2.5A (P-channel)
• On-resistance R_DS(on): 0.058 Ω (N-channel) / 0.13 Ω (P-channel)
• Power dissipation: 1.14W
• Low gate-charge drive and low on-resistance
• Pb-free / halogen-free (HF) RoHS-compliant plating
• Compact SOT-26 (SOT-23-6) surface-mount package

Applications

• Load switching and high-side / low-side switching
• Level-shifting and logic-interface circuits
• DC-DC converters and power-management modules
• Small motor drive and H-bridge stages
• Portable and battery-powered consumer electronics
• Legacy and end-of-life board repair / production support

Why Source AP2531GY-HF from Pacific Component Xchange

The AP2531GY-HF is an obsolete, hard-to-find component with limited authorized-distributor availability. Pacific Component Xchange specializes in sourcing scarce and end-of-life power-management semiconductors for engineers, OEMs, and repair operations that need to keep proven designs in production. Every part is screened for authenticity and traceability, and we ship globally. Submit an RFQ today for current pricing, available quantity, date codes, and lead time on the AP2531GY-HF.
