AD620SQ/883B – Integrated Circuit – Analog Devices

AD620SQ/883B – Low Power, High Accuracy Instrumentation Amplifier – Analog Devices

Optimize precision measurements with the AD620SQ/883B instrumentation amplifier from Analog Devices. This high-reliability IC delivers exceptional signal conditioning for sensitive applications while consuming minimal power. Engineered for demanding environments, it ensures accurate amplification of low-level signals with ultra-low noise and drift, making it ideal for industrial, medical, and aerospace systems.

Key Features

• Ultra-Low Input Bias Current: 500 pA minimizes signal errors
• High Accuracy: 30 µV input offset voltage
• Wide Supply Range: 4.6V to 36V operation
• Low Power Consumption: 900µA supply current
• Extended Temperature Range: -55°C to 125°C
• Robust Bandwidth: 1 MHz with 1.2V/µs slew rate

Technical Details

This military-grade instrumentation amplifier features a single-circuit design in an 8-CERDIP package with through-hole mounting. Its high common-mode rejection ratio (CMRR) ensures signal integrity in noisy environments. The device supports rail-to-rail output swing with 18mA channel current capability, maintaining stability across its full operating temperature range (-55°C to 125°C). Part of Analog Devices’ AD620 series, it meets MIL-PRF-38535 Class B standards for critical applications.

Typical Applications

• Medical instrumentation and patient monitoring systems
• Industrial process control and sensor interfaces
• Aerospace and defense avionics
• Precision data acquisition systems
• Bridge amplification in strain gauges and transducers

About Analog Devices

Analog Devices Inc. (ADI) is a global leader in high-performance analog and mixed-signal ICs, with over 50 years of innovation in signal processing technology. Their components are renowned for precision, reliability, and cutting-edge design, serving mission-critical sectors including healthcare, industrial automation, and communications.

ADI maintains rigorous quality standards, with the AD620SQ/883B meeting MIL-STD-883 compliance for extended reliability in harsh conditions. Their commitment to research and development ensures continuous advancement in amplifier technology, making them a trusted partner for engineering solutions worldwide.

About Instrumentation Amplifiers

Instrumentation amplifiers are specialized ICs designed to amplify small differential signals while rejecting common-mode noise, making them essential in precision measurement systems. Unlike standard op-amps, they feature matched internal resistors and high input impedance, ensuring minimal signal distortion and accurate gain control.

These amplifiers are fundamental in applications requiring high CMRR and low DC errors, such as biomedical sensors, industrial weigh scales, and test equipment. Their ability to extract weak signals from noisy environments makes them indispensable for engineers developing high-accuracy electronic systems.

Packaging Options

Available in protective Tube packaging for secure handling and automated assembly. Contact PCX for volume-specific packaging solutions.

Frequently Asked Questions

Question: Is the AD620SQ/883B RoHS compliant?
Answer: This specific /883B version is designed for military applications and not RoHS compliant. For commercial grades, check our AD620 series listings.

Question: What makes instrumentation amplifiers different from operational amplifiers?
Answer: Instrumentation amps provide fixed gain with superior common-mode rejection, higher input impedance, and lower output noise compared to standard op-amps configured in differential mode.

Question: Can this IC handle single-supply operation?
Answer: Yes, it operates from 4.6V to 36V in single or dual-supply configurations.

Question: Does PCX provide datasheets for this component?
Answer: Yes, download the full AD620SQ/883B datasheet from our product page at PCXCo.com.

Question: Is this suitable for high-vibration environments?
Answer: Absolutely. The CERDIP package and military-grade construction ensure resilience in mechanically stressful conditions.

Question: Can I request samples before volume orders?
Answer: Contact PCX support for sample availability – we offer expedited options for qualified customers.

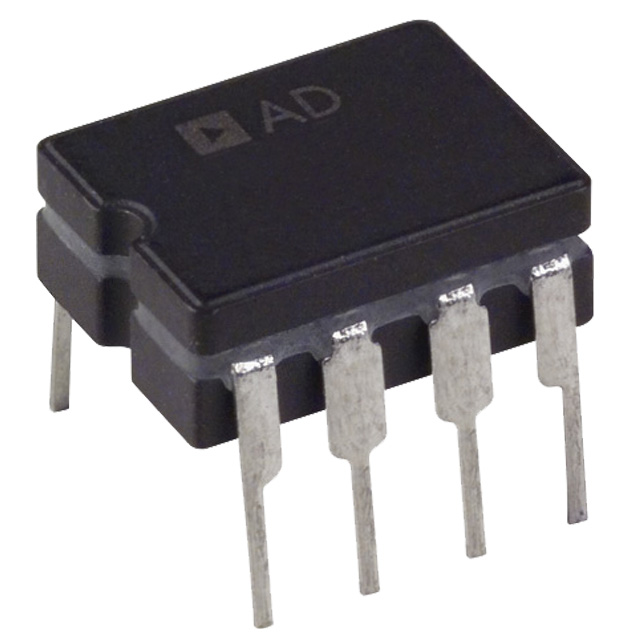

⚠️ Note: Product images are representational. Verify specifications in the datasheet.

Order Your AD620SQ/883B Today!

Experience PCX’s commitment to quality: Genuine Analog Devices components, same-day shipping, and dedicated technical support. Secure your high-reliability instrumentation amplifier now for mission-critical designs – limited stock available!

Order at PCXCo.com for Fast Delivery!
