826845-3
$1.64
Conn Power PIN 10 POS 6.35mm Solder ST Thru-Hole 10 Terminal 1 Port
ADD TO CART or call us at 800-993-9047 for immediate assistance

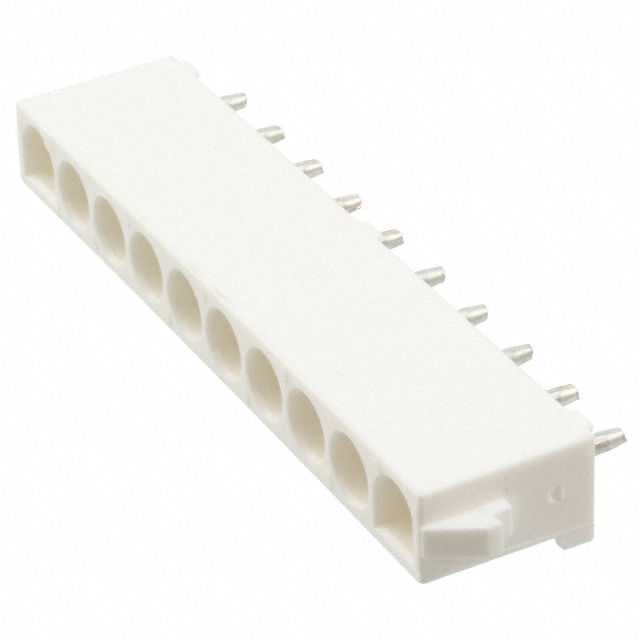

826845-3 – 10-Position Male Pin Header, 6.35mm Pitch – TE Connectivity
This TE Connectivity Universal MATE-N-LOK male pin header provides robust and reliable board-to-wire connections for industrial and commercial applications. Engineered for durability with through-hole solder termination, it ensures secure mating and consistent signal transmission. PCX supplies this industry-standard connector with guaranteed authenticity and rapid shipping.
Key Features
10 Positions in a single-row configuration
6.35mm (0.250″) mating pitch for standardized compatibility
Shrouded 4-wall design for pin protection and alignment
Copper alloy contacts with tin plating for corrosion resistance
Through-hole mounting with solder termination
Locking ramp fastening for vibration-resistant connections
Technical Specifications
Connector Type: Male pin header
Termination: Solder, 0.146″ (3.70mm) post length
Insulation Height: 0.581″ (14.75mm)
Contact Finish: Tin (mating and post surfaces)
Insulation Color: Natural
Style: Board to cable/wire
Common Applications
Industrial control panels and PLC systems
Power supply units and distribution boards
Test and measurement equipment
Additional Information
| Category | Connectors, InterconnectsRectangular ConnectorsHeaders, Male Pins |
|---|---|
| Brand | TE Connectivity |
| Mfr | TE Connectivity AMP Connectors |
| Series | Universal MATE-N-LOK |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Post | 0.146" (3.70mm) |
| Insulation Height | 0.581" (14.75mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Applications | General Purpose |
| Base Product Number | 826845 |
| Full Description | 826845-3 |
