6200T5LC

Overview

The 6200T5LC from VCC is a high-performance surface mount LED indicator designed for clear visual status signaling in compact electronic assemblies. Engineered for low-power operation and reliable performance, this green LED offers excellent visibility with a domed lens design, making it ideal for space-constrained applications where dependable indication is critical. PCX ensures genuine VCC components with fast shipping and dedicated technical support.

Key Features

• Color: Green (565nm peak wavelength)
• Voltage Rating: 1.8V
• Current: 2mA
• Brightness: 1.2mcd intensity
• Mounting: Surface mount, right-angle configuration
• Lens: Tinted, round with domed top

Technical Details

This single-configuration LED features a right-angle surface mount design for efficient PCB layout integration. With a low operating current of 2mA and a voltage rating of 1.8V, it provides energy-efficient operation suitable for battery-powered devices. The tinted domed lens enhances visibility from various angles while protecting the LED element.

Applications

• Status indicators on consumer electronics
• Panel-mounted display systems
• Medical device status lighting
• Industrial control panel indicators
• Automotive interior lighting systems

About VCC

Visual Communications Company (VCC) has been a leading innovator in optoelectronic components for decades, specializing in high-reliability LEDs and display technologies. Their products are known for consistent quality, precise engineering, and compliance with international standards.

VCC maintains rigorous manufacturing processes and quality control measures, ensuring their optoelectronics components meet the demanding requirements of industrial, automotive, and consumer applications. Their expertise in LED technology makes them a preferred supplier for critical illumination and indication needs.

About LED Indicators

LED indicators are essential components in electronic systems, providing visual feedback for status, operation, and warnings. Their low power consumption, long lifespan, and instant response make them superior to traditional incandescent indicators for modern electronic designs.

Surface mount LEDs like the 6200T5LC enable compact, automated assembly while offering design flexibility through various mounting configurations. Right-angle mount LEDs particularly facilitate panel-mounted applications where space constraints require innovative component orientation solutions.

Packaging Options

Available in Tape & Reel (TR) packaging for automated assembly processes. Please contact PCX for specific quantity requirements and reel specifications.

Frequently Asked Questions

Question: Is this LED suitable for automotive applications?
Answer: While this LED meets general reliability standards, please verify specific automotive requirements with our technical team.

Question: What is the viewing angle of this LED?
Answer: The domed lens provides wide viewing characteristics, though specific viewing angle data is available in the datasheet.

Question: Is this component RoHS compliant?
Answer: Yes, this LED indicator complies with RoHS environmental standards.

Question: Can PCX provide samples for testing?
Answer: Contact our sales team to discuss sample availability for qualification purposes.

Question: How does the right-angle mounting work?
Answer: The right-angle configuration allows the LED to be mounted perpendicular to the PCB, ideal for panel-mounted applications.

Question: Is this part obsolete and still reliable to use?
Answer: While marked obsolete, this component remains fully functional and reliable for existing designs and maintenance.

Ordering Information

Genuine VCC 6200T5LC green LED indicators are available exclusively through PCX with complete technical documentation and datasheet support. Order today to ensure allocation from our limited remaining stock!

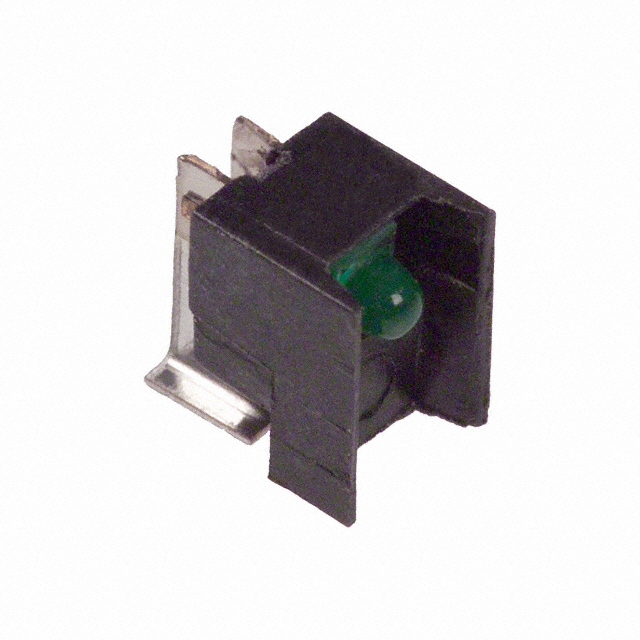

Note: Product image is representational. Please refer to datasheet for exact specifications. Datasheet available at: https://assets.rs-online.com/image/upload/v1699648978/Datasheets/f168a3cb414433cd6a756425c10abc34.pdf
