516BAA000270BAG

XTAL OSC VCXO 3.3V 6SMD

# 516BAA000270BAG – 3.3V VCXO with LVDS Output – Skyworks Solutions

The 516BAA000270BAG from Skyworks Solutions is a high-performance Voltage-Controlled Crystal Oscillator (VCXO) designed for precision timing applications requiring stable frequency output. This compact, surface-mount oscillator delivers reliable performance with LVDS output, making it ideal for telecommunications, networking, and data center equipment. PCX ensures fast shipping and dedicated customer support for all your component needs.

## Key Features
– **Output Frequency**: 148.351648MHz or 148.5MHz (configurable)
– **Supply Voltage**: 3.3V with low power consumption
– **Output Type**: LVDS for high-speed signal integrity
– **Frequency Stability**: ±20ppm across operating temperature
– **Operating Temperature**: -40°C to 85°C for industrial environments
– **Package**: 6-SMD, No Lead (5.00mm x 3.20mm compact size)
– **Function**: Enable/Disable control for power management

## Technical Details
This VCXO utilizes a crystal base resonator and offers pin-configurable frequency selection between two precise values. It features a maximum supply current of 26mA during operation and 22mA in disable mode, ensuring efficient power usage. The device is packaged in a strip format and is rated for industrial temperature ranges, providing robustness for demanding applications.

## Applications
– Network switches and routers
– Data storage and server systems
– Telecommunications infrastructure
– Test and measurement equipment
– High-speed data acquisition systems

## About the Manufacturer
Skyworks Solutions Inc. is a global leader in innovative analog and mixed-signal semiconductors, known for enabling wireless connectivity and advanced electronic systems. With decades of expertise, Skyworks delivers high-reliability components that meet stringent industry standards for performance and quality. Their products are trusted by top-tier OEMs worldwide for critical applications in communications, automotive, and industrial markets.

Skyworks’ commitment to research and development ensures cutting-edge solutions that drive technological advancement. Their rigorous testing and quality control processes guarantee components that perform consistently in even the most challenging environments, making them a preferred partner for engineers and designers globally.

## About VCXOs
Voltage-Controlled Crystal Oscillators (VCXOs) are essential components in electronic systems where precise frequency tuning is required. They provide stable clock signals that can be adjusted via a control voltage, making them ideal for phase-locked loops, frequency synthesis, and jitter reduction applications. Their ability to maintain tight frequency stability under varying conditions makes them critical in timing-sensitive systems.

VCXOs are widely used in communications infrastructure, data transmission, and digital processing equipment where timing accuracy directly impacts system performance. The integration of features like enable/disable functions and low-power modes in modern VCXOs enhances their utility in power-conscious designs, offering designers flexibility without compromising on reliability or precision.

## Packaging Options
This product is available in strip packaging. Tape & Reel options may be available for high-volume orders—contact PCX for customization.

## Frequently Asked Questions
**Question: What is the frequency stability of this VCXO?**
Answer: It offers ±20ppm stability across its full operating temperature range.

**Question: Can this oscillator be used in automotive applications?**
Answer: No, it is rated for industrial temperatures (-40°C to 85°C) but not automotive-grade.

**Question: Does it support enable/disable functionality?**
Answer: Yes, it includes an enable/disable pin for power management.

**Question: What output type does this VCXO use?**
Answer: It features LVDS output for high-speed, low-noise signal transmission.

**Question: Is the datasheet available for this component?**
Answer: Yes, download the full datasheet from PCXCo.com for detailed specifications.

**Question: What are typical applications for this VCXO?**
Answer: It is commonly used in networking gear, data centers, and telecom systems.

## Order Today for Fast Delivery!
Ensure your project stays on schedule with reliable components from PCX. Our extensive inventory and swift shipping mean you get the parts you need without delay. [View Datasheet](https://www.pcxco.com/datasheets/516BAA000270BAG.pdf)

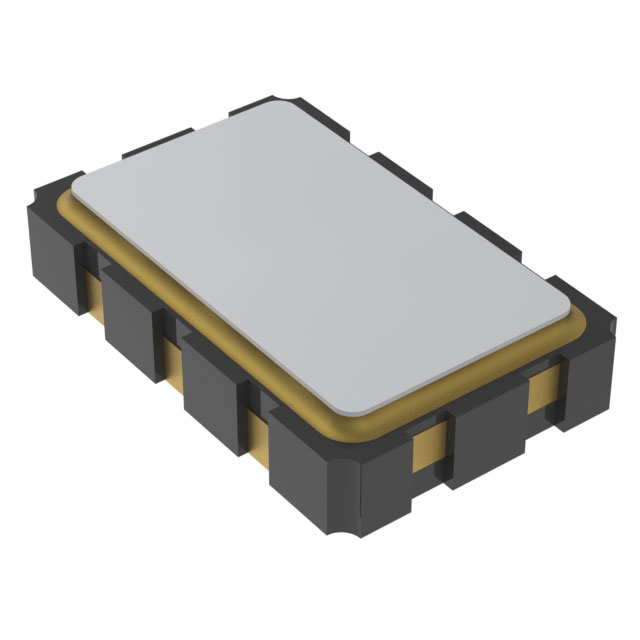

*Image is representational; refer to datasheet for exact specifications.*
