XFMR FT 3120/3150/5000 SMART SMD

14255R-100 – Surface Mount Transformer for FT 3120/3150/5000 Smart Transceivers – Renesas Electronics

This Renesas Electronics 14255R-100 specialty transformer delivers precise signal isolation and impedance matching for industrial communication systems. Designed for seamless integration with FT smart transceivers, it ensures reliable data transmission in space-constrained applications. PCX guarantees authentic components with same-day shipping and dedicated technical support.

Key Features

• Compatibility: Engineered for FT 3120, FT 3150, and FT 5000 Smart Transceivers
• Compact Design: Surface-mount package (17.00mm x 17.00mm)
• Low Profile: Max seated height of 12.50mm (0.492″)
• Robust Construction: Industrial-grade SMD reliability

Technical Details

This transformer features a square footprint (0.670″ L x 0.670″ W) optimized for high-density PCB layouts. As a critical signal conditioning component, it provides galvanic isolation between transceiver stages while maintaining signal integrity. Surface-mount technology enables automated assembly processes. Note: This part is designated Last Time Buy – order promptly to secure inventory.

Typical Applications

• Industrial automation control systems
• Fieldbus communication modules
• Motor drive interfaces
• Process instrumentation equipment
• Building management controllers

About Renesas Electronics

Renesas Electronics Corporation is a global leader in advanced semiconductor solutions, renowned for innovation in embedded processing, analog, and power technologies. With decades of industry expertise, Renesas delivers high-reliability components that meet stringent automotive and industrial standards.

The company’s commitment to quality is demonstrated through rigorous testing protocols and ISO-certified manufacturing. Renesas’ smart transceiver solutions are trusted worldwide for mission-critical applications where signal integrity and durability are paramount.

About Specialty Transformers

Specialty transformers like the 14255R-100 serve as essential interface components in electronic circuits, providing voltage conversion, impedance matching, and electrical isolation. They protect sensitive ICs from voltage spikes and ground loops while optimizing signal transfer between circuit stages.

In communication systems, these transformers enable noise-free data transmission across different voltage domains. Their compact SMD formats meet modern design demands for miniaturization without compromising performance, making them indispensable in industrial networks and automation architectures.

Packaging Options

Available in Tape & Reel (TR), Cut Tape (CT), and Digi-Reel® formats to support prototyping and volume production requirements.

FAQs

Question: Is this transformer compatible with FT6000 series transceivers?
Answer: No, the 14255R-100 is specifically designed for FT 3120, FT 3150, and FT 5000 transceivers only.

Question: What does “Last Time Buy” status mean?
Answer: This indicates Renesas has discontinued production. Final inventory remains available through PCX while supplies last.

Question: Can this transformer handle automotive temperature ranges?
Answer: While industrial-grade, confirm exact operating specifications in the datasheet for your application requirements.

Question: Do you provide samples for prototyping?
Answer: Yes, PCX offers samples in Cut Tape packaging for design validation.

Question: How do specialty transformers improve signal integrity?
Answer: They provide galvanic isolation, reduce electromagnetic interference (EMI), and match impedance between circuit stages.

Question: Is the datasheet available?
Answer: Yes: Download 14255R-100 Datasheet

⚠ Final Opportunity: Last Time Buy item – limited stock remaining! Order today for guaranteed delivery from PCX’s certified inventory.

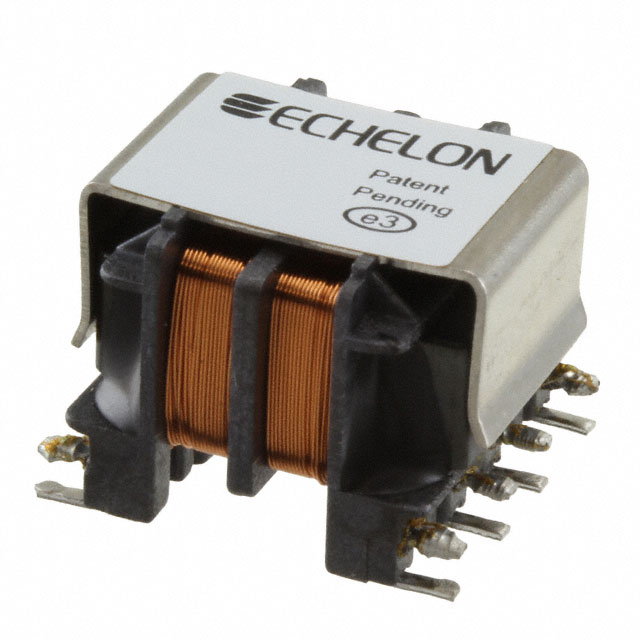

Note: Product image is representational. Actual product may vary.
