CONN SIM CARD R/A SMD

0912283002 – Right Angle SIM Card Connector – Molex

This Molex 0912283002 SIM card connector delivers reliable, space-saving connectivity for embedded systems requiring removable SIM access. Designed for surface-mount assembly, its right-angle configuration and gold-plated contacts ensure durable performance in compact devices. PCX provides guaranteed authentic Molex components with same-day shipping and dedicated technical support.

Key Features

• Card Type: Secure SIM card retention
• Mounting: Surface mount, right-angle (0.118″ height)
• Contacts: Gold finish (0.10µm thickness) for corrosion resistance
• Configuration: 6-position connector with left-side ejector
• Operation: Push-in/push-out insertion/removal
• Packaging: Tape & Reel (TR) for automated assembly

Technical Details

Part of Molex’s 91228 series, this obsolete-but-stock-available connector features a “Normal, Standard – Top” mounting design optimized for PCB integration. The right-angle orientation minimizes vertical footprint (3.00mm height), while the integrated ejector mechanism enables tool-free SIM card handling. Gold-plated contacts maintain signal integrity through repeated insertion cycles. Base part number: 091228.

Typical Applications

• IoT modules and M2M communication devices
• Mobile hotspots and portable routers
• Industrial telemetry equipment
• Automotive telematics systems
• Medical monitoring devices

About Molex

Molex, a global leader in electronic connectivity solutions, brings over 80 years of engineering expertise to mission-critical industries. Their connectors are renowned for precision manufacturing, rigorous quality control, and compliance with international standards, making them the preferred choice for telecommunications and embedded systems.

The company invests heavily in R&D to address evolving connectivity challenges, resulting in innovative designs like this SIM card connector. Molex components consistently deliver field-proven reliability in high-vibration and harsh-environment applications, backed by comprehensive technical documentation and global supply chain support.

About SIM Card Connectors

SIM card connectors provide the critical interface between removable subscriber identity modules and host devices, enabling secure cellular network authentication. These specialized interconnects must maintain consistent electrical contact despite frequent card swaps while resisting environmental stressors like humidity and mechanical shock.

Surface-mount right-angle versions are essential for space-constrained PCB layouts in modern electronics. High-quality connectors feature precious metal plating for low-resistance paths and robust actuation mechanisms to prevent SIM jamming, directly impacting device uptime and user experience in cellular-enabled applications.

Packaging Options

Available in industry-standard Tape & Reel (TR) packaging for high-volume SMT assembly lines. Contact PCX for reel quantity details and custom kitting options.

Frequently Asked Questions

Q: Is this connector compatible with nano-SIM cards?
A: No, this 6-position connector is designed for standard SIM form factors. Verify card dimensions using the Molex datasheet.

Q: Can it withstand industrial temperature ranges?
A: While exact specs vary, Molex connectors typically support -40°C to +85°C. Refer to the datasheet for this specific part’s operating conditions.

Q: Why choose gold-plated contacts?
A: Gold plating prevents oxidation, ensuring reliable low-resistance connections through thousands of insertion cycles—critical for field-serviceable devices.

Q: How does the ejector mechanism work?
A: The left-side ejector uses a push-push latch system: press once to lock the SIM, press again to release it smoothly without damage.

Q: Is this part still recommended for new designs?
A: As an obsolete part, it’s ideal for legacy repairs. For new projects, contact PCX for recommended Molex alternatives.

Q: What PCB footprint does this connector require?
A: Download the Molex datasheet via PCXCo.com for complete mechanical drawings and land pattern specifications.

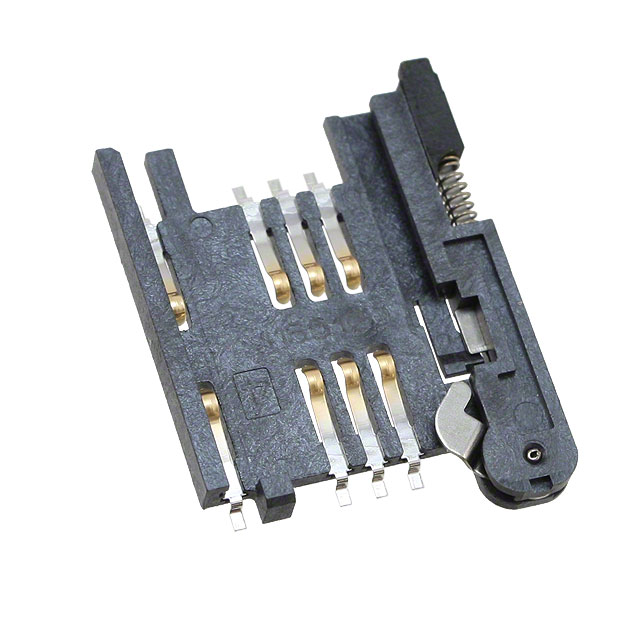

Note: Product image is representational. Refer to datasheet for exact dimensions.
Download Datasheet

Secure your connectivity solution now!

Don’t risk production delays—order authentic Molex 0912283002 SIM card connectors today for same-day shipping and expert support. Contact PCX for volume pricing!
