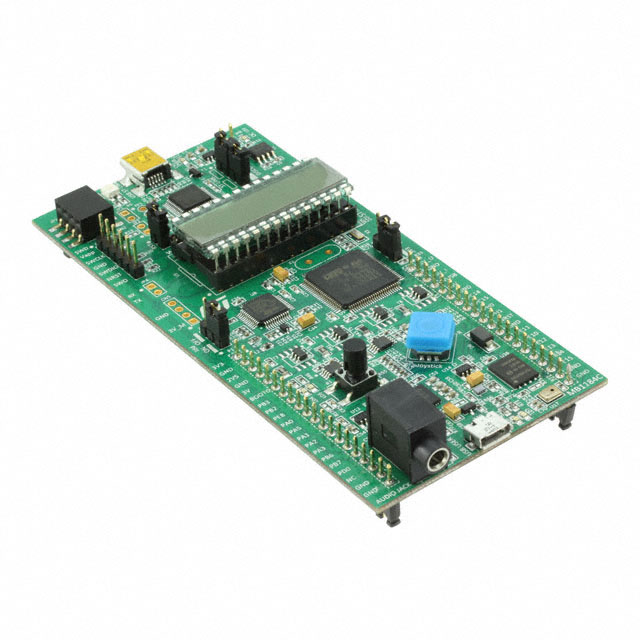

STM32L476G-DISCO – STM32L476 Discovery Kit – STMicroelectronics

Jumpstart your ultra-low-power embedded designs with the STM32L476G-DISCO Discovery Kit from STMicroelectronics. This ready-to-use development platform features a high-performance ARM® Cortex®-M4 microcontroller with FPU, enabling rapid prototyping for energy-efficient IoT, medical, and industrial applications. PCX delivers genuine STMicroelectronics boards with same-day shipping and expert technical support.

Key Features

• Core: 80 MHz ARM® Cortex®-M4 with FPU & DSP instructions
• Ultra-Low Power: STM32L476VG MCU with multiple power-saving modes
• Memory: 1MB Flash, 128KB SRAM
• Onboard Peripherals: 2.4″ QVGA TFT LCD, digital microphone, 6-axis MEMS sensor, audio DAC
• Connectivity: USB OTG, ST-LINK/V2-1 debugger/programmer
• Expansion: Arduino™ UNO R3 & ST Morpho headers

Technical Details

The STM32L476G-DISCO integrates an STM32L476VG microcontroller in LQFP100 package. It includes an embedded ST-LINK/V2-1 interface supporting SWD debugging and USB virtual COM port. Board features include 4 user LEDs, 2 pushbuttons, reset control, and comprehensive power supply options (USB or external sources). Operating temperature range: -40°C to +85°C. Hardware cryptographic acceleration supports AES, HASH, and RNG security functions.

Typical Applications

• IoT sensor nodes and edge computing devices
• Portable medical instrumentation
• Energy harvesting systems
• Industrial control interfaces
• Wearable technology prototypes

About STMicroelectronics

STMicroelectronics is a global semiconductor leader with 40+ years of innovation in microcontroller and power management technologies. Their STM32 portfolio, including the ultra-low-power L4 series, sets industry benchmarks for energy efficiency and processing capability in embedded systems.

STMicroelectronics maintains rigorous quality certifications (ISO/TS 16949, ISO 14001) across manufacturing facilities worldwide. Their commitment to long-term product availability and comprehensive SDK support makes STM32 devices a trusted choice for mission-critical applications.

About Development Kits

Development kits provide engineers with fully integrated hardware platforms to evaluate microcontrollers and accelerate design cycles. These turnkey solutions include essential peripherals, debug interfaces, and software examples, eliminating initial hardware design barriers.

For ARM Cortex-M based systems, discovery boards like the STM32L476G-DISCO offer standardized expansion interfaces and production-ready reference designs. They enable rapid validation of power profiles, peripheral integration, and real-time performance before custom PCB development.

FAQs

Question: Does this kit require external programming hardware?
Answer: No – it includes an onboard ST-LINK/V2-1 debugger/programmer with USB connectivity.

Question: What software tools support this development board?
Answer: It’s compatible with STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and STM32CubeMX configuration tools.

Question: Can I power the board via batteries?
Answer: Yes – it supports 3V or 5V input via the E5V pin for portable applications.

Question: Is the LCD touch-sensitive?
Answer: The included 2.4″ TFT LCD is a non-touch display module.

Question: What security features does the STM32L476 offer?
Answer: Hardware features include AES-256 encryption, True RNG, and secure firmware installation (SFI).

Question: Are schematics available for this board?
Answer: Yes – download design files from the documentation section of this product page at PCXCo.com.

Note: Product images are representational. Actual item ships in protective anti-static packaging.
