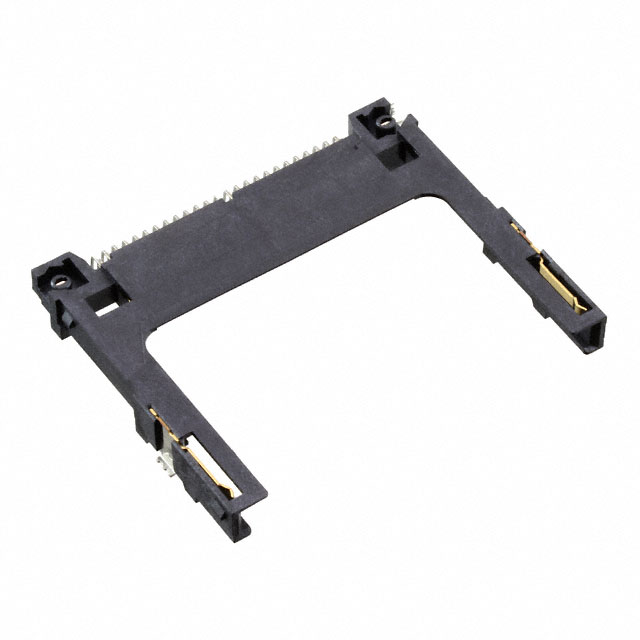

CONN COMPACT FLASH CARD R/A SMD

0553595029 – CompactFlash® Card Right-Angle SMD Connector – Molex

This Molex 0553595029 connector provides a robust, space-saving solution for integrating CompactFlash® memory cards (Type I/II) into embedded systems and portable electronics. Engineered for reliable data transfer in constrained spaces, it features surface-mount right-angle design and gold-plated contacts for consistent performance. PCX ensures genuine Molex components with rapid fulfillment and dedicated technical support.

Key Features

• CompactFlash® Type I/II compatibility
• Right-Angle, Surface Mount design for space-optimized PCB layouts
• 50-Position connector with secure push-in/pull-out mechanism
• Gold Contact Finish (8.00µin) for corrosion resistance and stable conductivity
• Integrated Board Guide & Card Guide for precise alignment
• Reverse-Bottom Mounting with 0.236″ (6.00mm) height clearance

Technical Details

• Series: Molex 55359
• Status: Obsolete* (Available for legacy support via PCX)
• Mounting: Surface Mount, Right Angle
• Contact Plating: Gold (0.203µm thickness)
• Base P/N: 055359
• Packaging: Tray

*Note: This part is marked obsolete by the manufacturer but may be available for immediate shipment through PCX’s inventory network.

Typical Applications

• Industrial embedded computing systems
• Legacy medical diagnostic equipment
• Data loggers and portable test instruments
• Retro gaming hardware and specialty consumer electronics
• Telecommunications infrastructure

About Molex

Molex, a global leader in connectivity solutions, has pioneered electronic interconnects for over 80 years. Renowned for innovation in miniaturization and high-reliability designs, their components meet rigorous industrial standards. The 55359 series exemplifies Molex’s commitment to durability, with engineering optimized for repeated mating cycles and harsh operating environments.

Molex connectors are trusted in mission-critical sectors like aerospace, automotive, and healthcare due to stringent quality control and material excellence. PCX partners directly with Molex to provide authentic, traceable components, ensuring long-term system integrity for legacy and specialized applications.

About CompactFlash Connectors

CompactFlash (CF) connectors enable removable storage in space-constrained devices, offering high-speed data transfer via the Parallel ATA/IDE interface. Their ruggedized design withstands vibration and frequent card swaps, making them ideal for field-deployable equipment. Right-angle SMD variants like the 0553595029 maximize PCB real estate while simplifying assembly.

Though newer standards exist, CF remains vital for maintaining legacy industrial systems, retro-computing projects, and specialized hardware. These connectors ensure backward compatibility and reduce redesign costs. PCX specializes in sourcing discontinued interconnect solutions, providing lifecycle support for obsolete technologies.

Packaging & Ordering

Available in manufacturer trays. Contact PCX for volume pricing and reel customization options.

Frequently Asked Questions

Q: Is this connector compatible with both Type I and Type II CF cards?
A: Yes, it supports all standard CompactFlash® Type I and Type II cards.

Q: Can PCX supply this obsolete part?
A: Absolutely. PCX maintains strategic stock of legacy components like this Molex connector for urgent replacement needs.

Q: What’s the benefit of reverse-bottom mounting?
A: It positions the card parallel to the PCB, minimizing vertical profile—critical for slim devices.

Q: Does the gold plating affect solderability?
A: No, the thin 0.203µm gold layer ensures excellent solderability while preventing oxidation.

Q: How durable is the push-in/pull-out mechanism?
A: Molex designs this mechanism for thousands of insertion cycles with minimal wear.

Q: Can I get a datasheet?
A: Yes! PCX provides product-specific documentation upon request.

Secure Legacy System Continuity

Ensure your equipment stays operational—order the genuine Molex 0553595029 connector now for same-day shipping! Contact PCX for technical specs or bulk requirements.

Product images are representational. Specifications subject to manufacturer documentation.
