XL9555 – I/O Expander – Xinluda

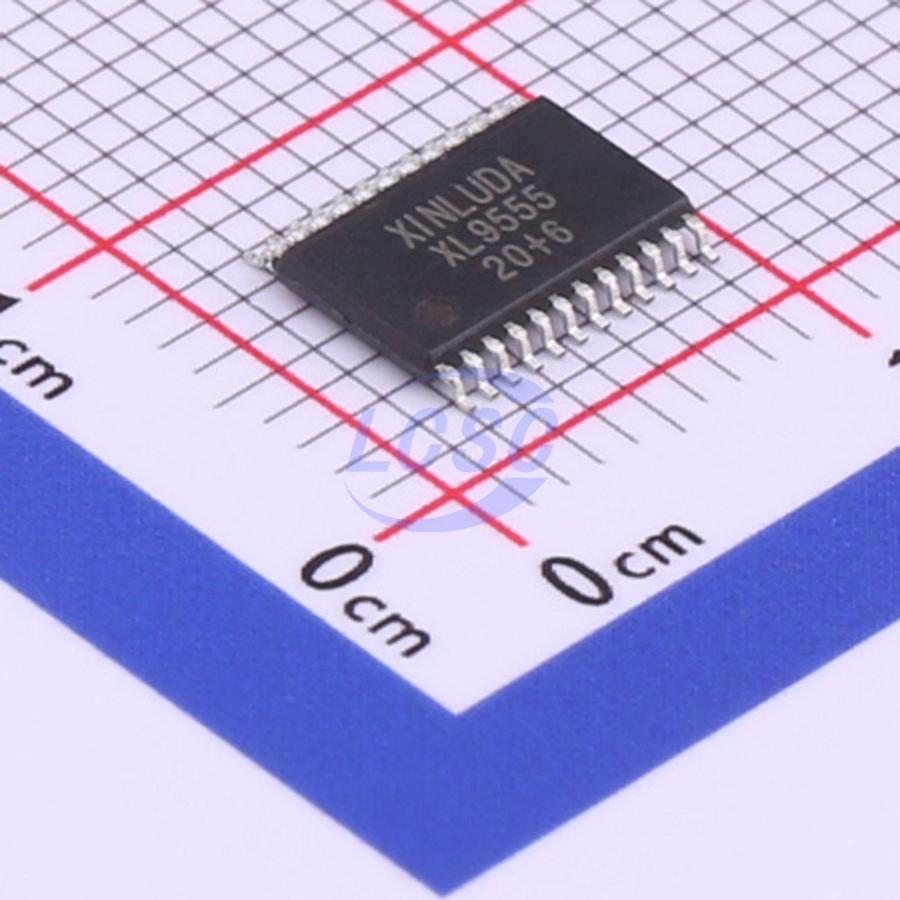

The Xinluda XL9555 is a 16-bit I²C-bus and SMBus I/O port expander in a TSSOP-24 package, providing 16 general-purpose I/O pins with interrupt output and configuration registers for microcontroller-based systems.

The XL9555 from Xinluda (Shenzhen Xinluda Information Technology Co., Ltd.) is a 16-bit I²C-bus and SMBus I/O port expander that adds 16 general-purpose parallel input/output (GPIO) pins to most microcontrollers through a simple two-wire serial interface. Built on a 24-pin CMOS process, the XL9555 is a cost-effective way to extend port count for designs that have run out of native GPIO, and it follows the well-established 16-bit I²C I/O-expander architecture used across the PCA9555 / CAT9555 class of devices.

Each of the 16 I/O pins powers up as an input by default and can be individually reconfigured as an output through the device’s configuration registers. A polarity-inversion register lets the host invert the sense of input pins without additional software overhead, and an open-drain active-LOW interrupt (/INT) output alerts the host whenever an input state changes, eliminating the need for continuous polling.

Key Features

• 16-bit general-purpose parallel I/O (two 8-bit ports, all configured as inputs at power-up)
• I²C-bus / SMBus serial interface, 400 kHz fast-mode clock
• Operating supply voltage range of 2.3 V to 5.5 V
• 5 V fault-tolerant I/O ports
• Open-drain active-LOW interrupt output (/INT) on input state change
• Polarity inversion register for input ports
• Internal power-on reset that sets registers to their default values
• Noise filter on SCL/SDA inputs
• Three hardware address pins (A0, A1, A2) allow up to 8 devices on a single bus
• Low quiescent current
• Operating temperature range of -40°C to +85°C
• TSSOP-24 package (QFN-24, SOP-24, and SSOP-24 variants are also offered by the manufacturer)

Applications

• GPIO expansion for microcontrollers and SoCs
• LED status indicators and keypad/switch scanning
• Servers, industrial controllers, and instrumentation
• Consumer electronics and white goods
• Sensor and peripheral monitoring over I²C

Why Source XL9555 from Pacific Component Xchange

The XL9555 is a Xinluda part with limited authorized-distributor coverage in Western markets, which can make it difficult to procure in production volumes or against tight build schedules. Pacific Component Xchange specializes in sourcing hard-to-find and allocated power-management ICs, I/O expanders, and optocouplers from a global supplier network. Whether you need a small bridge buy or full reel quantities, our team can locate the XL9555, verify authenticity, and ship worldwide.

Because the XL9555 is offered on a Request-For-Quote basis, pricing and lead time are confirmed per order. Submit an RFQ today and our sourcing specialists will respond with current availability, dating, and a competitive quote for the quantity you need.
