Xinluda Information Technology (Xiamen) Co., Ltd. Electronic Parts
Available — quote-only
Please contact us or request a quote for current pricing and availability.

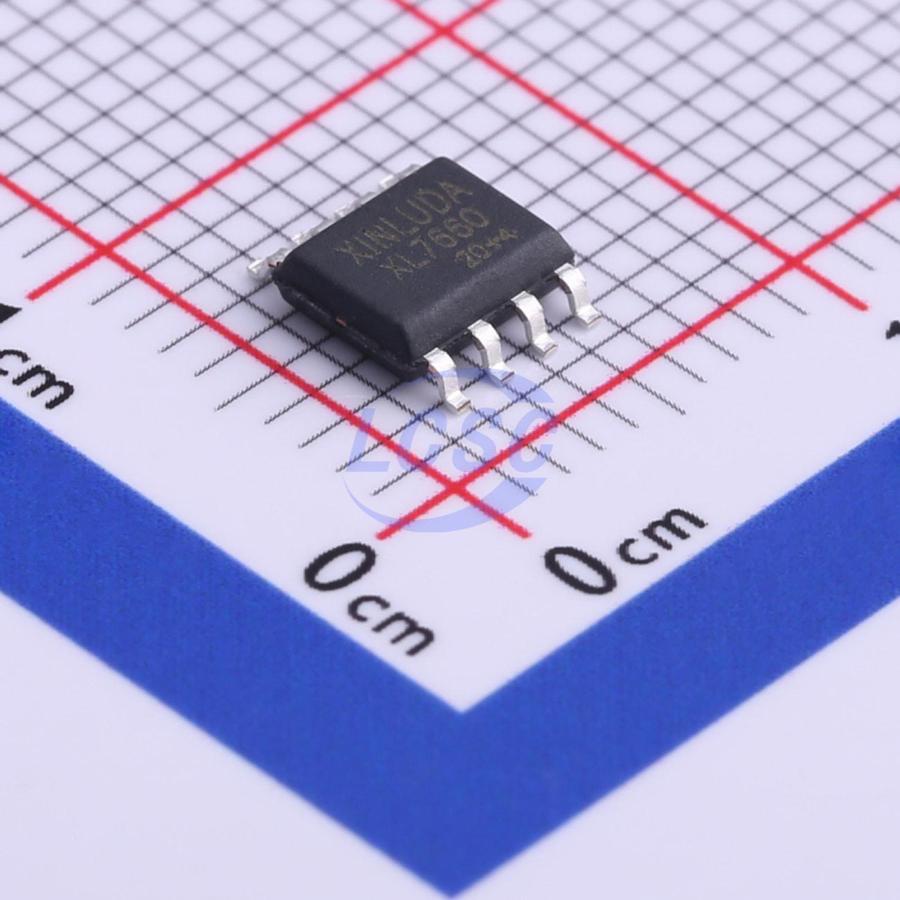

The Xinluda XL7660 is a monolithic CMOS voltage-conversion IC that operates as a charge pump (switched-capacitor) DC-DC converter. It is a member of the widely used 7660 family and is most commonly employed to generate a negative supply rail from a single positive input, requiring only two inexpensive external capacitors. The XL7660 is supplied in a surface-mount SOP-8 package; the pin-compatible XD7660 covers the through-hole DIP-8 footprint.
With a supply range spanning 1.5V to 10V and a low typical no-load supply current, the XL7660 is well suited to battery-powered and low-power analog systems that need a clean negative bias without an inductor-based supply.
The Xinluda XL7660 is a value-oriented charge-pump IC with limited authorized-distributor coverage outside of Asia, which can make consistent supply a challenge for production buyers. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete power-management ICs and optocouplers. We help engineering and procurement teams secure the XL7660 and pin-compatible 7660-family alternates even when standard channels are out of stock.
Every order is backed by our commitment to authenticity and quality, with inspection and traceability available on request, plus global shipping to keep your build on schedule. Whether you need a single reel for a prototype run or volume quantities for production, our sourcing team can locate the parts you need.
Request a quote (RFQ) for the XL7660 today and our team will respond with availability, pricing, and lead time. Contact Pacific Component Xchange to source this and other hard-to-find power-management components.
The XL7660 is a CMOS charge-pump voltage converter most commonly used to generate a negative supply rail from a single positive input (for example -5V from +5V) using only two external capacitors. It is also used in voltage-doubling and charge-pump supply circuits.
The XL7660 belongs to the same 7660 family and uses the industry-standard pinout, so it is generally used as a functional alternative to common 7660-type CMOS voltage converters. As always, confirm electrical parameters and package against the Xinluda datasheet for your specific design before substituting.
The XL7660 and XD7660 are the same Xinluda voltage-converter device offered in different packages. The XL7660 is the surface-mount SOP-8 version, while the XD7660 is the through-hole DIP-8 version.
The XL7660 operates over a supply voltage range of 1.5V to 10V and produces an inverted output of -1.5V to -10V.
The XL7660 has limited authorized-distributor availability outside of Asia, so Pacific Component Xchange lists it as an RFQ item. Submit a quote request and our sourcing team will respond with current availability, pricing, and lead time.
Yes. As an independent distributor specializing in hard-to-find power-management ICs, Pacific Component Xchange can source the XL7660 in both prototype and production quantities, with authenticity and traceability support available on request and global shipping.
