XL74LS00 – Quad 2-Input NAND Gate Logic IC – Xinluda

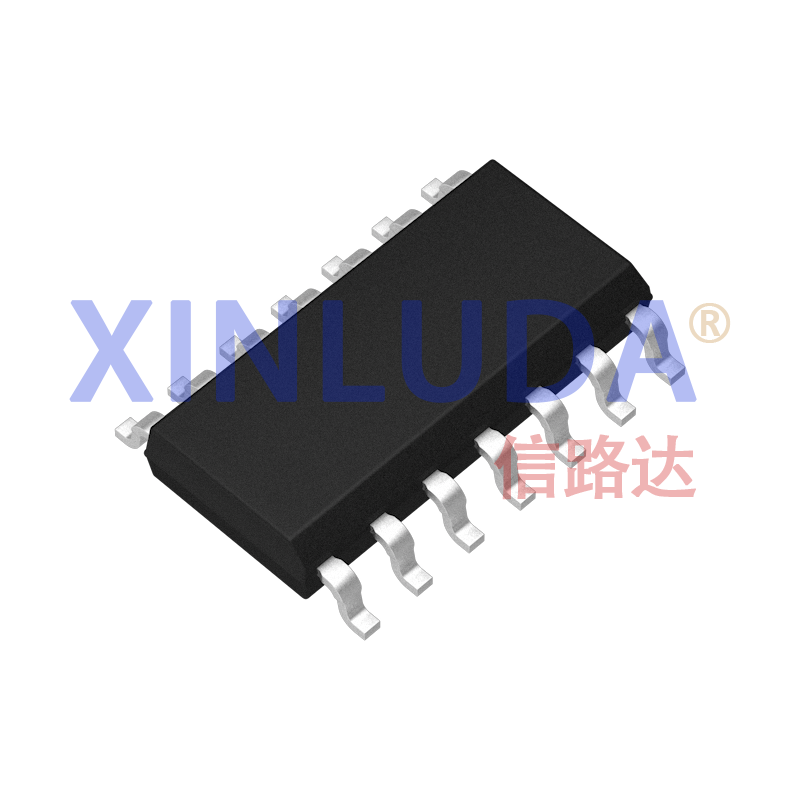

The XL74LS00 from Xinluda is a quad 2-input NAND gate logic IC in the 74LS low-power Schottky TTL family, supplied in a SOP-14 surface-mount package. Available for RFQ at Pacific Component Xchange.

The XL74LS00 is a quadruple 2-input NAND gate integrated circuit manufactured by Xinluda Information Technology Co., Ltd. It belongs to the well-established 74LS (low-power Schottky TTL) logic family and integrates four independent 2-input NAND gates into a single 14-pin package. Each gate performs the Boolean NAND function, making the XL74LS00 a versatile building block for combinational logic, signal gating, and glue-logic designs.

As a 74LS00-compatible device, the XL74LS00 is a drop-in functional equivalent for the industry-standard 7400/74LS00 pinout, allowing engineers to use it in legacy and new designs that call for reliable, low-cost NAND logic. It is offered in a SOP-14 surface-mount package and is RoHS compliant.

Key Features

• Four independent 2-input NAND gates in a single IC
• 74LS series low-power Schottky TTL technology
• 14-pin SOP-14 surface-mount package
• RoHS compliant
• Inputs accept 3.3 V or 2.5 V logic levels (per Xinluda datasheet)
• Functionally and pin-compatible with the industry-standard 74LS00
• Tape-and-reel packaging available (2,500 pcs/reel)

Applications

• General-purpose combinational and glue logic
• Signal gating and enable/inhibit control
• Audio/video equipment such as receivers, Blu-ray players, and home theater systems
• Portable audio devices and consumer electronics
• Industrial control and instrumentation logic
• Legacy 7400-series board replacements and retrofits

Why Source XL74LS00 from Pacific Component Xchange

The XL74LS00 from Xinluda has limited authorized-distributor coverage, which can make it difficult to source through mainstream channels. Pacific Component Xchange is an independent distributor specializing in hard-to-find and end-of-life power-management ICs, logic, and optocouplers. We help engineers and procurement teams secure scarce parts like the XL74LS00 when traditional supply lines fall short.

Every order is backed by our commitment to authenticity and quality, with inspection and traceability processes in place to protect your build against counterfeit and substandard components. We support global shipping and flexible quantities, whether you need a handful of units for prototyping or production volumes for a manufacturing run.

Ready to lock in supply? Request a quote (RFQ) for the XL74LS00 today and our sourcing team will respond promptly with availability, lead time, and pricing.
