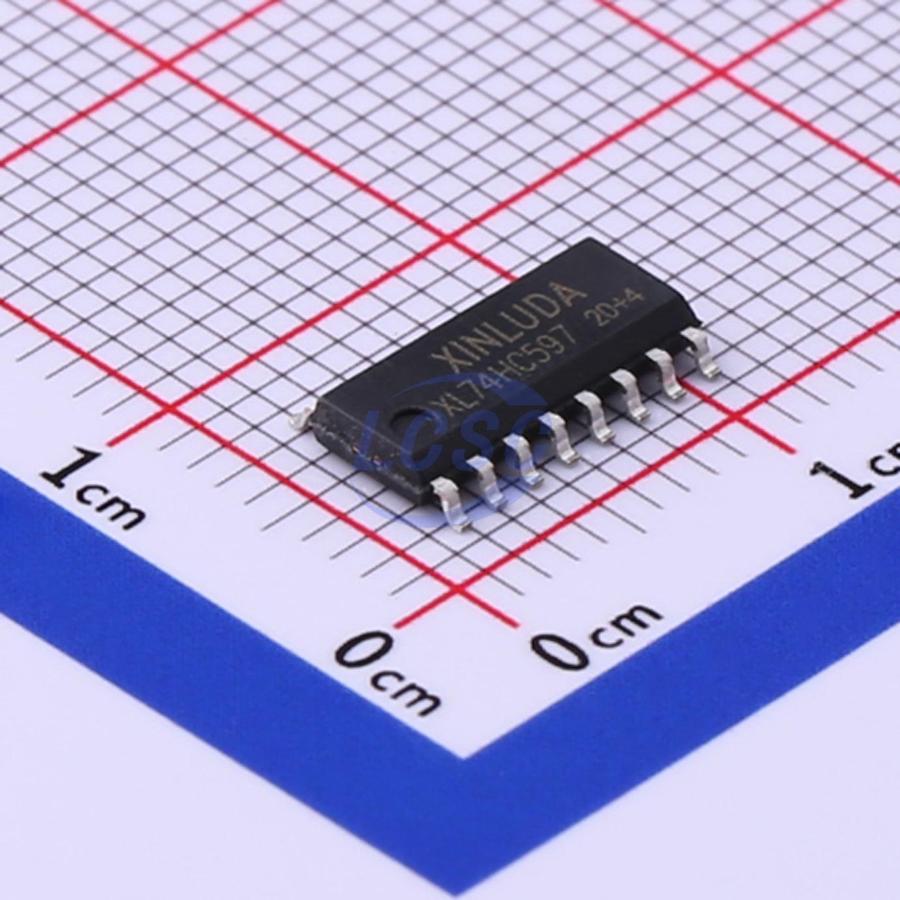

XL74HC597 – 8-Bit Shift Register with Input Flip-Flops – Xinluda

The Xinluda XL74HC597 is an 8-bit shift register with input flip-flops, pairing an 8-bit storage register with a parallel-in, serial-out shift register in a SOP-16 package. Available for RFQ from Pacific Component Xchange.

The XL74HC597 from Xinluda is an 8-bit shift register with input flip-flops, built on the popular high-speed Si-gate CMOS 74HC597 logic architecture. It consists of an 8-bit storage register feeding a parallel-in, serial-out 8-bit shift register. Both the storage register and the shift register use positive edge-triggered clocks, and the device provides direct (asynchronous) overriding load (from storage) and clear functions, making it well suited for capturing and serializing wide parallel data buses over a small number of signal lines.

This device is pin-compatible with low-power Schottky TTL (LSTTL) and is a functional equivalent to the industry-standard 74HC597 family, offered by Xinluda in a space-efficient SOP-16 surface-mount package. The XL74HC597 is also available as the TSSOP-16 variant (XL74HC597-TS) and the through-hole DIP-16 variant (XD74HC597).

Key Features

• 8-bit shift register with input flip-flops (parallel-in, serial-out)
• 8-bit parallel storage register feeding the shift register
• Positive edge-triggered shift and storage clocks
• Direct (asynchronous) overriding parallel load and clear functions
• Pin-compatible with low-power Schottky TTL (LSTTL)
• Operating supply voltage range: 2 V to 6 V
• DC output current: up to 25 mA per output
• Propagation delay (SHCP to Q): 37 ns max at VCC = 6 V, CL = 50 pF
• Operating temperature range: -40 C to +85 C
• SOP-16 package (TSSOP-16 and DIP-16 variants also available)
• RoHS compliant

Applications

• Parallel-to-serial data conversion and bus width reduction
• Sensor and switch input expansion / data acquisition front-ends
• Remote and distributed I/O reading over serial links
• Industrial control and instrumentation
• Consumer electronics and embedded microcontroller interfacing

Why Source XL74HC597 from Pacific Component Xchange

The XL74HC597 is a specialty logic part with little to no authorized-distributor stock, which can stall production runs and prototypes. Pacific Component Xchange specializes in sourcing hard-to-find and allocated power-management ICs, logic, and optocouplers like the XL74HC597. Our global supplier network, rigorous authenticity and inspection processes, and worldwide shipping help you secure the parts you need when standard channels come up empty.

This is a Request-For-Quote item. Submit an RFQ today for current pricing, available quantities, lead times, and date codes on the XL74HC597 and its TSSOP-16 (XL74HC597-TS) and DIP-16 (XD74HC597) variants.
