XL62783 – 8-Channel High-Voltage Source Driver – Xinluda

The XL62783 from Xinluda is an 8-channel high-voltage DMOS source driver array (VCC up to 50V, output current to -500mA per channel) with built-in output clamp diodes for switching inductive loads such as relays, lamps, hammers and fluorescent displays.

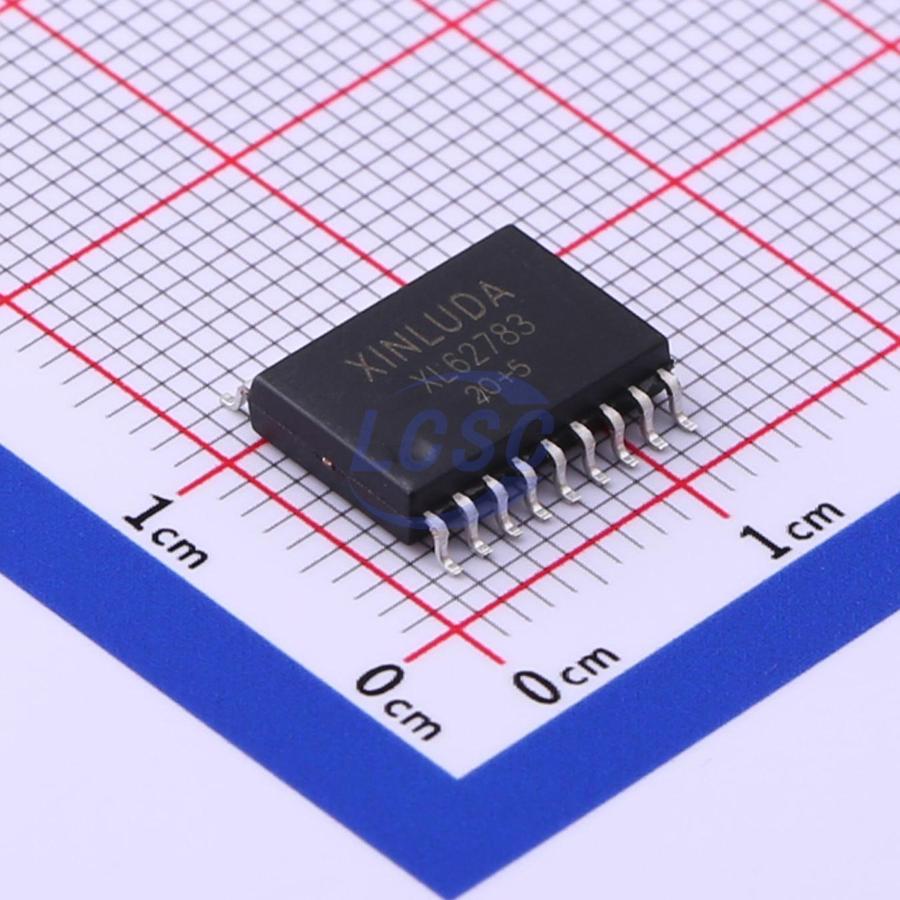

The XL62783 (also marked XD62783) is an 8-channel high-voltage source driver from Xinluda, built as a DMOS transistor array. It is designed to source current to loads referenced to ground, making it well suited to fluorescent display drive, relay drive, lamp drive and hammer/solenoid drive applications. Each of the eight outputs includes a built-in clamp diode for safely switching inductive loads.

With a supply range up to 50V and a peak output capability of -500mA per channel, the XL62783 is a versatile companion to common ground-referenced sink drivers, and is functionally comparable to industry-standard 2783-type source driver arrays.

Key Features

• DMOS output type, 8-channel source driver array
• High voltage operation: VCC = 50V (max)
• High output current: IOUT = -500mA (max per channel, absolute maximum)
• Recommended operating supply voltage: 2.0V to 50V
• Input voltage (output ON): 2.0V minimum; input voltage (output OFF): 0.6V maximum
• Built-in clamp diode on each output for switching inductive loads
• Operating temperature range: -40°C to +85°C
• Available in DIP-18 and SOP-18 packages

Applications

• Fluorescent display (VFD) drivers
• Relay drivers
• Lamp drivers
• Hammer / solenoid drivers
• Inductive load switching

Why Source XL62783 from Pacific Component Xchange

The XL62783 is a specialized Xinluda source driver with limited authorized-distributor availability, which can make it difficult to procure through mainstream channels. Pacific Component Xchange is an independent distributor focused on hard-to-find and obsolete power-management ICs, drivers and optocouplers. We help engineers and buyers secure scarce parts like the XL62783 with attention to authenticity, traceability and inspection, and we ship globally to support production schedules and EOL/last-time-buy needs.

Pricing for this part is quote-based. Request a quote (RFQ) from Pacific Component Xchange for current availability, lead time and volume pricing on the XL62783.
