XL3842 – Current-Mode PWM Controller – Xinluda

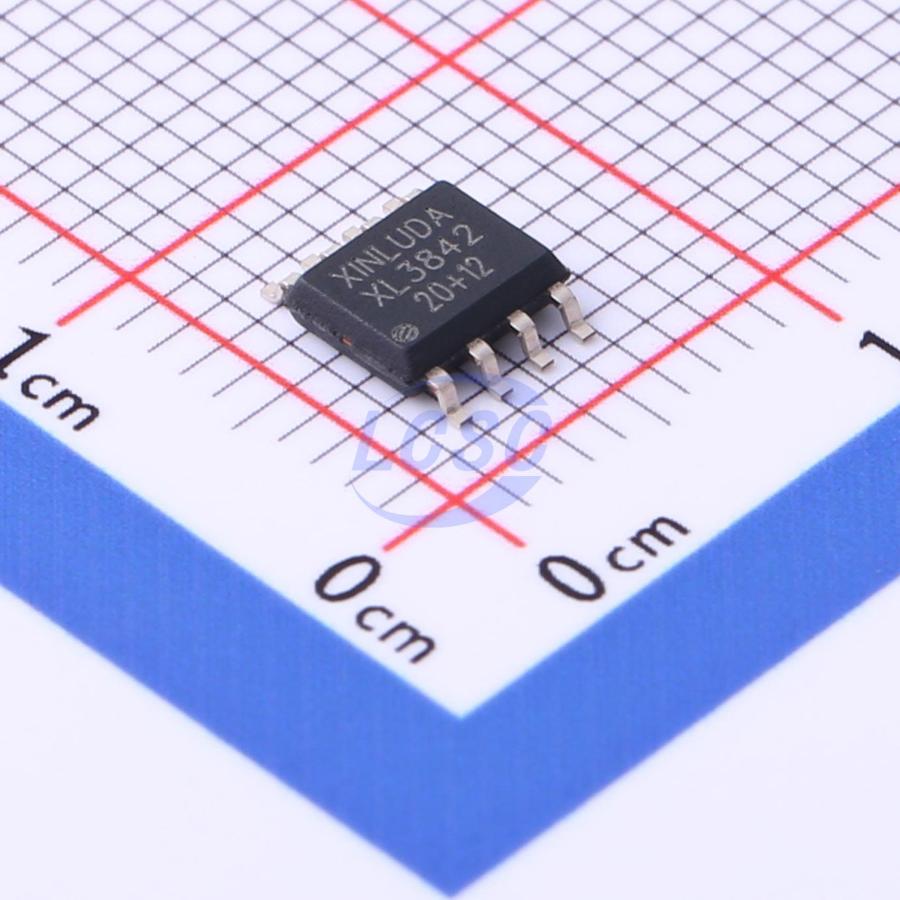

The Xinluda XL3842 is a high-performance fixed-frequency current-mode PWM controller in an SOP-8 package, designed for off-line and DC-to-DC switching power supplies. Available for RFQ at Pacific Component Xchange.

The XL3842 from Xinluda is a high-performance, fixed-frequency current-mode PWM controller intended for off-line and DC-to-DC switching power supply designs that require few external components. Belonging to the widely adopted UC3842-style controller family, the XL3842 integrates a precision oscillator, error amplifier, current-sensing comparator, and a high-current totem-pole output stage suited to driving a power MOSFET directly. It is supplied in a compact SOP-8 surface-mount package.

Like other devices in this proven architecture, the XL3842 implements cycle-by-cycle current limiting through a latching PWM comparator and includes under-voltage lockout (UVLO) with hysteresis plus over-current protection, helping deliver robust, well-regulated power conversion in flyback, forward, and buck topologies. As a 3842-type variant, it uses higher UVLO thresholds (approximately 16V turn-on / 10V turn-off) and supports a high maximum duty cycle.

Key Features

• High-performance current-mode PWM control architecture (UC3842-type)
• Operating supply voltage range: 12V to 28V
• Output drive current: 1A (totem-pole gate drive)
• Switching frequency: 250 kHz
• Maximum duty cycle: 96%
• Latching PWM for cycle-by-cycle current limiting
• Under-voltage lockout with hysteresis (approx. 16V on / 10V off)
• Over-current protection
• Trimmed oscillator for precise frequency control
• Power dissipation (Pd): 800 mW
• Operating temperature range: 0°C to +70°C
• SOP-8 surface-mount package

Applications

• Off-line AC-DC switching power supplies
• Flyback and forward converters
• Isolated DC-DC converters
• Power adapters and chargers
• Auxiliary and standby power supplies
• Industrial and white-goods power modules

Why Source XL3842 from Pacific Component Xchange

The XL3842 is a regional-market current-mode PWM controller with limited authorized-distributor coverage, which can make it difficult to source through mainstream channels. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete power-management ICs and optocouplers. Our team can locate the XL3842 and equivalent UC3842-family controllers, verify authenticity, and ship globally to keep your production line moving.

Because the XL3842 is offered on a request-for-quote basis, simply submit an RFQ with your target quantity and required date code, and our sourcing specialists will respond with current availability and pricing. Whether you need a single reel for a prototype or volume quantities for a production run, Pacific Component Xchange provides reliable access to hard-to-find components backed by quality screening and worldwide logistics.
