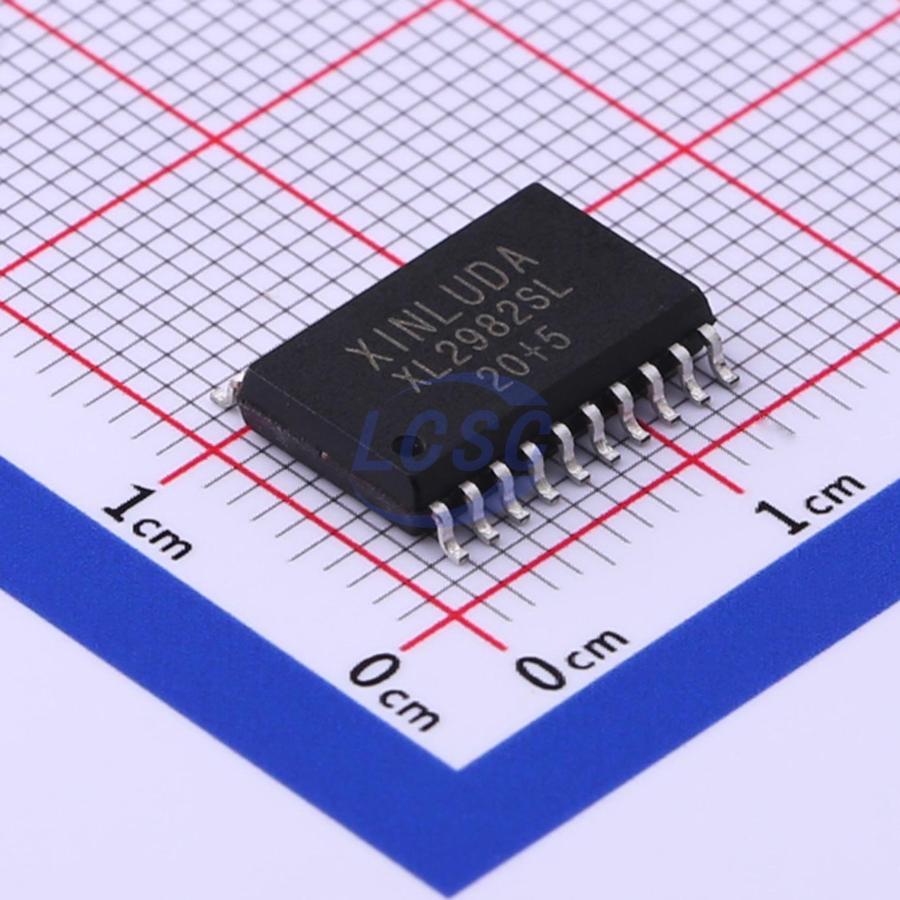

The Xinluda XL2982SL is an 8-channel, high-voltage, high-current source driver array (high-side driver) supplied in a surface-mount SOP-20-208mil package. It is designed to interface directly between low-level digital logic and high-current loads, sourcing current from the supply rail to drive relays, solenoids, lamps, stepper and servo motors, LEDs, and other inductive or resistive loads. The XL2982SL is functionally and pin-compatible with the industry-standard MIC2982 / UDN2982 source driver family, making it a practical second-source or cost-down alternative.
Each of the eight outputs accepts TTL, DTL, PMOS, or CMOS logic inputs and includes integrated input current-limiting resistors, so the device can be driven directly from a microcontroller or logic port with minimal external components. Integrated output transient-suppression diodes protect the driver when switching inductive loads such as relay and motor coils.
The XL2982SL is a hard-to-find part with little to no authorized-distributor stock, which makes reliable sourcing a challenge for production and maintenance buyers. Pacific Component Xchange specializes in locating obsolete, allocated, and scarce power-management ICs and driver arrays like the XL2982SL. As an independent distributor, we focus on authenticity, traceability, and global shipping, supporting both prototype quantities and volume production requirements.
Because this is a Request-For-Quote item, pricing and lead time are confirmed per order. Submit an RFQ with Pacific Component Xchange for current availability, quantity pricing, and delivery options on the Xinluda XL2982SL and equivalent MIC2982 / UDN2982 source drivers.
It is an 8-channel, high-voltage, high-current source driver array (high-side driver) from Xinluda in a SOP-20-208mil package. It drives loads such as relays, solenoids, lamps, motors, and LEDs from logic-level control signals.
Each of the eight channels can source up to 500 mA, with a supply and output voltage range of 5V to 50V and an output breakdown voltage rated to 50V.
Yes. The XL2982SL is functionally and pin-compatible with the industry-standard MIC2982 / UDN2982 8-channel source driver array, so it can be used as a second-source or cost-down alternative.
The inputs are compatible with TTL, DTL, PMOS, and CMOS logic and include integrated input current-limiting resistors, allowing direct connection to microcontroller or logic outputs.
Yes. It integrates output transient-suppression (clamp) diodes, which protect the device when switching inductive loads such as relay and motor coils.
Yes, it is available through Pacific Component Xchange. Because it is a hard-to-find, Request-For-Quote part with limited authorized-distributor stock, submit an RFQ for current pricing, quantity, and lead time.
