The XL2981 is an 8-channel high-voltage, high-current source driver array from Xinluda. It switches high-power loads of up to 50V and 500mA per channel directly from logic-level control signals, functioning as a high-side (source) driver.

What package options are available for the XL2981?

The XL2981 is offered in an 18-pin plastic DIP and an 18-lead SOP (300mil) package. The companion XD2981 shares the same device architecture.

What logic inputs can drive the XL2981?

Its inputs are compatible with 5V TTL and 5V to 15V CMOS or PMOS logic outputs, allowing it to interface directly with common microcontroller and logic systems.

Can the XL2981 drive inductive loads like relays and solenoids?

Yes. The XL2981 has transient-protected outputs with integral clamp diodes, which makes it suitable for switching inductive loads such as relays, solenoids, and stepper motor windings.

Is the XL2981 hard to find, and how do I get pricing?

The XL2981 is a specialty Xinluda part with limited authorized-distributor availability. Pacific Component Xchange offers it on a Request-for-Quote basis; submit your quantity and target date for current pricing, lead time, and availability.

Is the XL2981 equivalent to the UDN2981?

The XL2981 is a functionally similar high-side source driver array in the same family as classic UDN2981/UDN2982-type devices, sharing the 50V/500mA, 8-channel, clamp-diode-protected architecture. Confirm exact pin-for-pin and electrical compatibility against the datasheet for your design.

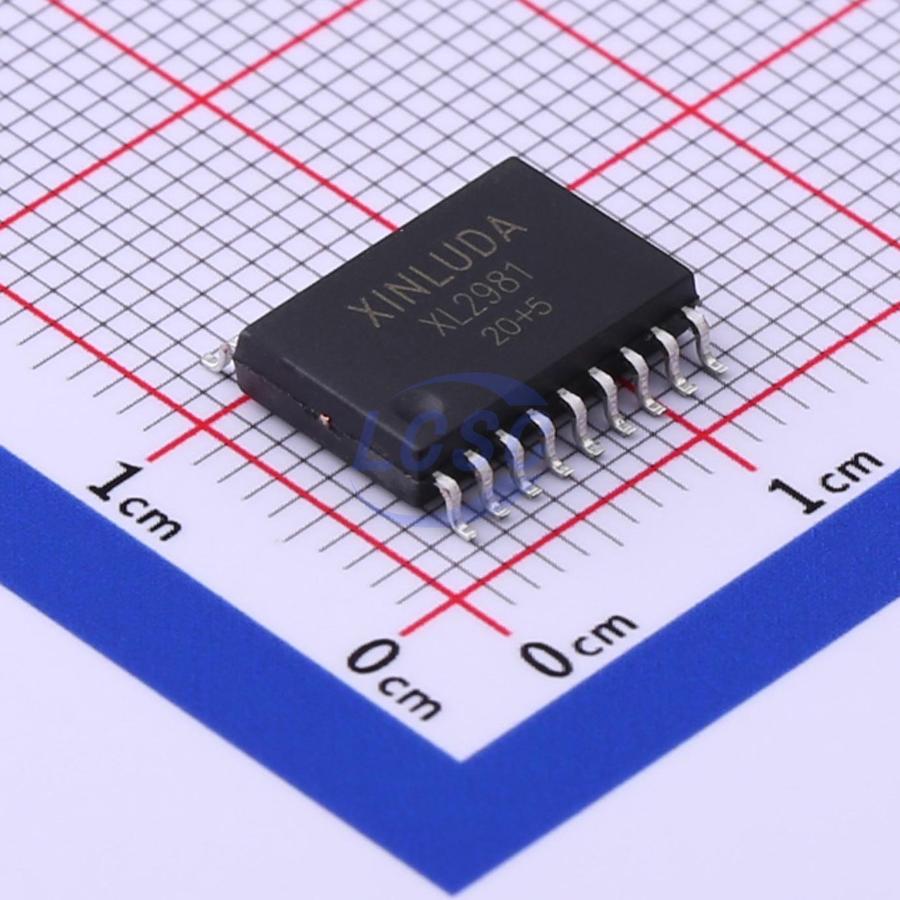

XL2981 – Source Driver Array – Xinluda

The Xinluda XL2981 is an 8-channel high-voltage, high-current source driver array rated to 50V and 500mA per output, with TTL/CMOS/PMOS-compatible inputs and integral clamp diodes. Available in SOP-18 and DIP-18.

Brand:Xinluda

SKU: XL2981 Categories: Electronic Parts, RFQ

Please contact us or add to quote for current pricing and availability.

The XL2981 from Xinluda is an 8-channel high-voltage, high-current source driver array designed to switch high-power loads directly from logic-level control signals. Functionally equivalent to the classic UDN2981/UDN2982-style source drivers, the XL2981 delivers up to 50V and 500mA per output (subject to package power-dissipation limits), making it well suited for driving relays, solenoids, stepper motors, LEDs, and incandescent or other display loads. The companion XD2981 shares the same architecture.

Key Features

8 output channels in a single package
Output voltage to 50V
Output current to 500mA per channel (limited by package power dissipation)
Inputs compatible with 5V TTL and 5V to 15V CMOS / PMOS logic
Transient-protected outputs with integral clamp diodes for inductive-load switching
Available in 18-pin plastic DIP and 18-lead SOP (300mil) packages

Applications

Relay and solenoid drivers
Stepper and small DC motor drive
LED and incandescent display drivers
General-purpose high-side (source) load switching from logic outputs
Industrial and instrumentation control interfaces

Why Source XL2981 from Pacific Component Xchange

The XL2981 is a specialty Xinluda source driver with limited authorized-distributor coverage, which can make it difficult to source through mainstream channels. Pacific Component Xchange is an independent distributor focused on hard-to-find and obsolete power-management ICs and driver arrays. We help engineers and buyers secure allocation-constrained and end-of-life parts with authenticity verification, inspection, and global shipping.

Because the XL2981 is offered on a Request-for-Quote basis, pricing and lead time are confirmed per order against current available stock. Submit an RFQ to Pacific Component Xchange with your required quantity and target date, and our sourcing team will respond with availability, pricing, and traceability options.

Additional Information

Manufacturer	Xinluda
Component Type	8-Channel High-Voltage High-Current Source Driver Array
Output Channels	8
Max Output Voltage	50V
Max Output Current	500mA per channel (package-dissipation limited)
Input Logic Compatibility	5V TTL, 5V-15V CMOS/PMOS
Protection	Transient-protected outputs with integral clamp diodes
Package	SOP-18 (300mil) / DIP-18
Part Status	Active
Availability	Available
