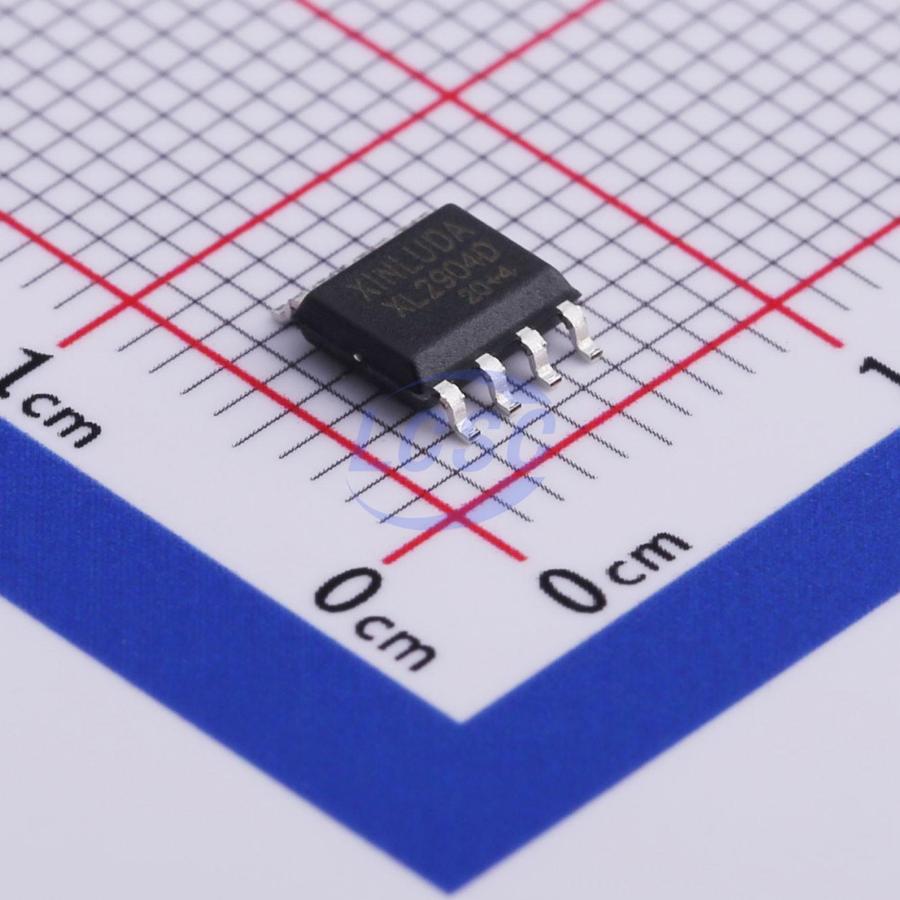

XL2904D – Operational Amplifier – Xinluda

The Xinluda XL2904D is a dual, low-power general-purpose operational amplifier in an SOP-8 package, functionally equivalent to the industry-standard LM2904. Available for RFQ from Pacific Component Xchange.

The Xinluda XL2904D is a dual general-purpose operational amplifier supplied in a space-saving SOP-8 surface-mount package. It belongs to the widely used LM2904 family of single-supply op-amps and is designed to operate from a single power supply over a wide voltage range, making it a flexible building block for analog signal conditioning, sensor interfaces, and low-power instrumentation. The two independent amplifiers share a common supply, and the common-mode input voltage range extends down to the negative rail (ground/VEE), simplifying single-supply designs.

Key Features

• Two independent operational amplifiers in one package
• Single-supply operation: 3 V to 32 V
• Dual (split) supply operation: -16 V to +16 V
• Maximum supply voltage: 32 V (single supply)
• Input offset voltage: 2 mV (typical)
• Input bias current: 50 nA (typical)
• Quiescent supply current: 700 uA (typical)
• Common-mode rejection ratio (CMRR): 70 dB (typical)
• Output source current: up to 40 mA
• Common-mode input range extends to the negative supply rail (ground/VEE)
• Short-circuit protected outputs, internally compensated, with ESD clamps on the inputs
• Operating temperature range: -40 C to +85 C
• Package: SOP-8 (the “D” suffix denotes the SOP-8 surface-mount option)

Applications

• Transducer and sensor signal amplifiers
• Active filters and DC gain blocks
• Single-supply analog signal conditioning
• Industrial and consumer control circuitry
• Conventional op-amp circuits in 5 V digital systems

Why Source XL2904D from Pacific Component Xchange

The XL2904D is a hard-to-find part with little or no authorized-distributor stock available through mainstream channels. Pacific Component Xchange specializes in sourcing scarce, allocated, and obsolete power-management and analog ICs like this one. We support hard-to-find and end-of-life sourcing, rigorous authenticity and counterfeit-avoidance practices, and global shipping to keep your production lines running. Request a quote (RFQ) today and our sourcing team will respond quickly with availability, lead time, and pricing for the Xinluda XL2904D.
