Xinluda (Shenzhen Xinluda Information Technology Co., Ltd.) Electronic Parts
Available — quote-only
Please contact us or request a quote for current pricing and availability.

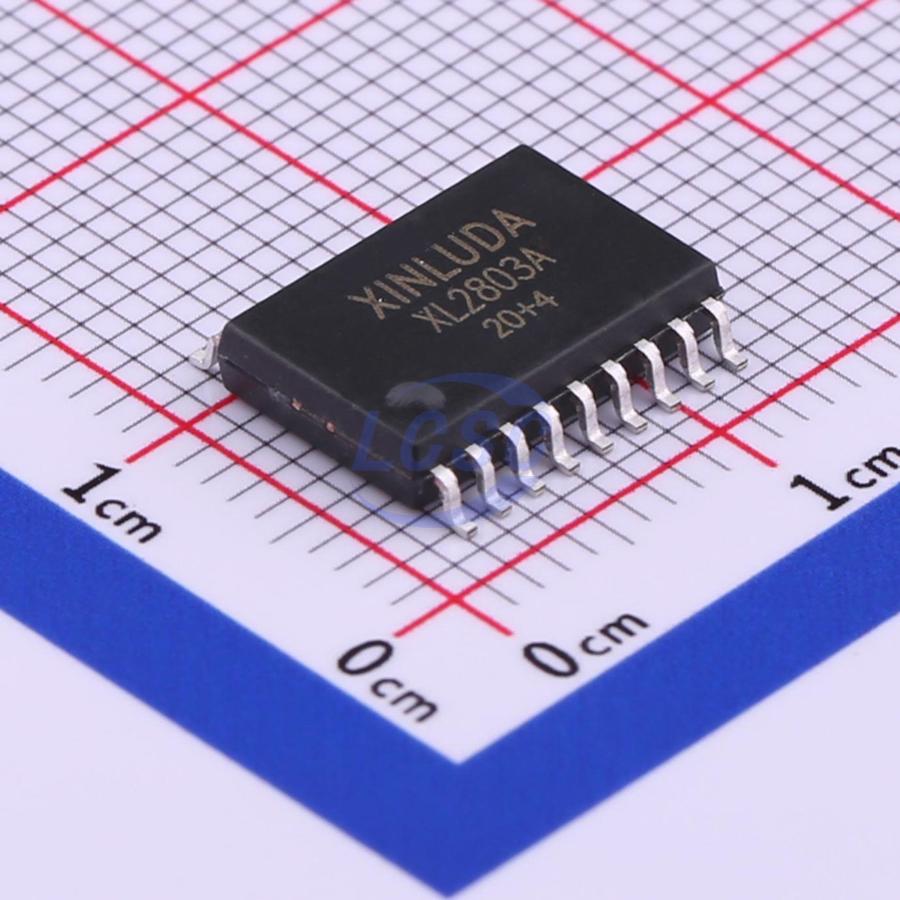

The XL2803AG from Xinluda is an 8-channel high-current/high-voltage NPN Darlington transistor array, a member of the industry-standard ULN2803 family. Each of its eight Darlington pairs can sink up to 500 mA at output voltages up to 50 V, and integrated common-cathode output clamp (flyback) diodes make the device suitable for switching inductive loads such as relays, solenoids, and stepper motors directly from microcontroller, TTL, or 5 V CMOS logic outputs. It is supplied in a SOP-18 (300 mil, wide-body) surface-mount package.
The XL2803AG is a regional Asian-brand part with limited authorized-distributor coverage in North America and Europe, which can make it difficult to source through mainstream channels. Pacific Component Xchange specializes in hard-to-find, end-of-life, and allocation-constrained drivers and power-management ICs. As an independent distributor, we help engineering and procurement teams secure XL2803AG and equivalent ULN2803-family Darlington arrays with rigorous authenticity verification and global shipping. Request a quote (RFQ) today and our sourcing team will respond with current availability, lead time, and pricing for the quantities you need.
The XL2803AG is an 8-channel high-current/high-voltage NPN Darlington transistor array from Xinluda. Each channel can sink up to 500 mA at up to 50 V and includes integrated common-cathode clamp diodes for driving inductive loads.
Yes. The XL2803AG is a member of the industry-standard ULN2803 Darlington-array family, with 8 Darlington channels, 50 V / 500 mA ratings, and 5 V TTL/CMOS-compatible inputs.
The XL2803AG is supplied in a SOP-18 (300 mil, wide-body) surface-mount package.
It is designed to drive inductive and high-current loads including relays, solenoids, stepper and small DC motors, lamps, and LED displays, thanks to its 500 mA per-channel capability and integrated output clamp diodes.
Yes. Each input has a 2.7 ku03a9 series base resistor, making the inputs directly compatible with 5 V TTL and CMOS logic, so it can be driven from standard microcontroller GPIO outputs.
The XL2803AG is a hard-to-find regional part. Pacific Component Xchange sources it as an independent distributor. Submit an RFQ and our team will reply with current availability, lead time, and pricing.
