XL258 – Operational Amplifier – Xinluda

The Xinluda XL258 is a dual general-purpose operational amplifier in an SOP-8 package, operating from a single 3.0 V to 32 V supply with short-circuit-protected outputs. Available for RFQ at Pacific Component Xchange.

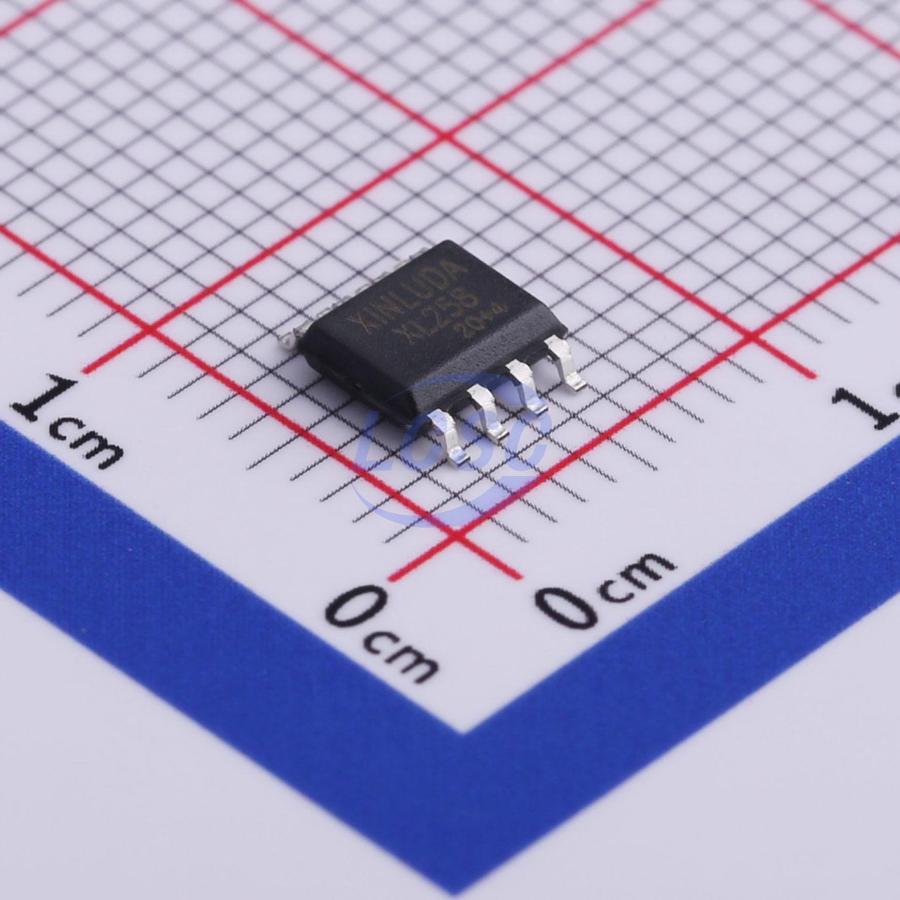

The XL258 from Xinluda is a dual general-purpose operational amplifier supplied in a space-saving SOP-8 package. Designed for single- or split-supply operation, it integrates two independent high-gain op-amp channels with internal frequency compensation and short-circuit-protected outputs, making it a versatile building block for analog signal-conditioning, sensor interface, and control-loop designs. The XL258 belongs to the widely used dual general-purpose op-amp class and is intended as a cost-effective workhorse amplifier for industrial and consumer electronics.

Key Features

• Dual (2-channel) operational amplifier
• Single-supply operation from 3.0 V to 32 V (dual supply -16 V to +16 V)
• Slew rate 0.3 V/us
• Input bias current 150 nA (typical)
• Input offset voltage 7 mV
• Quiescent current 700 uA (typical)
• Output current 20 mA
• Common-mode rejection ratio (CMRR) 85 dB
• Vos temperature coefficient 10 uV/°C
• Internally compensated; true differential input stage
• Short-circuit-protected outputs; ESD protection
• Common-mode range extends to the negative supply
• Operating temperature range -40 °C to +85 °C
• Package: SOP-8

Applications

• DC amplifier modules and signal conditioning
• Traditional operational-amplifier circuits (active filters, integrators, comparators)
• Transducer and sensor amplifiers
• Single-supply analog front-ends
• Industrial control and instrumentation

Why Source XL258 from Pacific Component Xchange

The XL258 is produced by Xinluda and has little to no authorized-distributor presence in Western supply channels, which makes it a hard-to-find part for engineers and buyers outside of Asia-based marketplaces. Pacific Component Xchange specializes in sourcing exactly these kinds of scarce, end-of-life, and allocation-constrained analog ICs and op-amps.

When you submit an RFQ for the XL258, our team taps a global supplier network to locate verified inventory, confirm authenticity, and provide traceability documentation on request. Whether you need a small prototype quantity or production volume of an obsolete or hard-to-source part, we help keep your build on schedule with worldwide shipping. Request a quote for the XL258 today and let Pacific Component Xchange handle the hunt for hard-to-find silicon.
