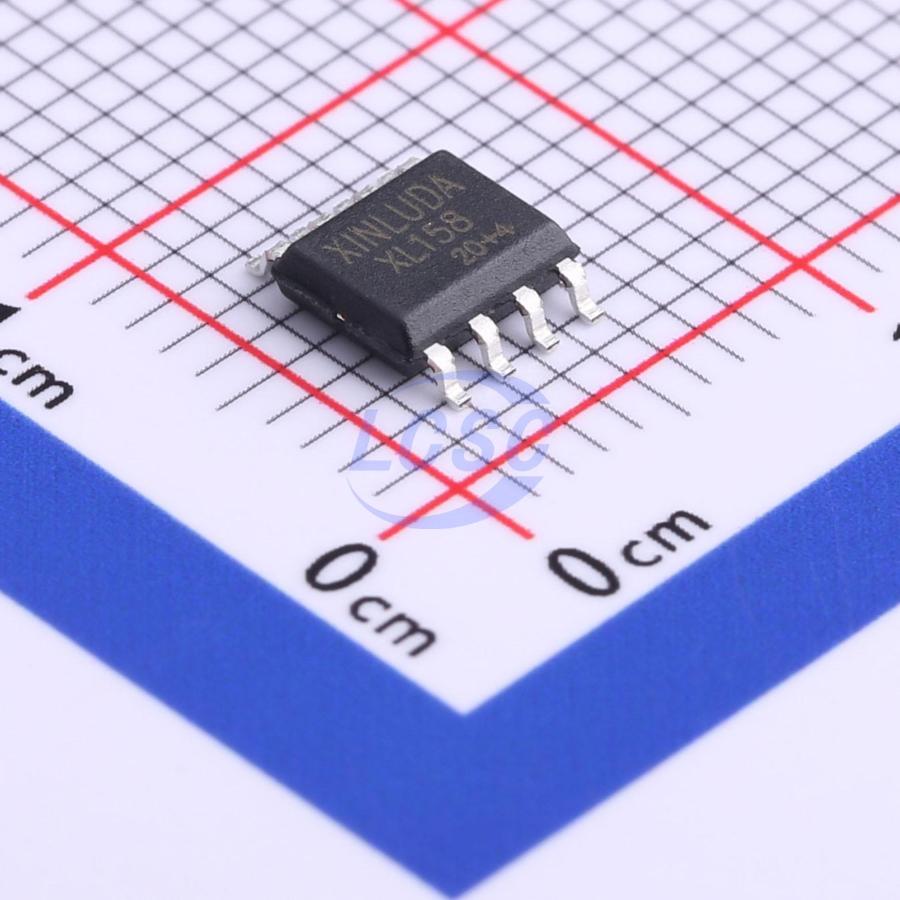

XL158 – Operational Amplifier – Xinluda

The Xinluda XL158 is a low-power dual operational amplifier in an SOP-8 package, featuring two independent, internally frequency-compensated op-amps designed for single-supply operation from 3V to 30V. An LM358-type general-purpose amplifier available by RFQ from Pacific Component Xchange.

The XL158 from Xinluda is a low-power dual operational amplifier comprising two independent, high-gain, internally frequency-compensated op-amps. It is specifically designed to operate from a single power supply over a wide voltage range, with low supply current drain that is largely independent of supply voltage magnitude. The XL158 is a general-purpose amplifier in the widely used LM358 family, supplied in a compact SOP-8 package.

In linear operation, the input common-mode voltage range includes ground and the output can swing close to ground even when running from a single supply. This makes the XL158 well suited to transducer amplifiers, DC gain blocks, and conventional op-amp circuits implemented in single-supply systems, including those powered directly from the standard 5V rail used in logic systems.

Key Features

• Two independent, high-gain, internally frequency-compensated operational amplifiers (dual channel)
• Wide single-supply range: 3V to 30V
• Large DC voltage gain: 100 dB
• Gain bandwidth product (unity gain): 1.1 MHz
• Input offset voltage: 2 mV (typical)
• Input bias current: 20 nA (typical)
• Output drive capability: approximately 40 mA, independent of supply voltage
• Input common-mode range includes ground; output can swing close to ground in single-supply operation
• Package: SOP-8

Applications

• Transducer and sensor signal amplifiers
• DC gain blocks and active filters
• Single-supply analog signal conditioning
• Voltage comparators and level detection
• General-purpose op-amp circuits in 5V logic systems

Why Source XL158 from Pacific Component Xchange

The Xinluda XL158 has little to no authorized-distributor presence in North America, making it a challenge to source through conventional channels. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete power-management ICs, amplifiers, and optocouplers. We help engineers and procurement teams secure scarce parts like the XL158 with rigorous authenticity verification, traceable sourcing, and global shipping.

Because this is a Request-For-Quote (RFQ) item, pricing and lead time are confirmed per order based on quantity and current market availability. Submit an RFQ to Pacific Component Xchange today for current availability, competitive pricing, and a fast quote on the XL158.
