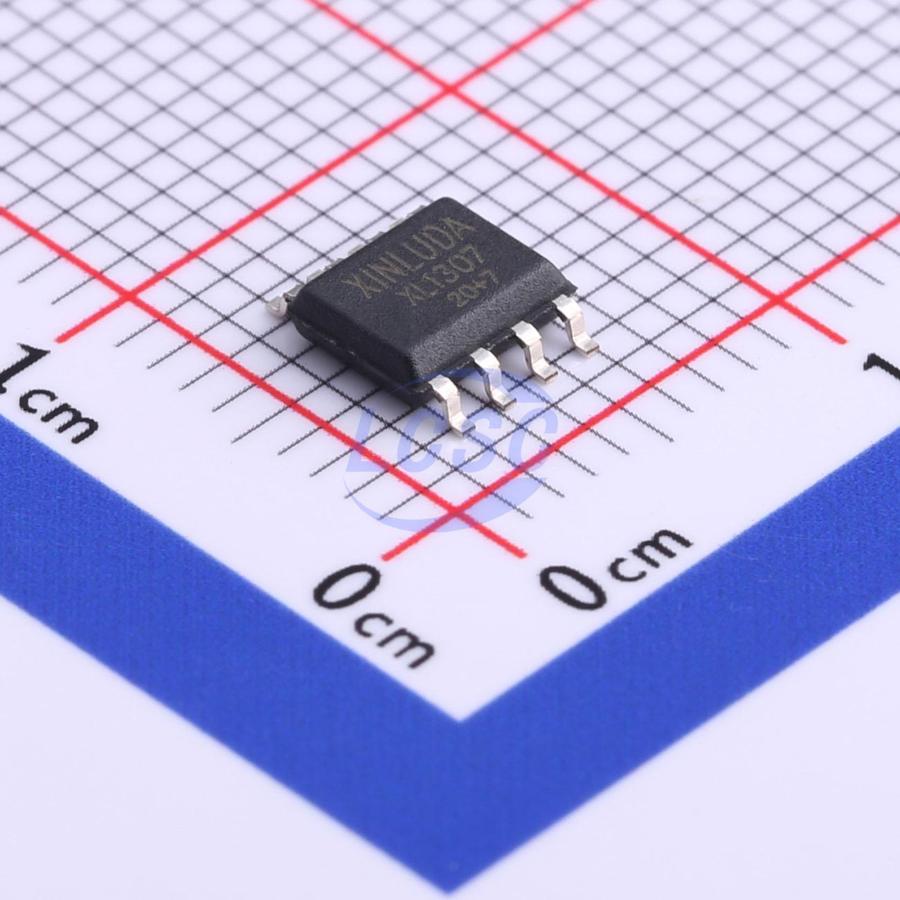

XL1307 – Real-Time Clock (RTC) – Xinluda

The Xinluda XL1307 is a low-power I2C serial real-time clock (RTC) and calendar in an SOP-8 package, featuring 56 bytes of battery-backed NV SRAM, a programmable square-wave output, and automatic battery backup switching.

The Xinluda XL1307 is a low-power I²C serial real-time clock (RTC) and calendar IC supplied in a compact SOP-8 package. It is functionally and pin-compatible with the industry-standard DS1307 architecture, making it a convenient drop-in option for time-keeping subsystems. The clock/calendar tracks seconds, minutes, hours, day-of-week, date, month, and year, with automatic end-of-month adjustment and leap-year compensation valid through the year 2100. Time can be presented in either 24-hour or 12-hour AM/PM format.

Communication is handled entirely over the bidirectional I²C bus, simplifying the interface to a host microcontroller. The device includes 56 bytes of general-purpose battery-backed non-volatile SRAM with no write-cycle limits, a programmable square-wave output signal, and an automatic power-fail detection circuit that switches to a backup battery so timekeeping continues uninterrupted during a main-supply loss.

Key Features

• I²C bidirectional serial interface
• Real-time clock/calendar: seconds, minutes, hours, day, date, month, and year with automatic leap-year compensation (valid to 2100)
• 24-hour or 12-hour format with AM/PM indicator
• 56 bytes of battery-backed NV SRAM with no write limits
• Programmable square-wave output signal
• Automatic power-failure detection and battery backup switching
• Operating supply voltage: 4.5 V to 5 V
• Industrial operating temperature range: -40°C to +85°C
• RoHS-compliant SOP-8 package

Applications

• Embedded timekeeping for microcontroller systems
• Industrial control and metering equipment
• Data loggers and event time-stamping
• Consumer electronics and appliances
• Networking and communications equipment

Why Source XL1307 from Pacific Component Xchange

The Xinluda XL1307 can be difficult to obtain through authorized North American and European distribution channels. As an independent distributor specializing in hard-to-find power-management ICs, clocks, and optocouplers, Pacific Component Xchange helps engineers and procurement teams secure this and other scarce or end-of-life components. We focus on authenticity, careful sourcing, and reliable global shipping so you can keep your builds on schedule. Request a quote (RFQ) for the XL1307 today and our team will respond with current availability and lead time.
