The Xinluda XL1040 is a high-speed Controller Area Network (CAN) bus transceiver that serves as the interface between a CAN protocol controller and the differential two-wire physical bus. Supplied in a compact SOIC-8 package, it is designed for high-speed CAN communication at data rates up to 1 Mbps and is fully compatible with the ISO 11898 standard, making it well suited to automotive and industrial networking where robust, reliable differential signaling is required.
The XL1040 combines a differential bus receiver with wide common-mode range for strong electromagnetic immunity, a low-current standby mode with remote wake-up capability via the bus, and integrated protection that helps the device survive demanding field conditions. With support for a large number of connected nodes on a single bus and low quiescent current, it is a practical building block for distributed control and sensor networks.
The Xinluda XL1040 is a specialty CAN transceiver with limited authorized-distributor availability, which can make it difficult to source through conventional channels. Pacific Component Xchange specializes in hard-to-find and end-of-life power-management and interface ICs, helping engineers and procurement teams secure parts that are scarce or obsolete on the open market.
Every XL1040 we supply is sourced through vetted channels with a focus on authenticity and quality, and we ship globally to support production lines, prototype builds, and aftermarket service needs. Because this is a Request-For-Quote item, pricing and lead time are confirmed per order based on current sourcing. Submit an RFQ to Pacific Component Xchange today for live availability, quantity pricing, and delivery options on the Xinluda XL1040.
The XL1040 is a high-speed CAN (Controller Area Network) bus transceiver from Xinluda. It acts as the interface between a CAN protocol controller and the physical two-wire bus, supporting data rates up to 1 Mbps in compliance with ISO 11898.

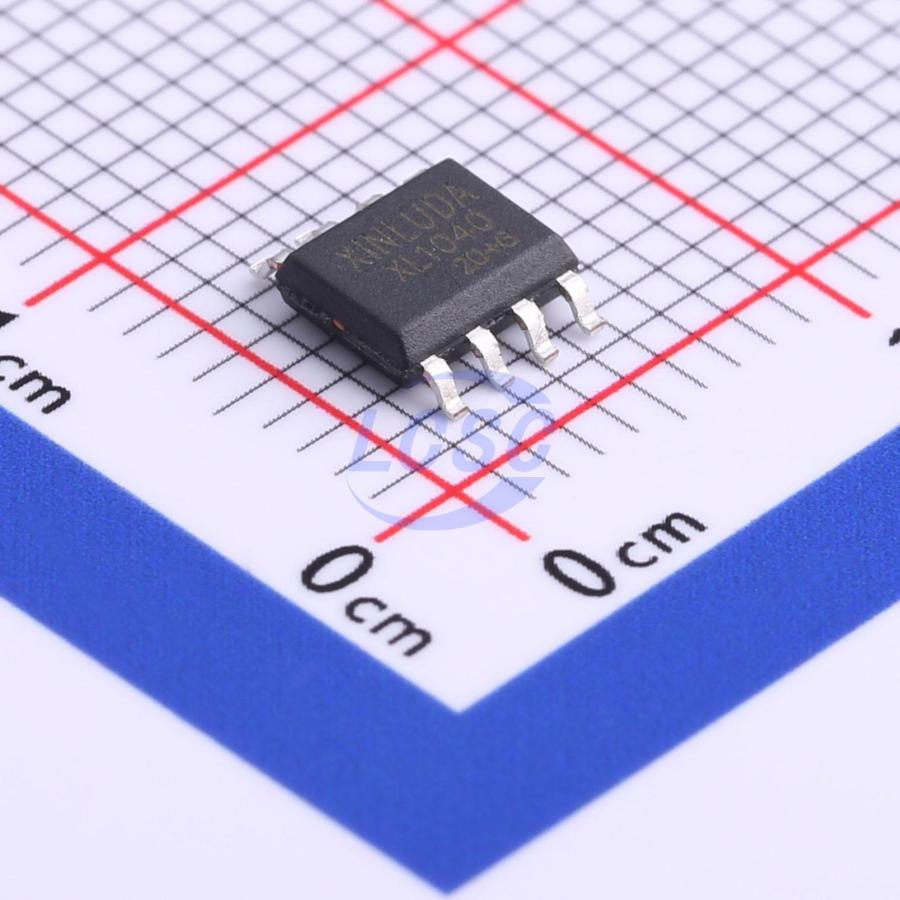

The XL1040 is supplied in an SOIC-8 (8-pin small outline) package.
The XL1040 operates from a 4.5 V to 5.5 V supply and supports CAN communication at data rates up to 1 Mbps (1 MBaud).
The XL1040 includes thermal (over-temperature) protection, short-circuit protection, and a TXD dominant timeout function. Its bus pins tolerate -27 V to +40 V for added robustness.
Yes, the XL1040 has limited authorized-distributor availability. Pacific Component Xchange specializes in sourcing hard-to-find interface and power-management ICs like the XL1040. Submit an RFQ for current availability, pricing, and lead time.
The XL1040 is rated for an operating temperature range of -40 C to +85 C, suitable for automotive and industrial environments.
