XH2596-3.3 – DC-DC Converter – Xinluda

The Xinluda XH2596-3.3 is a monolithic 3A step-down (buck) switching regulator with a fixed 3.3V output, 4.5V-40V input range, and 150kHz operation in a TO-263-5 package. Available now for RFQ at Pacific Component Xchange.

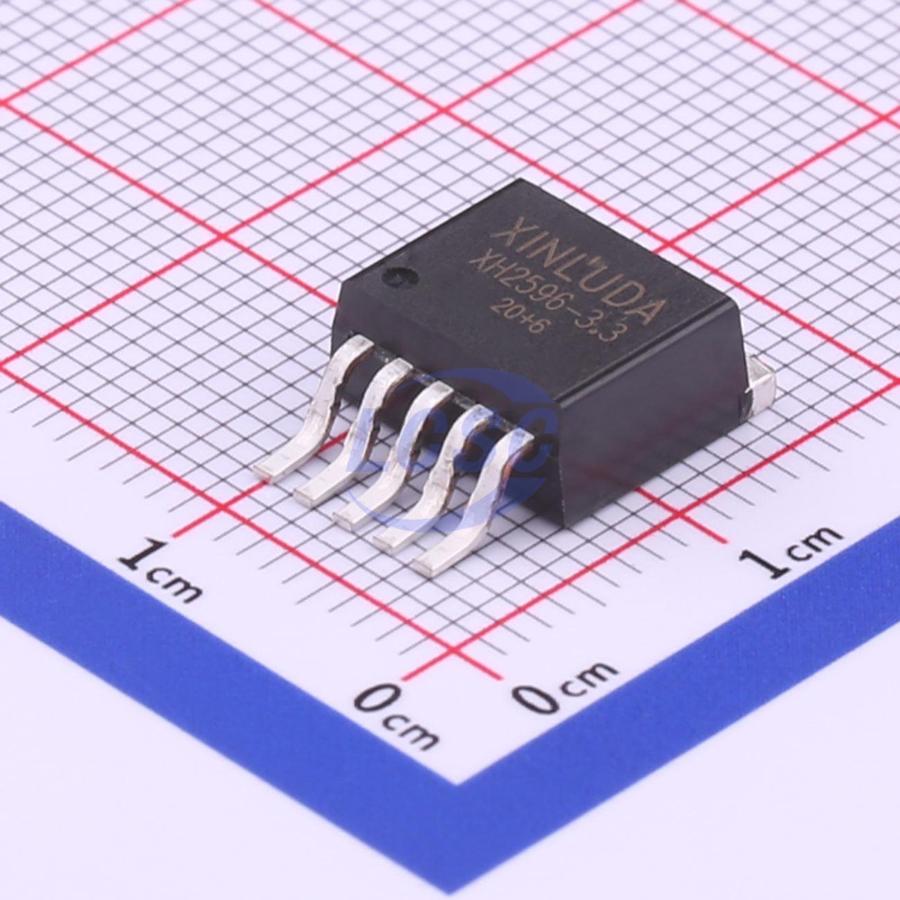

The Xinluda XH2596-3.3 is a monolithic integrated circuit that provides all of the active functions required for a step-down (buck) switching regulator. It delivers a fixed 3.3V output and is capable of driving a 3A load with excellent line and load regulation. Operating from a wide 4.5V to 40V input range with a 150kHz fixed-frequency internal oscillator, the XH2596-3.3 minimizes external component count and allows the use of smaller filter components than lower-frequency regulators. The device is a pin-compatible alternative within the popular 2596 step-down regulator family and is supplied here in the surface-mount TO-263-5 package.

Key Features

• Fixed 3.3V output voltage
• Up to 3A output load current
• Wide 4.5V to 40V input voltage range
• 150kHz fixed-frequency internal oscillator
• ±4% output voltage tolerance over specified line and load conditions
• ±15% oscillator frequency tolerance
• Monolithic step-down switching regulator with integrated power switch
• On-chip switch current limiting and thermal shutdown protection
• External shutdown control with typical 80µA standby current
• TO-263-5 surface-mount package

Applications

• On-board point-of-load 3.3V rails
• Simple high-efficiency linear-regulator replacement
• Industrial and instrumentation power supplies
• Consumer electronics and set-top equipment
• Battery and adapter-powered systems
• Distributed power architectures requiring a local step-down stage

Why Source XH2596-3.3 from Pacific Component Xchange

The XH2596-3.3 is an independent-distribution part with little to no authorized-distributor stock, which can make it difficult to source through mainstream channels. Pacific Component Xchange specializes in hard-to-find and end-of-life power-management ICs, helping engineers and buyers secure the parts their builds depend on. We focus on authenticity, supply-chain traceability, and responsive service, with global shipping to keep your production on schedule. Whether you need a single reel or volume quantities, request a quote (RFQ) from Pacific Component Xchange today and our sourcing team will respond quickly with availability and pricing for the XH2596-3.3.
