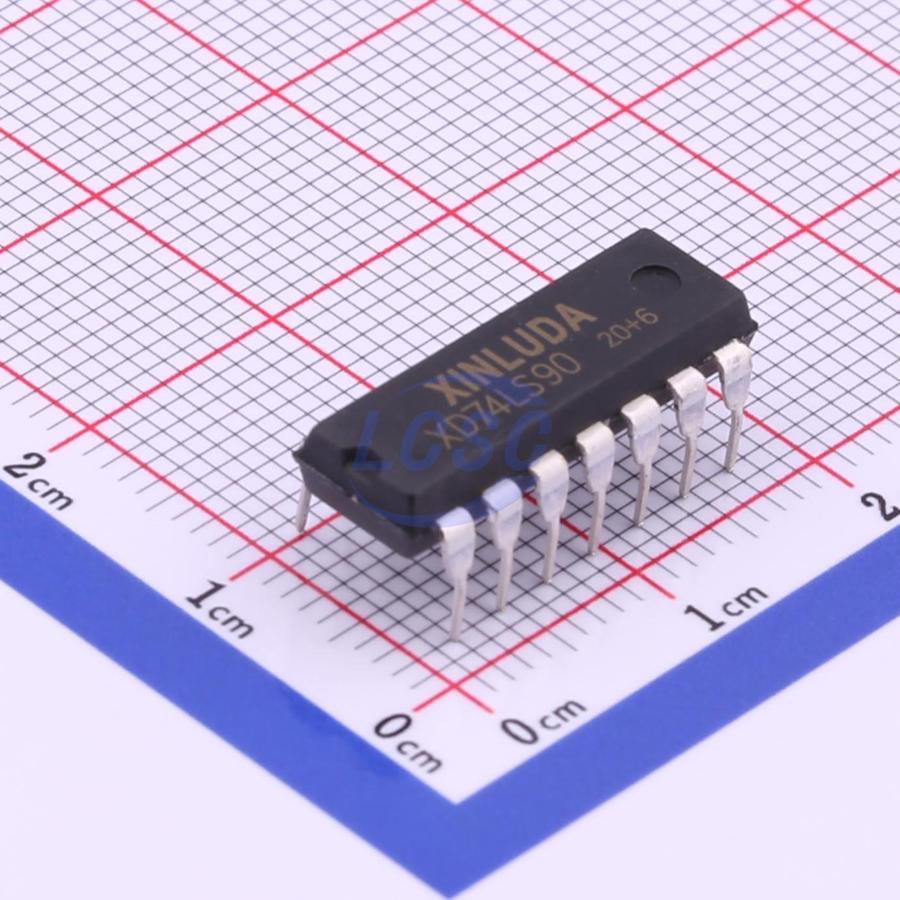

XD74LS90 – Decade/Binary Counter – Xinluda

The Xinluda XD74LS90 is a 74LS-series TTL decade, divide-by-twelve and binary counter in a DIP-14 package, built from four master-slave flip-flops for BCD and frequency-division applications.

The XD74LS90 from Xinluda is a TTL-compatible decade, divide-by-twelve and binary counter belonging to the popular 74LS logic family. It integrates four master-slave flip-flops together with additional gating to form an independent divide-by-two counter and a three-stage divide-by-five (binary) counter, giving designers flexible BCD counting and frequency-division capability in a single low-cost device.

Because the two counter sections are brought out separately, the XD74LS90 can be wired as a BCD decade counter, a bi-quinary divider, or a divide-by-five stage simply by choosing which clock input is driven and how the outputs are interconnected. Gated zero-reset (R0) inputs and gated set-to-nine (R9) inputs make it well suited to BCD nine’s-complement applications and clean counter initialization.

Key Features

• 74LS-series TTL decade, divide-by-twelve and binary counter
• Four master-slave flip-flops providing a divide-by-two section plus a three-stage divide-by-five section
• Configurable as BCD decade, bi-quinary, or binary divider
• Gated zero-reset (R0) and gated set-to-nine (R9) inputs
• Operating supply voltage: 4.75 V to 5.25 V
• Maximum count rate up to approximately 32 MHz
• Typical propagation delay on the order of 16 ns
• Operating temperature range: 0 °C to +70 °C
• Through-hole DIP-14 package

Applications

• BCD decade counting and digital display drivers
• Frequency division and clock prescaling
• Industrial counting and timing circuits
• Pulse counting and event counters
• Educational and prototyping digital logic projects

Why Source XD74LS90 from Pacific Component Xchange

The XD74LS90 is a hard-to-find logic IC with little to no authorized-distributor stock, which can stall production runs and legacy-board maintenance. Pacific Component Xchange specializes in sourcing scarce and obsolete logic and power-management components like the XD74LS90, with a focus on authenticity, traceability, and global shipping. Whether you need a single tube for an end-of-life build or volume quantities for ongoing production, our team can locate verified inventory and lock in pricing. Request a quote (RFQ) today and let Pacific Component Xchange handle the hard-to-find sourcing so your project stays on schedule.
