The XD74LS86 is a quadruple 2-input exclusive-OR (XOR) gate logic IC manufactured by Xinluda. Built on the proven 74LS (low-power Schottky TTL) logic family, it integrates four independent 2-input XOR gates into a single 14-pin dual in-line package, providing a compact solution for parity generation, comparison, and arithmetic logic functions. Each gate produces a logic HIGH output only when its two inputs differ, making the device a foundational building block in digital design.
The XD74LS86 is a specialty 74LS-series part with limited authorized-distributor availability. As an independent distributor focused on hard-to-find logic and power-management components, Pacific Component Xchange helps engineers and buyers secure the parts they need when standard channels fall short. We support legacy, obsolete, and allocation-constrained sourcing, perform authenticity verification on incoming inventory, and ship worldwide to keep your production lines and prototypes moving.
Pricing on the XD74LS86 is quote-based. Request a quote (RFQ) from Pacific Component Xchange today and our sourcing team will confirm availability, lead time, and pricing for your required quantity.
The XD74LS86 is a 74LS-series TTL logic IC from Xinluda that contains four independent 2-input exclusive-OR (XOR) gates in a 14-pin DIP package. Each gate outputs a logic HIGH only when its two inputs differ.
Yes. The XD74LS86 is Xinluda's implementation of the industry-standard 74LS86 (also known as 7486) quad 2-input XOR gate, sharing the same pinout, function, and 74LS TTL electrical characteristics.

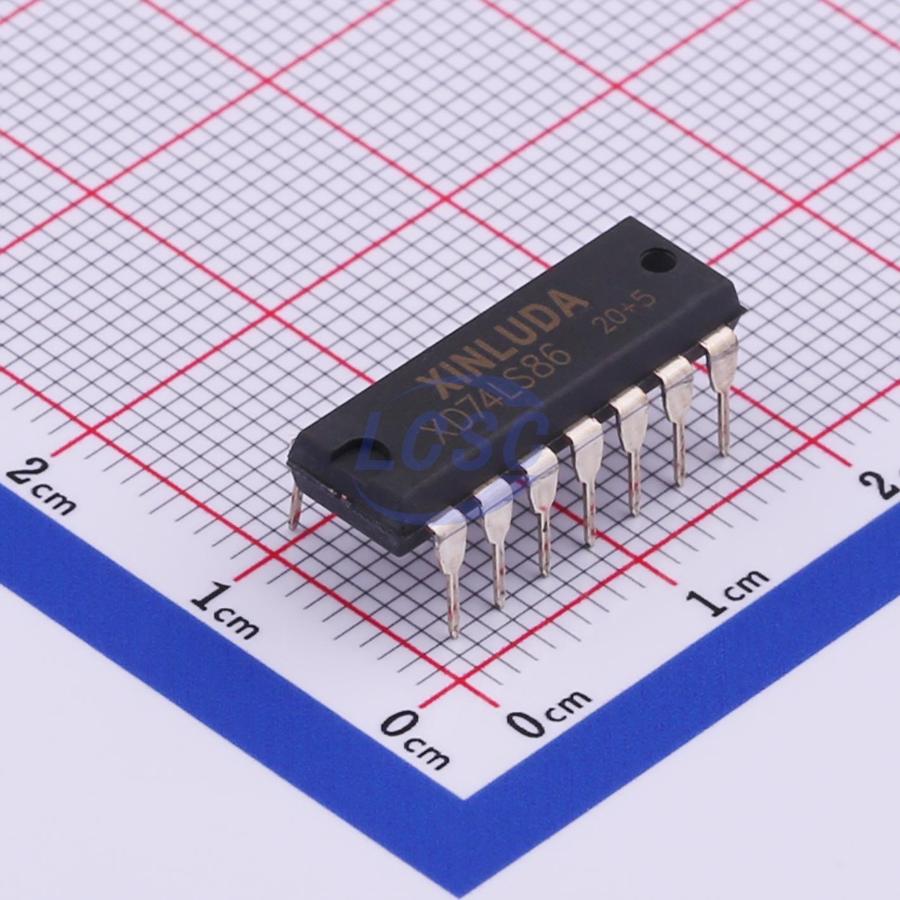

The XD74LS86 is supplied in a 14-pin DIP (dual in-line) through-hole package.
It operates from a 4.75 V to 5.25 V supply (nominal 5 V) over a 0 u00b0C to +70 u00b0C commercial temperature range.
For the 74LS86 family, the maximum propagation delay at 5 V with a 15 pF load is 23 ns (LOW-to-HIGH) and 21 ns (HIGH-to-LOW); typical values are around 17 to 18 ns.
Typical uses include parity generation and checking, digital comparators, binary adders and arithmetic logic, controlled inverters, and general combinational logic in prototyping and education.
The XD74LS86 is offered on a request-for-quote (RFQ) basis. Submit an RFQ to Pacific Component Xchange with your required quantity and we will confirm availability, lead time, and pricing.
