XD74LS85 – 4-Bit Magnitude Comparator – Xinluda

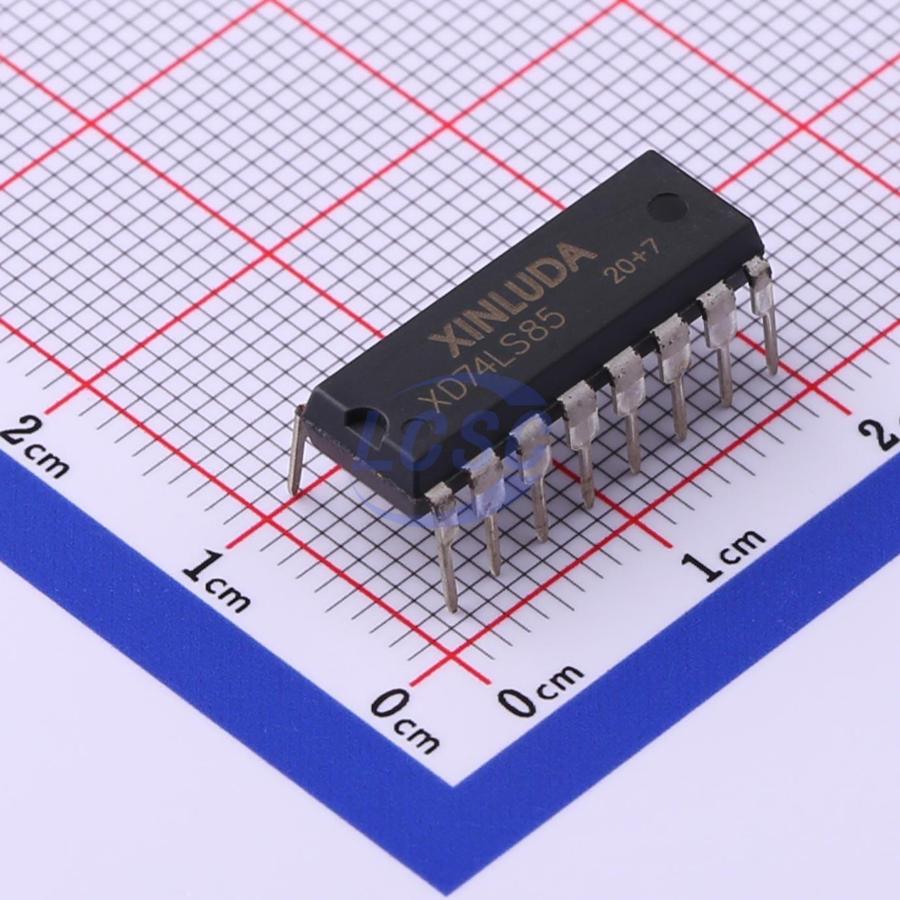

The Xinluda XD74LS85 is a 4-bit magnitude comparator in a DIP-16 package, part of the 74LS TTL logic family. It compares two 4-bit binary or BCD words and provides three fully decoded outputs (A>B, A=B, A<B) with full cascade expandability.

The Xinluda XD74LS85 is a 4-bit magnitude comparator from the popular 74LS low-power Schottky TTL logic family, supplied in a through-hole DIP-16 package. It performs comparison of two 4-bit words of straight binary or straight BCD (8-4-2-1) code, producing three fully decoded decision outputs that indicate whether the A word is greater than, equal to, or less than the B word.

Designed for straightforward digital design, the XD74LS85 is fully expandable to any number of bits without external gates by cascading multiple devices. This makes it a dependable building block for arithmetic, control, and decision logic in legacy and maintenance-driven designs.

Key Features

• 4-bit magnitude comparator (compares two 4-bit words A and B)
• Three fully decoded outputs: A > B, A = B, and A < B
• Compares straight binary and straight BCD (8-4-2-1) codes
• Fully expandable / cascadable to any word length without external gates
• Supply voltage range 4.75 V to 5.25 V
• Output drive: I_OL = 8 mA, I_OH = 400 µA
• Operating temperature up to 70 °C (commercial range)
• 74LS low-power Schottky TTL family; RoHS compliant
• Through-hole DIP-16 package

Applications

• Digital comparison and decision logic
• Arithmetic and ALU support circuits
• Address and code recognition / decoding
• Industrial and embedded control systems
• Legacy equipment repair and production maintenance

Why Source XD74LS85 from Pacific Component Xchange

The XD74LS85 from Xinluda has little to no authorized-distributor stock, making it a challenge to source through conventional channels. Pacific Component Xchange specializes in hard-to-find and obsolete logic, power-management ICs, and optocouplers. As an independent distributor, we help engineers and procurement teams secure the components they need to keep production lines running and legacy systems supported.

Every order is backed by our commitment to authenticity and quality assurance, with global shipping available to support your schedule. Because this is a Request-For-Quote item, contact Pacific Component Xchange to request a quote for current availability, lead time, and pricing on the XD74LS85.
