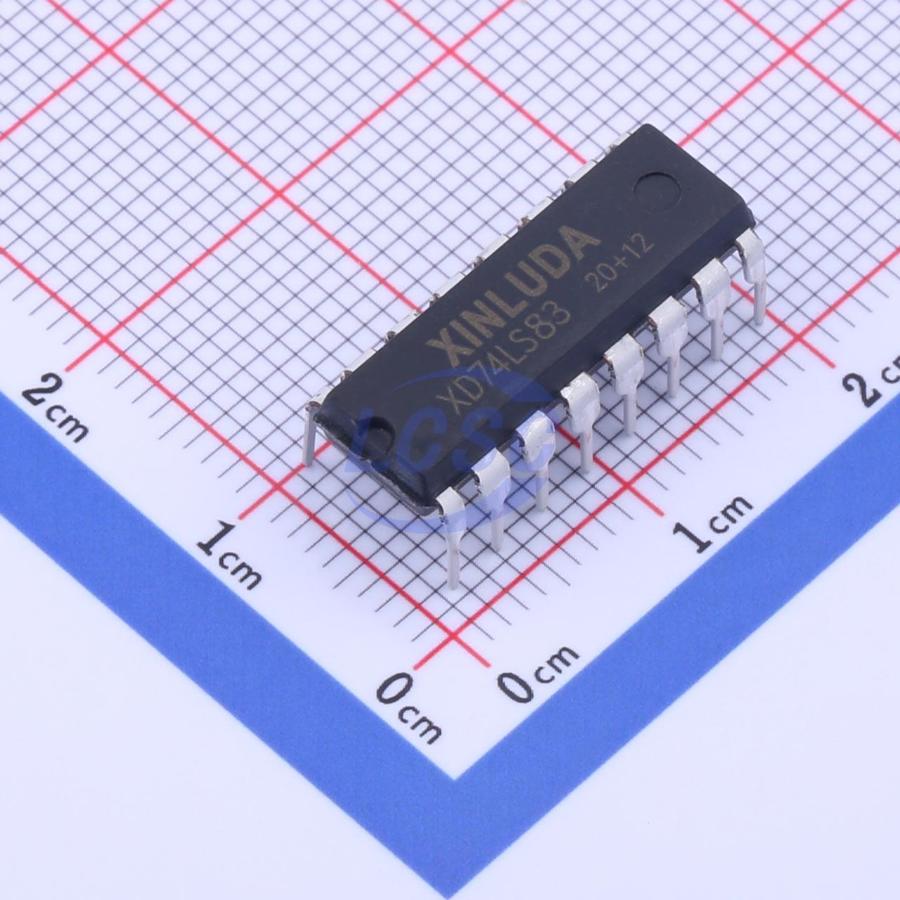

XD74LS83 – 4-Bit Binary Full Adder – Xinluda

The XD74LS83 from Xinluda is a 4-bit binary full adder with internal carry look-ahead, part of the 74LS TTL logic family, supplied in a 16-pin DIP package. Available for RFQ through Pacific Component Xchange.

The XD74LS83 is a 4-bit binary full adder manufactured by Xinluda, functionally compatible with the industry-standard 74LS83 / 74LS83A from the 74LS low-power Schottky TTL logic family. It performs the addition of two 4-bit binary words, accepting a carry input and generating four sum outputs plus a carry output. An internal carry look-ahead (fast carry) structure minimizes the carry propagation delay, making the device well suited to high-speed arithmetic and cascaded multi-stage adder designs.

Key Features

• 4-bit binary full adder with internal carry look-ahead (fast carry)
• Adds two 4-bit binary words (A1-A4, B1-B4) plus carry input (C0)
• Provides four sum outputs (S1-S4) and a carry output (C4)
• 74LS (low-power Schottky TTL) logic family
• Standard 5 V supply operation
• Operating temperature range 0 C to +70 C
• 16-pin DIP (DIP-16) through-hole package
• Drop-in functional equivalent to standard 74LS83 / SN74LS83A devices

Applications

• Arithmetic logic and adder circuits in legacy TTL systems
• Cascaded multi-bit binary addition (chaining for 8-bit, 16-bit and wider words)
• Address and offset calculation in discrete-logic designs
• Educational and laboratory digital-logic projects
• Repair and maintenance of legacy industrial and instrumentation boards

Why Source XD74LS83 from Pacific Component Xchange

The XD74LS83 is a niche logic IC with limited authorized-distributor presence. Pacific Component Xchange specializes in sourcing scarce, end-of-life, and allocation-constrained semiconductors and logic components like this one. Whether you need a handful of pieces for a repair or production volume for a legacy build, our global supplier network helps you secure authentic parts.

We focus on authenticity and traceability, offering inspection and verification to reduce counterfeit risk, plus worldwide shipping to keep your production on schedule. Because the XD74LS83 is an RFQ item, pricing and lead time are quoted per request. Contact Pacific Component Xchange today to request a quote for the XD74LS83 and let our sourcing team locate the quantity you need.
