XD74LS193 – Synchronous 4-Bit Up/Down Binary Counter – Xinluda

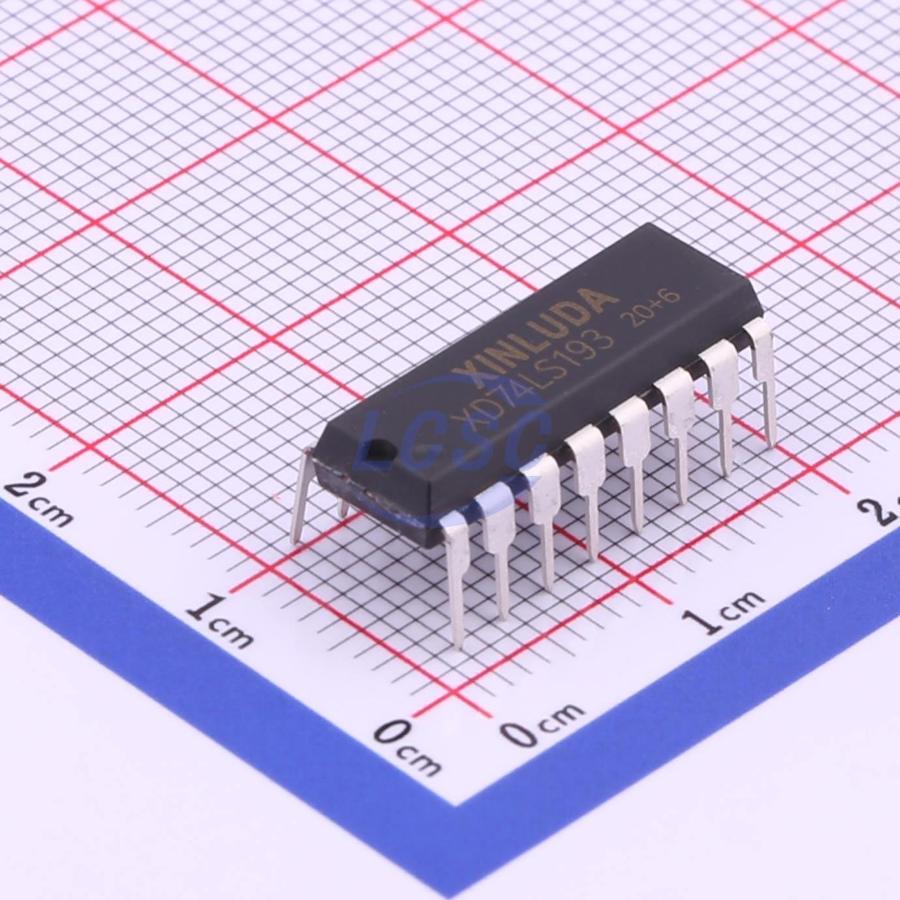

The Xinluda XD74LS193 is a synchronous 4-bit up/down binary counter with dual clocks and an independent clear input, supplied in a DIP-16 through-hole package. A drop-in equivalent to the classic SN74LS193/DM74LS193.

The XD74LS193 from Xinluda is a synchronous 4-bit up/down binary counter built on the proven 74LS TTL architecture. It features dual clock inputs (one for count-up, one for count-down) and a completely independent clear input, making it a versatile building block for programmable timing, frequency division, and event-counting circuits. The XD74LS193 is functionally equivalent to the industry-standard SN74LS193 and DM74LS193 devices.

All four master-slave flip-flops are clocked synchronously so that the outputs change together, eliminating the output spikes commonly associated with asynchronous (ripple) counters. The counter is fully programmable: each output can be preset to any state by entering data at the parallel load inputs. Internal cascade circuitry, together with the borrow and carry outputs, allows multiple XD74LS193 devices to be chained for wider count ranges without external gating.

Key Features

• Synchronous 4-bit up/down (reversible) binary counter
• Dual clock inputs (separate count-up and count-down) with independent clear
• Individual preset for each flip-flop (fully programmable / parallel load)
• Internal cascade circuitry with borrow and carry outputs for chaining counters
• Synchronous operation eliminates output spikes from asynchronous counting
• Operating supply voltage range: 4.75 V to 5.25 V
• Operating temperature range: 0 C to +70 C
• DIP-16 through-hole package

Applications

• Programmable modulo-N frequency dividers
• Up/down event and position counters
• Cascaded multi-stage binary counters
• Digital timing and control logic
• Legacy TTL system repair and retrofit designs

Why Source XD74LS193 from Pacific Component Xchange

The Xinluda XD74LS193 sees little or no authorized-distributor stock through mainstream channels, which can stall production and maintenance schedules. Pacific Component Xchange specializes in hard-to-find and obsolete power-management ICs and logic devices, sourcing components like the XD74LS193 through a vetted global supplier network. Every order is backed by our authenticity and quality-assurance process to guard against counterfeit and out-of-spec parts, with worldwide shipping to keep your build on track. Request a quote (RFQ) today and our sourcing team will confirm availability, lead time, and pricing for the quantities you need.
