XD74LS154 – 4-Line to 16-Line Decoder/Demultiplexer – Xinluda

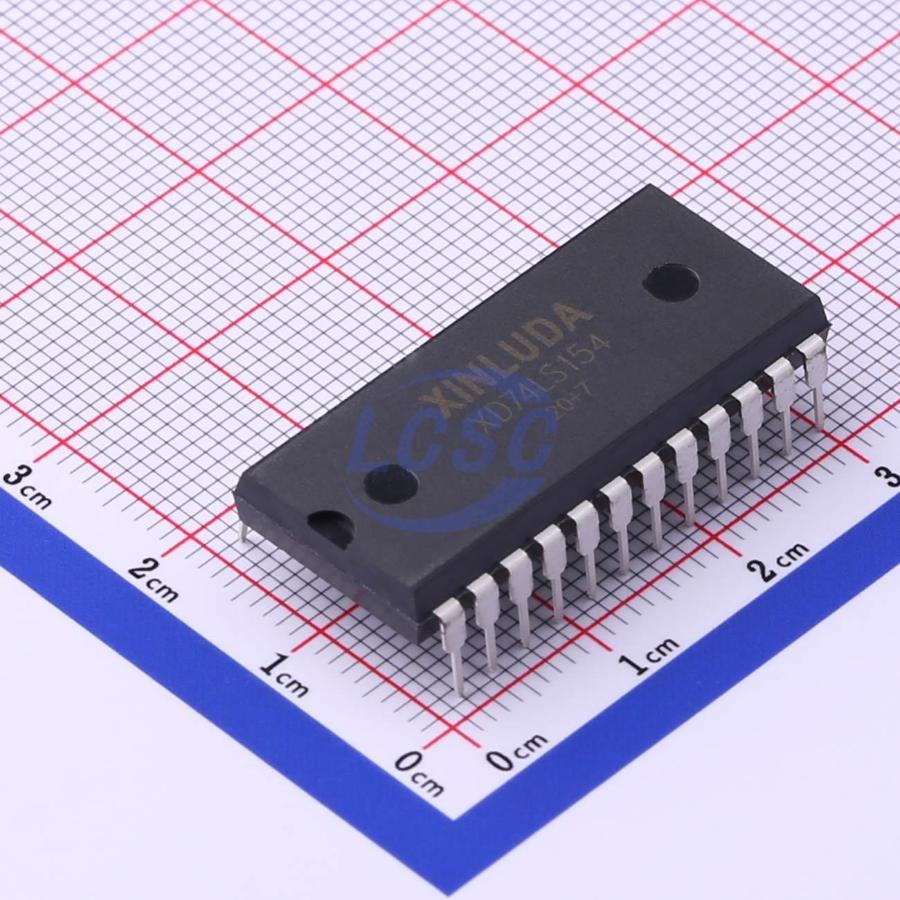

The Xinluda XD74LS154 is a 4-line to 16-line decoder/demultiplexer from the 74LS TTL logic family, supplied in a 24-pin DIP package. It decodes four binary-coded inputs into one of sixteen mutually exclusive outputs and is well suited to memory address decoding.

The XD74LS154 from Xinluda is a 4-line to 16-line decoder/demultiplexer built on low-power Schottky TTL (74LS) circuitry. It decodes four binary-coded inputs into one of sixteen mutually exclusive active-LOW outputs when both strobe inputs (G1 and G2) are LOW. When either strobe input is HIGH, all sixteen outputs are HIGH, allowing the device to also operate as a 1-of-16 demultiplexer by routing data applied to one strobe input to the addressed output line. All inputs are buffered, and input clamping diodes minimize transmission-line ringing to simplify system design.

Key Features

• 4-line to 16-line decoder / 1-of-16 demultiplexer function
• Sixteen mutually exclusive active-LOW outputs from four binary-coded address inputs
• Two active-LOW strobe (enable) inputs, G1 and G2, for cascading and demultiplexing
• Low-power Schottky 74LS TTL logic family
• Supply voltage (Vcc) range: 4.75 V to 5.25 V
• Operating temperature range: 0°C to +70°C
• Buffered inputs with input clamping diodes for noise immunity
• 24-pin plastic DIP (PDIP-24) package

Applications

• Memory and I/O address decoding
• 1-of-16 data demultiplexing / signal routing
• Chip-select and bank-select generation in microprocessor systems
• Keyboard, display, and matrix scanning
• Legacy digital systems and equipment repair/retrofit

Why Source XD74LS154 from Pacific Component Xchange

The Xinluda XD74LS154 is an RFQ part with little to no authorized-distributor availability, making it difficult to source through mainstream channels. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete power-management ICs, logic, and optocouplers. We help engineers and buyers locate scarce inventory, mitigate counterfeit risk through inspection and authenticity verification, and ship globally on flexible terms.

Whether you need a handful of pieces for a repair or volume quantities for a production run, our team can source the XD74LS154 to your requirements. Request a quote (RFQ) today and our sourcing specialists will respond with availability, lead time, and pricing.
