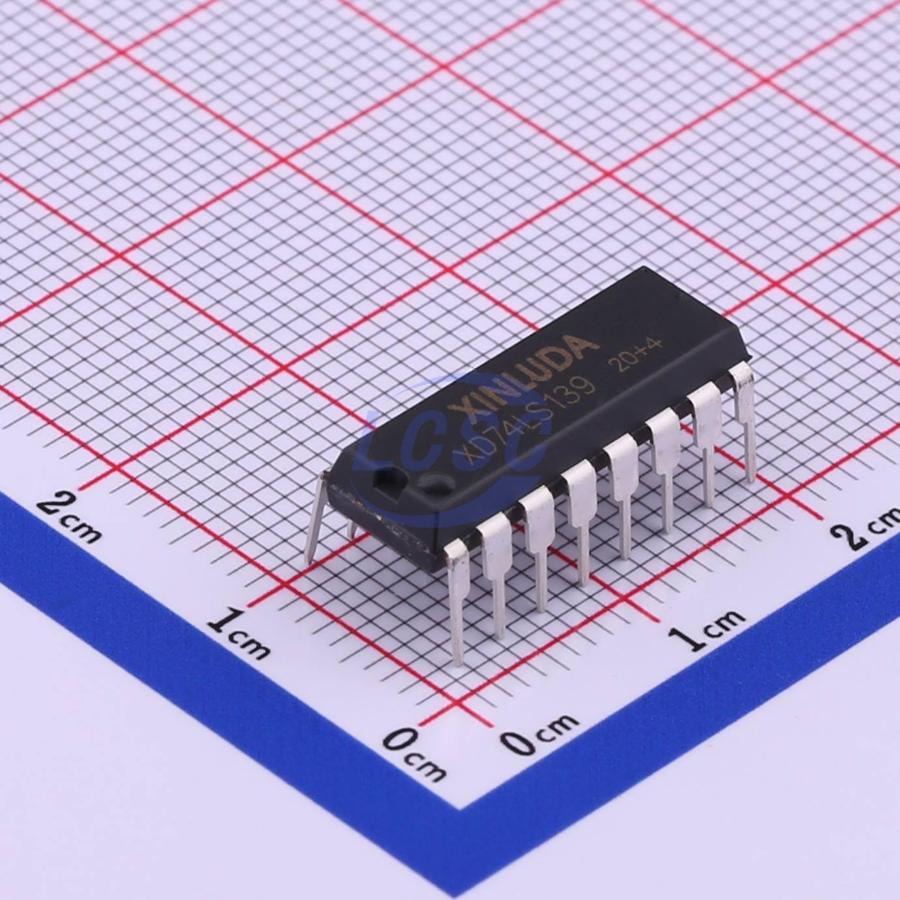

XD74LS139 – Dual 2-to-4 Line Decoder/Demultiplexer – Xinluda

The XD74LS139 from Xinluda is a dual 2-line to 4-line decoder/demultiplexer built on Schottky-clamped TTL technology, supplied in a DIP-16 package for memory-decoding and data-routing designs.

The XD74LS139 is a dual 2-line to 4-line decoder/demultiplexer manufactured by Xinluda Information Technology Co., Ltd. It integrates two fully independent decoder sections in a single package, each accepting a 2-bit binary input and an active-low enable to produce four mutually exclusive active-low outputs. Built on Schottky-clamped TTL (LS) technology, the device targets high-performance memory-decoding and data-routing applications where short propagation delays are required.

Key Features

• Dual (two) fully independent 2-to-4 line decoder/demultiplexer circuits in one package
• Schottky-clamped TTL-MSI technology for high performance
• Active-low enable input that can serve as a data line in demultiplexing applications
• Fully buffered inputs, each presenting a single normalized load to its driver
• High-performance Schottky diode input clamps to suppress line ringing and simplify system design
• Recommended supply voltage range of 4.75 V to 5.25 V (5 V nominal)
• Operating temperature range of 0 °C to +70 °C
• Supplied in a 16-pin DIP-16 package

Applications

• High-performance memory address decoding
• Data routing and demultiplexing in digital systems
• Chip-select and bank-select generation
• General-purpose TTL logic and glue logic
• Industrial control and instrumentation boards

Why Source XD74LS139 from Pacific Component Xchange

The XD74LS139 is a specialty logic IC with little to no authorized-distributor stock, which can make it difficult to procure through conventional channels. Pacific Component Xchange specializes in hard-to-find and obsolete power-management ICs, logic, and optocouplers, giving engineers and buyers a reliable path to components that are otherwise unavailable. Every order is backed by our authenticity and quality-assurance processes to help protect your build against counterfeit and substandard parts. We support global shipping and flexible quantities for both prototype and production needs.

Because this is a Request-for-Quote item, pricing and lead time are confirmed per order. Contact Pacific Component Xchange today to request a quote on the XD74LS139 and let our sourcing team locate verified inventory for your project.
