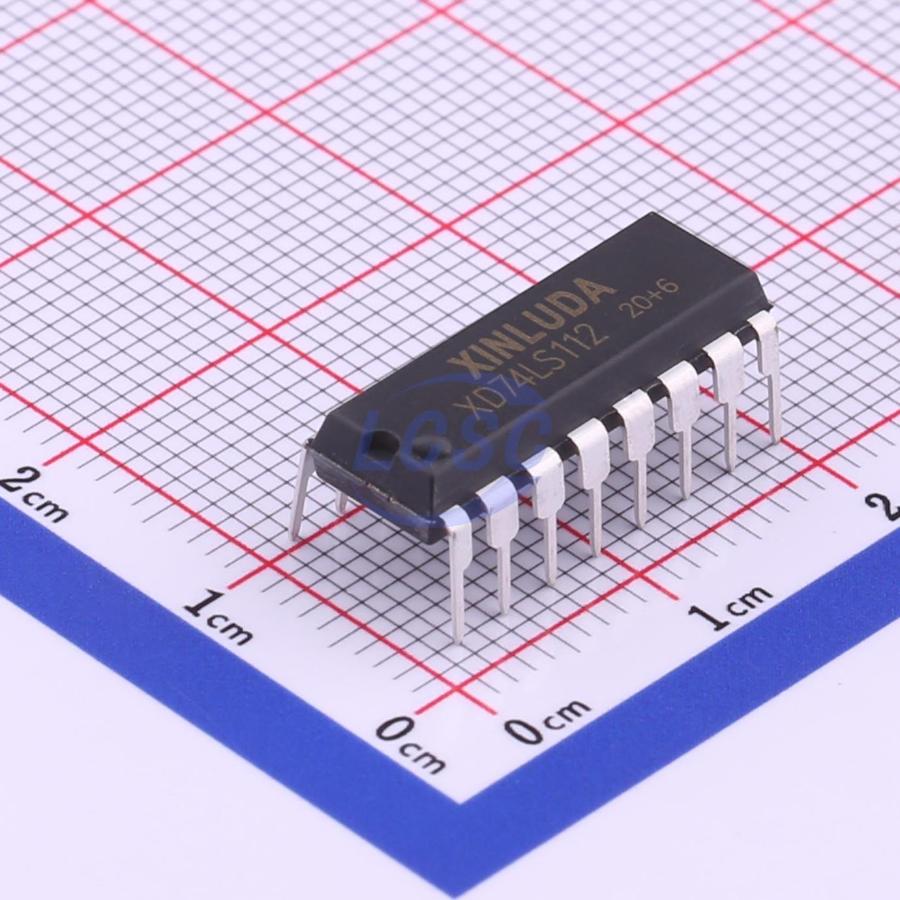

XD74LS112 – Dual J-K Flip-Flop – Xinluda

The Xinluda XD74LS112 is a dual J-K negative-edge-triggered flip-flop with individual preset and clear inputs, supplied in a 16-pin DIP package. Part of the classic 74LS TTL logic family, it is available for RFQ from Pacific Component Xchange.

The XD74LS112 from Xinluda is a dual J-K negative-edge-triggered flip-flop with preset and clear, built on the long-established 74LS (low-power Schottky TTL) logic family. Each device integrates two independent flip-flops, each with its own J, K, clock, asynchronous preset (set), and clear inputs plus complementary Q and Q-bar outputs. Data present at the J and K inputs is transferred to the outputs on the negative (falling) edge of the clock pulse, making the XD74LS112 a reliable building block for counters, frequency dividers, shift registers, and general sequential logic.

Supplied in a through-hole 16-pin DIP package, the XD74LS112 is a drop-in functional equivalent to industry-standard 74LS112 devices and interfaces directly with TTL, NMOS, and CMOS logic levels.

Key Features

• Dual J-K negative-edge-triggered flip-flops in a single package
• Asynchronous preset (set) and clear inputs on each flip-flop
• Data transferred to outputs on the falling edge of the clock
• Complementary Q and Q-bar outputs
• 74LS (low-power Schottky TTL) logic family
• Supply voltage range: 4.75 V to 5.25 V (commercial)
• Typical maximum clock frequency: 30 MHz
• Commercial operating temperature range: 0 °C to 70 °C
• 16-pin DIP through-hole package

Applications

• Binary and modulo counters
• Frequency division and clock-divider circuits
• Shift registers and serial data handling
• State machines and general sequential logic
• Education, prototyping, and legacy board repair

Why Source XD74LS112 from Pacific Component Xchange

The XD74LS112 is a niche, hard-to-find logic IC with little to no authorized-distributor coverage in Western markets. Pacific Component Xchange specializes in sourcing exactly these kinds of obscure and end-of-supply-chain parts. As an independent distributor, we help engineers and buyers secure the XD74LS112 and other 74LS-series logic devices when mainstream channels come up empty. Every order is backed by our authenticity and quality-verification process, and we ship globally to keep your production lines and repair programs moving. Request a quote (RFQ) today and our sourcing team will confirm availability, lead time, and pricing for the quantity you need.
