What is the XD74LS04?

The XD74LS04 is a hex inverter logic IC from Xinluda. It contains six independent inverter (NOT) gates built on the 74LS low-power Schottky TTL logic family, supplied in a DIP-14 through-hole package.

Is the XD74LS04 compatible with the standard 74LS04 / SN74LS04?

The XD74LS04 follows the industry-standard 74LS04 hex-inverter function and pinout, so it is generally a functional equivalent to parts such as the SN74LS04N and DM74LS04N. Always confirm electrical and timing parameters against your design's datasheet requirements before substitution.

What package does the XD74LS04 come in?

It is supplied in a 14-pin DIP (DIP-14) through-hole package, suitable for prototyping, repair, and legacy production assembly.

What supply voltage and temperature range does the XD74LS04 operate at?

The XD74LS04 operates from a 4.75 V to 5.25 V supply over an operating temperature range of 0 u00b0C to +70 u00b0C.

What is the propagation delay of the XD74LS04?

Per the 74LS04 specification, propagation delay (both tpLH and tpHL) is a maximum of 10 ns at a 15 pF load and a maximum of 15 ns at a 50 pF load, measured at VCC = 5 V.

Why is the XD74LS04 only available by RFQ at Pacific Component Xchange?

The XD74LS04 is an offshore-brand part with limited authorized-distributor stock. As an independent distributor of hard-to-find components, Pacific Component Xchange sources it on request. Submit an RFQ and we will provide current availability, lead time, and pricing.

Can Pacific Component Xchange ship the XD74LS04 internationally?

Yes. Pacific Component Xchange ships globally and can support both small quantities and larger production volumes. Contact us with your required quantity for a shipping and lead-time quote.

XD74LS04 – Hex Inverter Logic IC – Xinluda

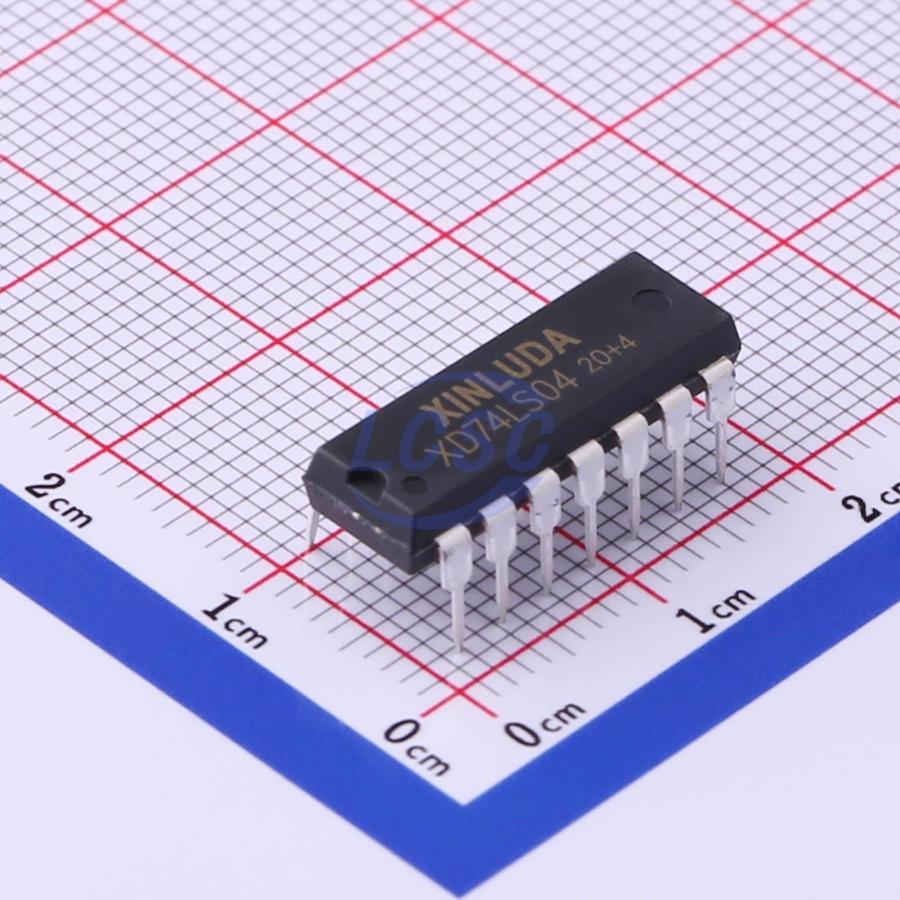

The Xinluda XD74LS04 is a 74LS-family hex inverter containing six independent inverter (NOT) gates in a through-hole DIP-14 package. Available for RFQ from Pacific Component Xchange.

Brand:Xinluda

SKU: XD74LS04 Categories: Electronic Parts, RFQ

Please contact us or add to quote for current pricing and availability.

The XD74LS04 from Xinluda is a low-power Schottky (74LS) TTL hex inverter integrating six independent inverter (NOT) gates on a single chip. Each gate performs a logic inversion, making it a fundamental building block for digital signal conditioning, clock buffering, and combinational logic. Housed in a robust through-hole DIP-14 package, the XD74LS04 is well suited to prototyping, education, repair, and legacy production where through-hole assembly is required.

Key Features

Six independent inverter (NOT) gates in one device
74LS low-power Schottky TTL logic family
Supply voltage range: 4.75 V to 5.25 V
Propagation delay: 10 ns max at 15 pF load (15 ns max at 50 pF), V_CC = 5 V
Input high level (V_IH): 2 V min; input low level (V_IL): 0.8 V max
Output high level (V_OH): 2.7 V min (3.4 V typ); output low level (V_OL): 0.5 V max
Output drive: 8 mA sink (low), 0.4 mA source (high)
Operating temperature: 0 °C to +70 °C
DIP-14 through-hole package; RoHS compliant

Applications

Signal inversion and logic-level conditioning
Clock and oscillator buffering
Combinational and glue logic in digital systems
Computer, digital control, and communications equipment
Education, prototyping, and legacy board repair

Why Source XD74LS04 from Pacific Component Xchange

The XD74LS04 is an offshore-brand logic IC with limited authorized-distributor availability, which can make it difficult to source through mainstream channels. Pacific Component Xchange is an independent distributor specializing in hard-to-find and obsolete power-management ICs, optocouplers, and logic components. We help engineers and buyers secure parts that are no longer readily stocked, with a focus on authenticity, traceability, and quality assurance. Whether you need a single reel for a production run or buffer stock to keep a legacy design alive, our global sourcing network and worldwide shipping can support your bill of materials. Request a quote (RFQ) for the XD74LS04 today and our team will respond with current availability, lead time, and pricing.

Additional Information

Manufacturer	Xinluda
Component Type	Hex Inverter (6 NOT gates) – Logic IC
Logic Family	74LS (Low-Power Schottky TTL)
Number of Inverters	6 independent
Supply Voltage	4.75 V to 5.25 V
Propagation Delay	10 ns max (15 pF) / 15 ns max (50 pF), VCC=5 V
Input Levels	V_IH 2 V min / V_IL 0.8 V max
Output Levels	V_OH 2.7 V min (3.4 V typ) / V_OL 0.5 V max
Output Drive	8 mA sink / 0.4 mA source
Operating Temperature	0 °C to +70 °C
Package	DIP-14 (Through-Hole)
Part Status	Active
Availability	Available
