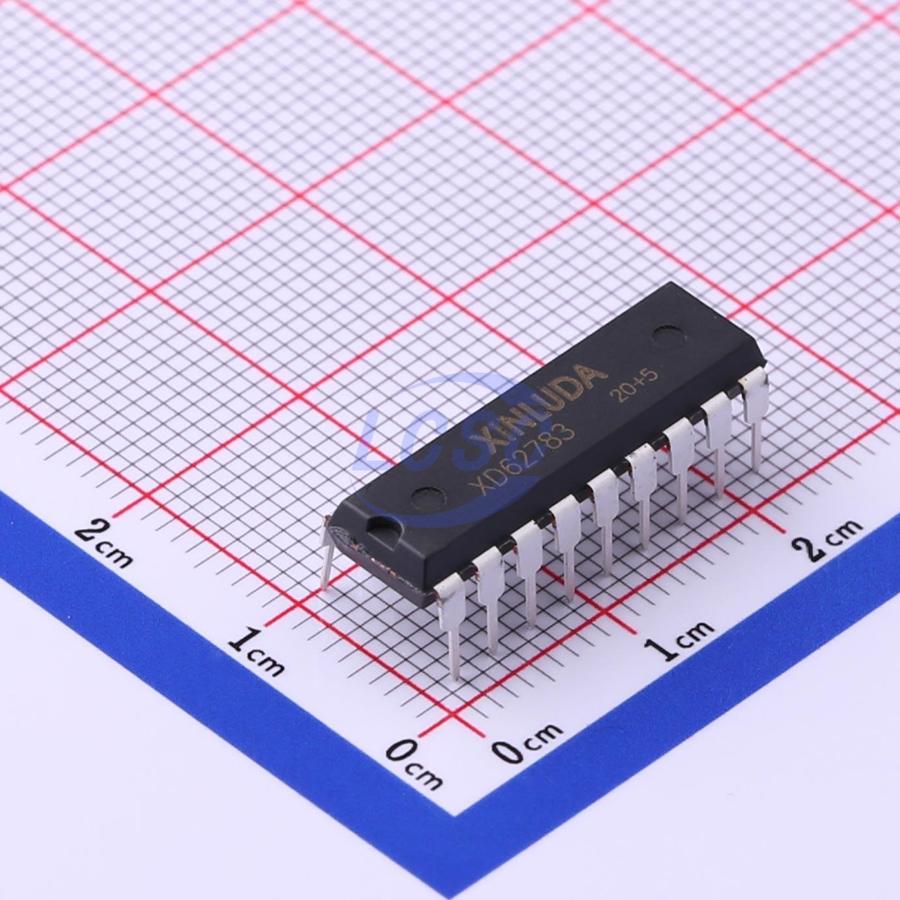

The XD62783 from Xinluda is an 8-channel high-voltage, high-current source-type DMOS transistor array supplied in a through-hole DIP-18 package. Each of its eight outputs can source up to 500 mA and withstand a supply/output voltage up to 50 V, making the device well suited to interfacing low-level logic with high-current peripheral loads. An integrated clamp diode on every output protects the driver when switching inductive loads, and the device is specifically designed for fluorescent display, relay, hammer, and lamp driver applications. The XD62783 is a pin- and function-compatible alternative to the widely used TD62783-class source drivers, and is also offered as the XL62783 in an SOP-18 surface-mount package.
The XD62783 is a specialty Xinluda driver with limited authorized-distributor coverage, which can make it difficult to procure reliably for production and maintenance builds. Pacific Component Xchange specializes in hard-to-find and obsolete power-management ICs and driver arrays, helping engineers and buyers secure parts like the XD62783 when standard channels come up short. Every order is backed by our authenticity and quality screening, and we ship globally to keep your line running. This is a Request-For-Quote item: submit an RFQ today for current availability, lead time, and pricing on the XD62783 and equivalent source drivers.
The XD62783 is an 8-channel high-voltage, high-current source-type DMOS transistor array from Xinluda, supplied in a DIP-18 package. It is designed for fluorescent display applications and to drive high-current loads such as relays, lamps, and hammers from low-level logic signals.
Per the Xinluda datasheet, the device supports VCC up to 50 V (max) and each of the eight channels can source up to -500 mA (max).
Yes. The XD62783 includes a built-in clamp diode on each output, which protects the device when switching inductive loads such as relays and solenoids.
They are the same 8-channel DMOS source-driver design in different packages: the XD62783 is the DIP-18 through-hole version, while the XL62783 is the SOP-18 surface-mount version.
The XD62783 is a pin- and function-compatible source driver in the TD62783 class. Always confirm electrical and mechanical compatibility against your application's datasheet requirements before substitution.
Pacific Component Xchange stocks and sources hard-to-find parts like the XD62783 on a Request-For-Quote basis. Submit an RFQ for current availability, lead time, and pricing.
