XD5615 – Digital-to-Analog Converter (DAC) – Xinluda

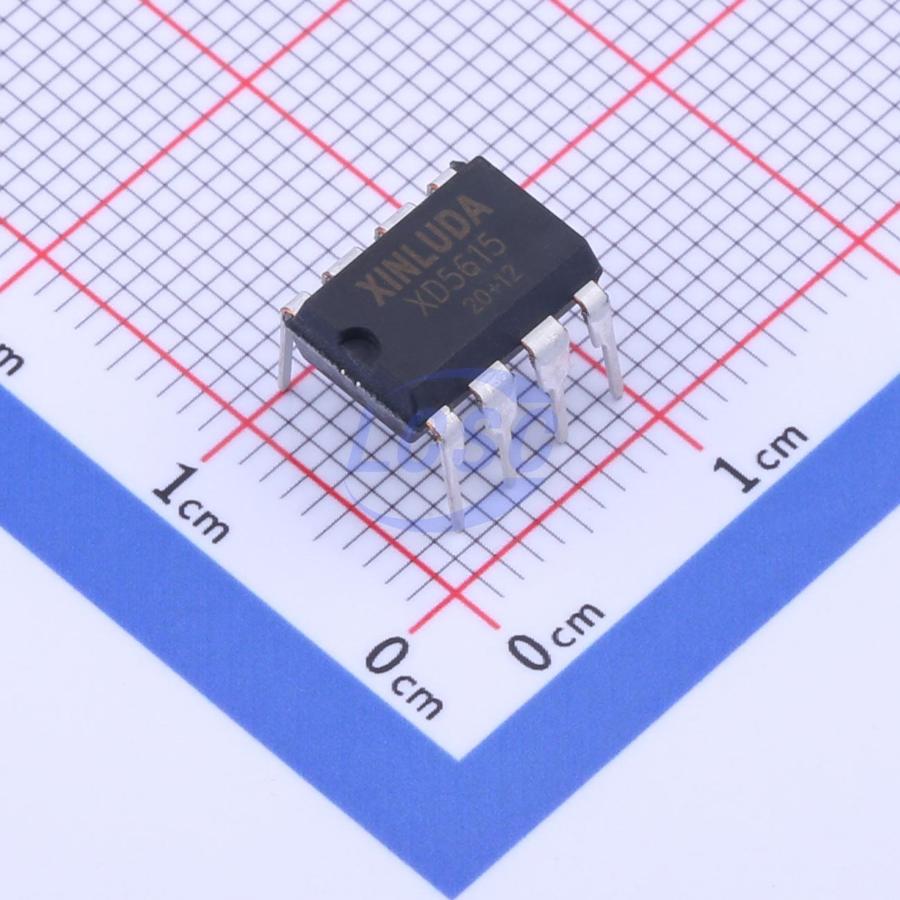

The Xinluda XD5615 is a 10-bit serial-input (SPI/QSPI/Microwire-compatible) voltage-output digital-to-analog converter in a DIP-8 package, operating from a single 4.5V to 5.5V supply.

The XD5615 from Xinluda is a 10-bit, serial-input, voltage-output digital-to-analog converter (DAC) designed to operate from a single 4.5V to 5.5V supply. It accepts data through a 3-wire serial interface compatible with SPI, QSPI, and Microwire protocols, making it well suited to microcontroller-driven analog control loops, programmable references, and instrumentation set-point generation. The device delivers a buffered voltage output spanning twice the applied reference voltage, settles in approximately 12.5 microseconds, and draws only about 230µA of quiescent supply current.

Key Features

• 10-bit resolution, single-channel voltage-output DAC
• Single-supply operation from 4.5V to 5.5V
• Output settling time of approximately 12.5µs (typ)
• Low quiescent supply current of approximately 230µA
• Integral nonlinearity of 1 LSB
• 3-wire serial interface compatible with SPI, QSPI, and Microwire
• Buffered voltage output (up to 2x reference voltage)
• Internal power-on reset
• Operating temperature range of -40°C to +85°C
• DIP-8 package; RoHS compliant

Applications

• Microcontroller-controlled analog set-point and bias generation
• Programmable voltage references
• Digital gain and offset adjustment
• Industrial process and instrumentation control
• Sensor signal conditioning and calibration

Why Source XD5615 from Pacific Component Xchange

The XD5615 is a niche 10-bit DAC with limited authorized-distributor availability, which makes it a frequent target for production shortages and last-time-buy situations. Pacific Component Xchange specializes in hard-to-find and obsolete power-management ICs, data converters, and optocouplers, helping engineers and buyers keep builds on schedule when mainstream channels come up empty.

Every XD5615 we supply is sourced through vetted channels with authenticity and quality screening to protect your production line from counterfeit or substandard parts. We support global shipping and flexible quantities, from prototype counts to full production volumes. Because this is a request-for-quote item, contact Pacific Component Xchange for current pricing, lead time, and availability — submit an RFQ and our sourcing team will respond promptly.
