XD4066 – Analog Switch / Multiplexer – Xinluda

The Xinluda XD4066 is a CMOS quad bilateral analog switch (CD4066-type) in a DIP-14 package, operating from 3V to 15V with a typical on-resistance of 80Ω. Available for RFQ at Pacific Component Xchange.

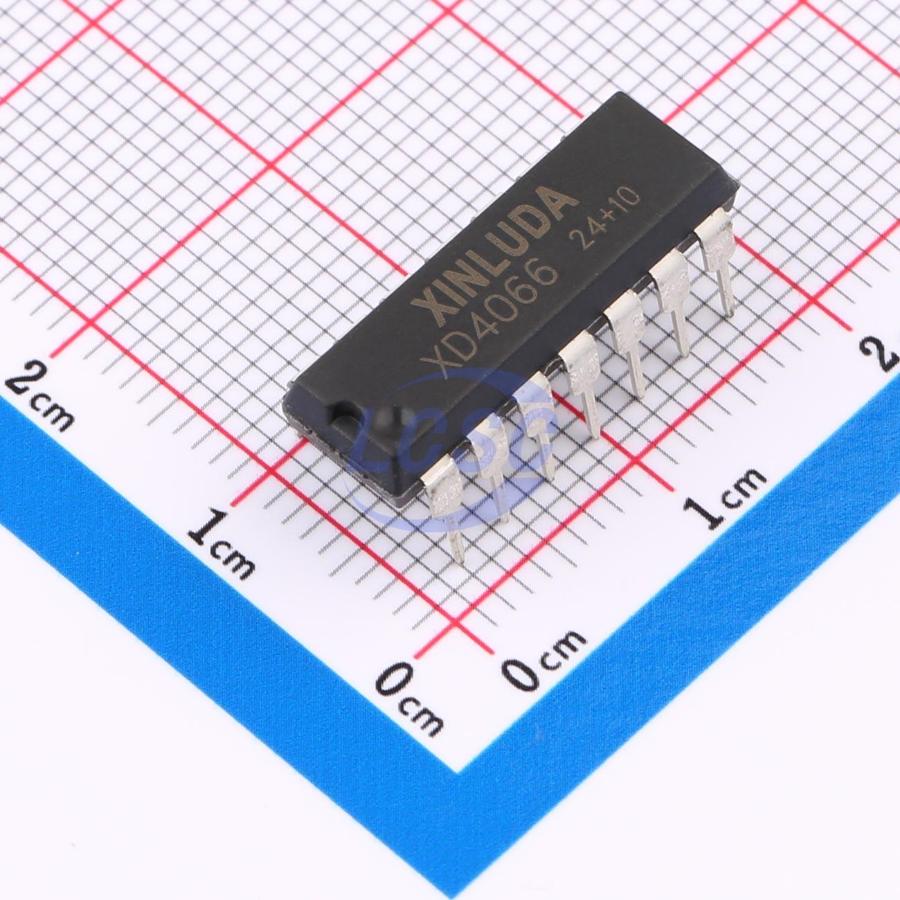

The Xinluda XD4066 is a CMOS quad bilateral analog switch housed in a through-hole DIP-14 package. It provides four independent single-pole, single-throw (SPST) analog switches, each capable of bidirectional signal flow and controlled by an active-HIGH enable input. As a functional equivalent to the industry-standard CD4066 family, the XD4066 is widely used as a drop-in replacement for parts such as CD4066BCN, CD4066BE, HEF4066BP and MC14066BCPG in analog and digital signal-routing designs.

With a wide supply range of 3V to 15V, low typical on-resistance, ESD-protected inputs and outputs, and fully static operation, the XD4066 is well suited to multiplexing, signal switching, and chopper/modulator applications across consumer, industrial and instrumentation systems.

Key Features

• Four single-pole, single-throw (SPST) bidirectional analog switches (4 channels)
• CMOS quad bilateral switch, CD4066-type functional equivalent
• Wide supply voltage range: 3V to 15V
• Typical on-resistance (R_ON): 80Ω
• Active-HIGH enable control per switch
• ESD protection on inputs and outputs
• Fully static operation with standardized symmetrical output characteristics
• Operating temperature range: -40℃ to +125℃
• Through-hole DIP-14 (PDIP-14) package

Applications

• Analog and digital signal multiplexing / demultiplexing
• Signal gating and routing
• Chopper and modulator/demodulator circuits
• Sample-and-hold and analog signal switching
• Audio and instrumentation signal paths
• General-purpose 4000-series logic replacement designs

Why Source XD4066 from Pacific Component Xchange

The Xinluda XD4066 is a hard-to-find part with little or no authorized-distributor availability. Pacific Component Xchange specializes in sourcing scarce, end-of-life and allocation-constrained power-management ICs, analog switches and optocouplers for buyers who cannot find stock through traditional channels.

Every order is backed by our authenticity and quality-assurance commitment, and we ship globally to support production lines, prototype builds and last-time-buy requirements. Because the XD4066 is offered on a request-for-quote basis, our team can confirm current availability, lead time and pricing tailored to your quantity. Contact Pacific Component Xchange today to request a quote for the XD4066.
