XD358 – Operational Amplifier – Xinluda

The Xinluda XD358 is a dual general-purpose operational amplifier in a DIP-8 package, designed as a drop-in equivalent to the industry-standard LM358. Available for RFQ at Pacific Component Xchange.

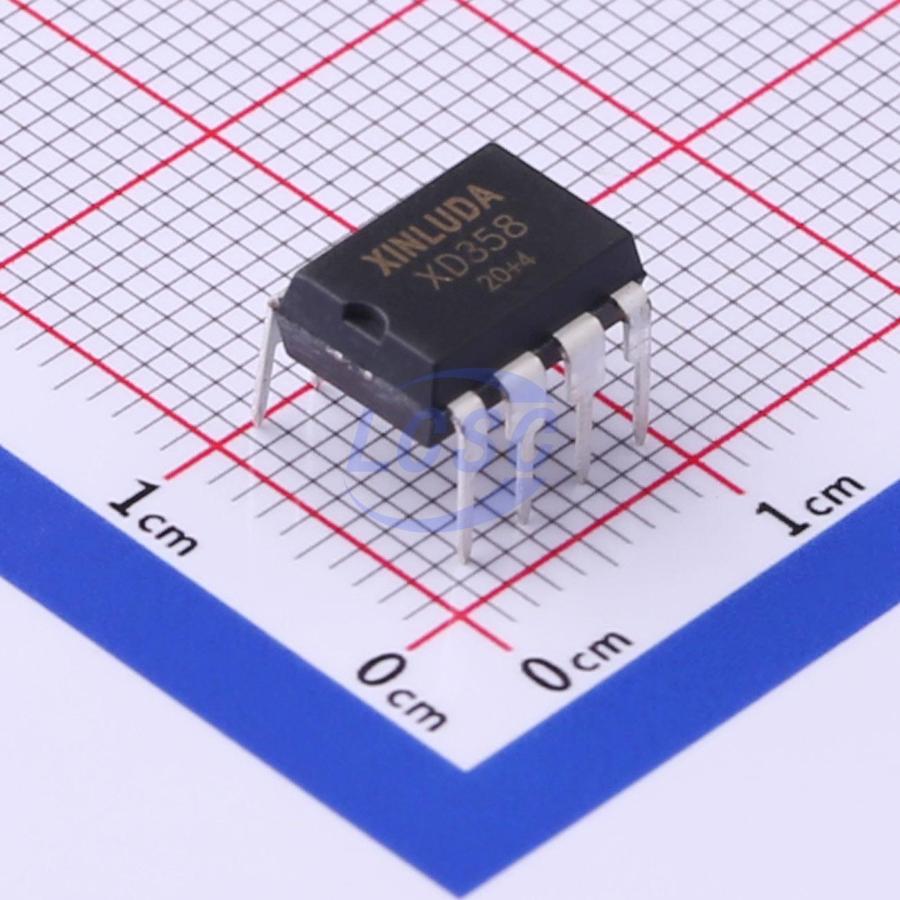

The Xinluda XD358 is a dual general-purpose operational amplifier supplied in a through-hole DIP-8 package. Functionally equivalent to the industry-standard LM358, the XD358 integrates two independent high-gain op-amps with internal frequency compensation, enabling reliable single-supply or dual-supply operation across a wide voltage range. It is a cost-effective workhorse amplifier for signal conditioning, filtering, and general analog tasks in consumer, industrial, and power-management designs.

Key Features

• Dual (2-channel) operational amplifier
• Single-supply operation from 3 V to 32 V; dual-supply operation up to ±16 V
• Internally compensated for unity-gain stability
• Slew rate of 0.6 V/µs (600 V/ms)
• Input offset voltage of 7 mV with 9 µV/°C drift
• Input bias current of 50 nA; input offset current of 5 nA
• Output current capability up to 40 mA
• Quiescent supply current of 700 µA
• Common-mode rejection ratio of 85 dB
• Operating temperature range of -40 °C to +85 °C
• Drop-in equivalent for LM358N / LM358P-class devices
• Through-hole DIP-8 package

Applications

• Battery chargers and power-supply control loops
• Active filters and signal-conditioning stages
• Sensor amplification and transducer interfaces
• Cordless telephones and consumer electronics
• Switching power supplies and DC-DC feedback networks
• General-purpose analog buffering and comparison

Why Source XD358 from Pacific Component Xchange

The XD358 is a Xinluda-branded device with limited authorized-distributor coverage in North America and the EU, which can make it difficult to procure for production runs or legacy builds. As an independent distributor specializing in hard-to-find power-management ICs and analog components, Pacific Component Xchange helps engineers and buyers secure the XD358 even when mainstream channels show no stock. We focus on authenticity, traceability, and dependable global shipping so you get the right part on schedule.

Need the XD358 or a tested cross-reference such as the LM358? Request a quote (RFQ) from Pacific Component Xchange and our sourcing team will respond with availability, lead time, and pricing for your required quantity. We routinely support obsolete, end-of-life, and allocation-constrained components for customers worldwide.
